Unofficial File parts/3137.dat
Part Attributes:
File Header:

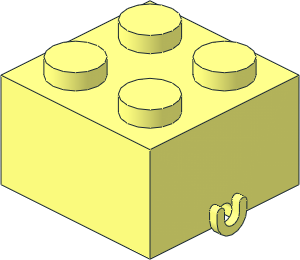

0 Brick 2 x 2 with Axle Brackets
0 Name: 3137.dat
0 Author: James Jessiman
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1999-05-17 [PTadmin] Official Update 1999-03
0 !HISTORY 2004-06-06 [nielsk] BFC'd and axle gap added
0 !HISTORY 2005-12-28 [PTadmin] Official Update 2005-01
0 !HISTORY 2007-06-24 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2018-11-24 [cwdee] Update description to align with 422
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
0 !HISTORY 2025-03-21 [Blechtaler] small rework
Show contents
1 16 0 24 0 20 0 0 0 -24 0 0 0 20 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 24 0 16 0 0 0 -20 0 0 0 16 box3u2p.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug-2x2.dat
2 24 -20 24 20 -20 24 2
2 24 -16 24 2 -16 24 16
2 24 16 24 16 16 24 2
2 24 20 24 2 20 24 20
2 24 -20 24 -20 -20 24 -2
2 24 -16 24 -2 -16 24 -16
2 24 16 24 -16 16 24 -2
2 24 20 24 -2 20 24 -20
4 16 20 24 20 16 24 16 -16 24 16 -20 24 20
4 16 -20 24 -20 -16 24 -16 16 24 -16 20 24 -20
4 16 20 24 2 16 24 2 16 24 16 20 24 20
4 16 -20 24 20 -16 24 16 -16 24 2 -20 24 2
4 16 20 24 -20 16 24 -16 16 24 -2 20 24 -2
4 16 -20 24 -2 -16 24 -2 -16 24 -16 -20 24 -20
4 16 16 24 2 16 20 2 16 4 16 16 24 16
4 16 -16 24 16 -16 4 16 -16 20 2 -16 24 2
4 16 16 24 -16 16 4 -16 16 20 -2 16 24 -2
4 16 -16 24 -2 -16 20 -2 -16 4 -16 -16 24 -16
4 16 16 4 16 16 20 2 16 20 -2 16 4 -16
4 16 -16 4 -16 -16 20 -2 -16 20 2 -16 4 16
4 16 20 24 20 20 0 20 20 20 2 20 24 2
4 16 -20 24 2 -20 20 2 -20 0 20 -20 24 20
4 16 20 24 -2 20 20 -2 20 0 -20 20 24 -20
4 16 -20 24 -20 -20 0 -20 -20 20 -2 -20 24 -2
4 16 20 0 -20 20 20 -2 20 20 2 20 0 20
4 16 -20 0 20 -20 20 2 -20 20 -2 -20 0 -20
0 // Brackets
1 16 16 22 0 0 1 0 0 0 -2 2 0 0 2-4ndis.dat
1 16 -16 22 0 0 -1 0 0 0 -2 2 0 0 2-4ndis.dat
1 16 20 22 0 0 -1 0 0 0 -2 2 0 0 2-4ndis.dat
1 16 -20 22 0 0 1 0 0 0 -2 2 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 20 22 0 0 -4 0 0 0 -2 2 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 -20 22 0 0 4 0 0 0 -2 2 0 0 2-4cylo.dat
1 16 18 23 2 -2 0 0 0 0 1 0 1 0 rect3.dat
1 16 18 23 -2 2 0 0 0 0 1 0 -1 0 rect3.dat
1 16 -18 23 2 -2 0 0 0 0 1 0 1 0 rect3.dat
1 16 -18 23 -2 2 0 0 0 0 1 0 -1 0 rect3.dat
1 16 20 20 3 0 2 0 0 0 -1 1 0 0 2-4cylo.dat
1 16 -20 20 3 0 -2 0 0 0 -1 1 0 0 2-4cylo.dat
1 16 20 20 -3 0 2 0 0 0 -1 1 0 0 2-4cylo.dat
1 16 -20 20 -3 0 -2 0 0 0 -1 1 0 0 2-4cylo.dat
1 16 22 20 3 0 -1 0 0 0 -1 1 0 0 2-4chrd.dat
1 16 -22 20 3 0 1 0 0 0 -1 1 0 0 2-4chrd.dat
1 16 22 20 -3 0 -1 0 0 0 -1 1 0 0 2-4chrd.dat
1 16 -22 20 -3 0 1 0 0 0 -1 1 0 0 2-4chrd.dat
1 16 20 21 3 0 2 0 1 0 0 0 0 1 box3u8p.dat
1 16 20 21 -3 0 2 0 1 0 0 0 0 1 box3u8p.dat
1 16 -20 21 3 0 -2 0 1 0 0 0 0 1 box3u8p.dat
1 16 -20 21 -3 0 -2 0 1 0 0 0 0 1 box3u8p.dat
0 BFC INVERTNEXT
1 16 20 22 0 0 2 0 0 0 2 2 0 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 -20 22 0 0 -2 0 0 0 2 2 0 0 2-4cylo.dat
1 16 20 22 0 0 2 0 0 0 4 4 0 0 2-4cylo.dat
1 16 -20 22 0 0 -2 0 0 0 4 4 0 0 2-4cylo.dat
1 16 22 22 0 0 -1 0 0 0 2 2 0 0 2-4ring1.dat
1 16 20 22 0 0 1 0 0 0 2 2 0 0 2-4ring1.dat
1 16 -22 22 0 0 1 0 0 0 2 2 0 0 2-4ring1.dat
1 16 -20 22 0 0 -1 0 0 0 2 2 0 0 2-4ring1.dat
0 // antistud
1 16 0 24 0 0 0 8 0 -20 0 8 0 0 3-16cylo.dat
1 16 0 24 0 0 0 2 0 -1 0 2 0 0 3-16ring3.dat
0 BFC INVERTNEXT
1 16 0 24 0 0 0 6 0 -20 0 6 0 0 3-16cylo.dat
1 16 0 24 0 0 0 -8 0 -20 0 8 0 0 3-16cylo.dat
1 16 0 24 0 0 0 -2 0 -1 0 2 0 0 3-16ring3.dat
0 BFC INVERTNEXT
1 16 0 24 0 0 0 -6 0 -20 0 6 0 0 3-16cylo.dat
1 16 0 24 0 0 0 -8 0 -20 0 -8 0 0 3-16cylo.dat
1 16 0 24 0 0 0 -2 0 -1 0 -2 0 0 3-16ring3.dat
0 BFC INVERTNEXT
1 16 0 24 0 0 0 -6 0 -20 0 -6 0 0 3-16cylo.dat
1 16 0 24 0 0 0 8 0 -20 0 -8 0 0 3-16cylo.dat
1 16 0 24 0 0 0 2 0 -1 0 -2 0 0 3-16ring3.dat
0 BFC INVERTNEXT
1 16 0 24 0 0 0 6 0 -20 0 -6 0 0 3-16cylo.dat
1 16 8 22 0 0 -1 -.3977 -2 0 0 0 0 2 1-4ndis.dat
1 16 8 22 0 0 -1 -.3977 -2 0 0 0 0 -2 1-4ndis.dat
1 16 6 22 0 0 1 -.3977 -2 0 0 0 0 2 1-4ndis.dat
1 16 6 22 0 0 1 -.3977 -2 0 0 0 0 -2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 6 22 0 0 2 -.3977 -2 0 0 0 0 -2 1-4cylo.dat
0 BFC INVERTNEXT
1 16 6 22 0 0 2 -.3977 -2 0 0 0 0 2 1-4cylo.dat
1 16 6.6023 23 2 1 0 0 0 0 1 0 1 0 rect3.dat
1 16 6.6023 23 -2 1 0 0 0 0 1 0 -1 0 rect3.dat
2 24 7.3912 24 3.0616 7.6023 24 2
2 24 7.3912 24 -3.0616 7.6023 24 -2
2 24 5.5434 24 2.2962 5.6023 24 2
2 24 5.5434 24 -2.2962 5.6023 24 -2
4 16 7.3912 4 3.0616 8 4 0 8 20 0 7.6023 20 2
4 16 7.3912 24 3.0616 7.3912 4 3.0616 7.6023 20 2 7.6023 22 2
3 16 7.3912 24 3.0616 7.6023 22 2 7.6023 24 2
4 16 5.5434 24 2.2962 7.3912 24 3.0616 7.6023 24 2 5.6023 24 2
3 16 5.5434 24 2.2962 5.6023 24 2 5.6023 22 2
4 16 5.5434 4 2.2962 5.5434 24 2.2962 5.6023 22 2 5.6023 20 2
4 16 5.5434 4 2.2962 5.6023 20 2 6 20 0 6 4 0
4 16 5.5434 4 -2.2962 6 4 0 6 20 0 5.6023 20 -2
4 16 5.5434 4 -2.2962 5.6023 20 -2 5.6023 22 -2 5.5434 24 -2.2962
3 16 5.5434 24 -2.2962 5.6023 22 -2 5.6023 24 -2
4 16 5.5434 24 -2.2962 5.6023 24 -2 7.6023 24 -2 7.3912 24 -3.0616
3 16 7.3912 24 -3.0616 7.6023 24 -2 7.6023 22 -2
4 16 7.6023 20 -2 7.3912 4 -3.0616 7.3912 24 -3.0616 7.6023 22 -2
4 16 7.3912 4 -3.0616 7.6023 20 -2 8 20 0 8 4 0
1 16 -8 22 0 0 1 .3977 -2 0 0 0 0 2 1-4ndis.dat
1 16 -8 22 0 0 1 .3977 -2 0 0 0 0 -2 1-4ndis.dat
1 16 -6 22 0 0 -1 .3977 -2 0 0 0 0 2 1-4ndis.dat
1 16 -6 22 0 0 -1 .3977 -2 0 0 0 0 -2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -6 22 0 0 -2 .3977 -2 0 0 0 0 -2 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -6 22 0 0 -2 .3977 -2 0 0 0 0 2 1-4cylo.dat
1 16 -6.6023 23 2 1 0 0 0 0 1 0 1 0 rect3.dat
1 16 -6.6023 23 -2 1 0 0 0 0 1 0 -1 0 rect3.dat
2 24 -7.6023 24 2 -7.3912 24 3.0616
2 24 -7.6023 24 -2 -7.3912 24 -3.0616
2 24 -5.6023 24 2 -5.5434 24 2.2962
2 24 -5.6023 24 -2 -5.5434 24 -2.2962
4 16 -8 20 0 -8 4 0 -7.3912 4 3.0616 -7.6023 20 2
4 16 -7.6023 20 2 -7.3912 4 3.0616 -7.3912 24 3.0616 -7.6023 22 2
3 16 -7.6023 22 2 -7.3912 24 3.0616 -7.6023 24 2
4 16 -7.6023 24 2 -7.3912 24 3.0616 -5.5434 24 2.2962 -5.6023 24 2
3 16 -5.6023 24 2 -5.5434 24 2.2962 -5.6023 22 2
4 16 -5.6023 22 2 -5.5434 24 2.2962 -5.5434 4 2.2962 -5.6023 20 2
4 16 -6 20 0 -5.6023 20 2 -5.5434 4 2.2962 -6 4 0
4 16 -6 20 0 -6 4 0 -5.5434 4 -2.2962 -5.6023 20 -2
4 16 -5.6023 22 -2 -5.6023 20 -2 -5.5434 4 -2.2962 -5.5434 24 -2.2962
3 16 -5.6023 22 -2 -5.5434 24 -2.2962 -5.6023 24 -2
4 16 -7.6023 24 -2 -5.6023 24 -2 -5.5434 24 -2.2962 -7.3912 24 -3.0616
3 16 -7.6023 24 -2 -7.3912 24 -3.0616 -7.6023 22 -2
4 16 -7.3912 24 -3.0616 -7.3912 4 -3.0616 -7.6023 20 -2 -7.6023 22 -2
4 16 -8 20 0 -7.6023 20 -2 -7.3912 4 -3.0616 -8 4 0
5 24 6 20 0 6 4 0 5.5434 4 2.2962 5.6023 20 -2
5 24 -8 20 0 -8 4 0 -7.6023 20 -2 -7.3912 4 3.0616
5 24 8 4 0 8 20 0 7.6023 20 2 7.3912 4 -3.0616
5 24 -6 20 0 -6 4 0 -5.6023 20 2 -5.5434 4 -2.2962
2 24 7.3912 4 -3.0616 8 4 0
2 24 8 4 0 7.3912 4 3.0616
2 24 5.5434 4 -2.2962 6 4 0
2 24 6 4 0 5.5434 4 2.2962
2 24 -5.5434 4 -2.2962 -6 4 0
2 24 -6 4 0 -5.5434 4 2.2962
2 24 -7.3912 4 -3.0616 -8 4 0
2 24 -8 4 0 -7.3912 4 3.0616
5 24 7.3912 4 -3.0616 7.3912 24 -3.0616 5.6568 4 -5.6568 8 4 0
5 24 7.3912 4 3.0616 7.3912 24 3.0616 5.6568 4 5.6568 8 4 0
5 24 5.5434 4 -2.2962 5.5434 24 -2.2962 4.2426 4 -4.2426 6 4 0
5 24 5.5434 4 2.2962 5.5434 24 2.2962 4.2426 4 4.2426 6 4 0
5 24 -5.5434 4 -2.2962 -5.5434 24 -2.2962 -4.2426 4 -4.2426 -6 4 0
5 24 -5.5434 4 2.2962 -5.5434 24 2.2962 -4.2426 4 4.2426 -6 4 0
5 24 -7.3912 4 -3.0616 -7.3912 24 -3.0616 -5.6568 4 -5.6568 -8 4 0
5 24 -7.3912 4 3.0616 -7.3912 24 3.0616 -5.6568 4 5.6568 -8 4 0
