Official File parts/3519.dat
Part Attributes:
File Header:

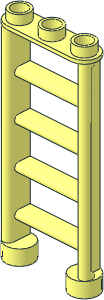

0 Duplo Ladder 1 x 3 x 5 with 3 Studs on Top
0 Name: 3519.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
0 // top
1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-1x3.dat
1 16 -40 2 0 0 80 0 -2 0 0 0 0 16 box4o8a.dat
0 // vertical
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3519s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\3519s01.dat
0 // horizontal
1 16 -41 5 0 0 82 0 5 0 0 0 0 -5 1-4cylo.dat
1 16 0 4.5 -5 41 0 0 0 0 -.5 0 1 0 rect3.dat
0 BFC INVERTNEXT
1 16 -41 5.5 0 0 82 0 1.5 0 0 0 0 -1.5 8\2-4cylo.dat
1 16 -41 8.5 0 0 82 0 1.5 0 0 0 0 1.5 2-4cylo.dat
1 16 -41 53 0 0 82 0 5 0 0 0 0 -5 2-4cylo.dat
1 16 0 50 0 41 0 0 0 0 2 0 14 0 box3u4a.dat
0 BFC INVERTNEXT
1 16 -41 53.5 0 0 82 0 1.5 0 0 0 0 -1.5 8\2-4cylo.dat
1 16 -41 56.5 0 0 82 0 1.5 0 0 0 0 1.5 2-4cylo.dat
1 16 -41 101 0 0 82 0 5 0 0 0 0 -5 2-4cylo.dat
1 16 0 98 0 41 0 0 0 0 2 0 14 0 box3u4a.dat
0 BFC INVERTNEXT
1 16 -41 101.5 0 0 82 0 1.5 0 0 0 0 -1.5 8\2-4cylo.dat
1 16 -41 104.5 0 0 82 0 1.5 0 0 0 0 1.5 2-4cylo.dat
1 16 -41 149 0 0 82 0 5 0 0 0 0 -5 2-4cylo.dat
1 16 0 146 0 41 0 0 0 0 2 0 14 0 box3u4a.dat
0 BFC INVERTNEXT
1 16 -41 149.5 0 0 82 0 1.5 0 0 0 0 -1.5 8\2-4cylo.dat
1 16 -41 152.5 0 0 82 0 1.5 0 0 0 0 1.5 2-4cylo.dat
1 16 -41 197 0 0 82 0 5 0 0 0 0 -5 2-4cylo.dat
1 16 0 194 0 41 0 0 0 0 2 0 14 0 box3u4a.dat
0 BFC INVERTNEXT
1 16 -41 197.5 0 0 82 0 1.5 0 0 0 0 -1.5 8\2-4cylo.dat
1 16 -41 200.5 0 0 82 0 1.5 0 0 0 0 1.5 2-4cylo.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-03-21 17:06:00
2025-03-22 16:28:02
Excellent suggestion! Added the notches on the sides as suggested. Thanks to Gerald Lasser for providing the code.
* The column should be subbed and used twice.
* A simple 2-4chrd will do the job:
2 273 40 4 -16 40 4 16
* A simple 2-4chrd will do the job:
2 273 40 4 -16 40 4 16
Great suggestions!
Subbed column as suggested. Replaced many small elements with one large 2-4 chord as suggested. (Didn't know it was allowed)
Subbed column as suggested. Replaced many small elements with one large 2-4 chord as suggested. (Didn't know it was allowed)
Allowed, but now you have some overlapping surfaces.
The rungs look identical. Another subfile?
The rungs look identical. Another subfile?
2025-07-19 08:50:06
rungs are identical, but simple (4 prims each)...
as long they arent used somewhere else too, no need to subpart.
as long they arent used somewhere else too, no need to subpart.
Removed surface overlaps near top of ladder.
2025-07-21 10:24:35
2025-07-21 10:53:39
2025-07-25 15:43:59
2025-07-27 01:51:17
Release 2025-07
