Unofficial File parts/36.dat
Part Attributes:
File Header:

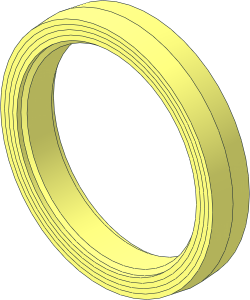

0 Tyre 7/ 50 x 36
0 Name: 36.dat
0 Author: James Jessiman
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2003-06-08 [jriley] BFC compliant using circular primitives
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2025-03-22 [Blechtaler] added BL number to differentiate
Show contents
1 16 0 0 9 46 0 0 0 0 46 0 1 0 48\4-4edge.dat
1 16 0 0 -9 46 0 0 0 0 46 0 1 0 48\4-4edge.dat
1 16 0 0 9 48 0 0 0 0 48 0 1 0 48\4-4edge.dat
1 16 0 0 -9 48 0 0 0 0 48 0 1 0 48\4-4edge.dat
1 16 0 0 9 50 0 0 0 0 50 0 1 0 48\4-4edge.dat
1 16 0 0 -9 50 0 0 0 0 50 0 1 0 48\4-4edge.dat
1 16 0 0 9 52 0 0 0 0 52 0 1 0 48\4-4edge.dat
1 16 0 0 -9 52 0 0 0 0 52 0 1 0 48\4-4edge.dat
1 16 0 0 0 53 0 0 0 0 53 0 1 0 48\4-4edge.dat
1 16 0 0 9 4 0 0 0 0 4 0 -1 0 48\4-4ring11.dat
1 16 0 0 -9 4 0 0 0 0 4 0 1 0 48\4-4ring11.dat
1 16 0 0 9 4 0 0 0 0 4 0 -1 0 48\4-4ring12.dat
1 16 0 0 -9 4 0 0 0 0 4 0 1 0 48\4-4ring12.dat
1 16 0 0 0 1 0 0 0 0 1 0 9 0 48\4-4con52.dat
1 16 0 0 0 1 0 0 0 0 1 0 -9 0 48\4-4con52.dat
0 BFC INVERTNEXT
1 16 0 0 -6 42 0 0 0 0 42 0 12 0 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 7 2 0 0 0 0 2 0 -1 0 48\4-4con21.dat
0 BFC INVERTNEXT
1 16 0 0 -7 2 0 0 0 0 2 0 1 0 48\4-4con21.dat
0 BFC INVERTNEXT
1 16 0 0 7 44 0 0 0 0 44 0 2 0 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -7 44 0 0 0 0 44 0 -2 0 48\4-4cylo.dat
Status:
Needs 1 More Vote (CF)
Current Votes:
| User | Vote |
|---|---|
| MagFors | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
What do you mean by "added BL number" ?
How is u9194.dat different from 36.dat, making it a unique part?
How is u9194.dat different from 36.dat, making it a unique part?
2025-03-22 13:37:35
I thought I added the BL number manually, the link is now wrong, should be 36h
https://www.bricklink.com/v2/catalog/catalogitem.page?P=36h#T=C
there are different variants of the big tyre...
like the small tyre, the big tyre has:
-solid grey rubber (u9193), flat tread
-solid black rubber (u9194), sloped with center seam
-air tire (36.dat) -> also a bit smaller than the solids
https://www.bricklink.com/v2/catalog/catalogitem.page?P=36h#T=C
there are different variants of the big tyre...
like the small tyre, the big tyre has:
-solid grey rubber (u9193), flat tread
-solid black rubber (u9194), sloped with center seam
-air tire (36.dat) -> also a bit smaller than the solids
2025-03-22 13:38:23
Header Edits
keywords:
to
BrickLink 36h
Header Edits
keywords:
to
Bricklink 36h, Brickowl 601769, Rebrickable 36h
more Keywords
2025-03-22 13:43:33
hm still wrong links...
2025-03-22 13:45:12
should the 36h get uploaded separately? or do these still count as the solid ones?
2025-03-22 17:00:50
As I see it at BL there are two versions. One with a flat tread, and one with a rounded tread surface.
The tyre with a rounded tread are made in two versions, solid and hollow. These have no external difference making it unnecessary to include both in our library.
Your new part u9194 is bigger than the old file 36.dat. This makes it necessary to obsolete the old 36.dat.
But I don't know if they are different, or the same part. Is 36.dat incorrect?
OR, u9194.dat is a unnecessary duplication of 36.dat
The tyre with a rounded tread are made in two versions, solid and hollow. These have no external difference making it unnecessary to include both in our library.
Your new part u9194 is bigger than the old file 36.dat. This makes it necessary to obsolete the old 36.dat.
But I don't know if they are different, or the same part. Is 36.dat incorrect?
OR, u9194.dat is a unnecessary duplication of 36.dat
2025-03-22 17:17:44
there are three versions, the air tire is smaller than the solid one (can confirm that, i have all 3)
but it also could be that the air tires are just old, and the rubber isnt flexible enough anymore...
the air tire matches the old one quite well in dimensions, its just half a mm.
grey and solid black are 43.2mm, the air tires are 42-42.5mm (varies)
the same is at the samll tyres, with an additional foam version there
but it also could be that the air tires are just old, and the rubber isnt flexible enough anymore...
the air tire matches the old one quite well in dimensions, its just half a mm.
grey and solid black are 43.2mm, the air tires are 42-42.5mm (varies)
the same is at the samll tyres, with an additional foam version there
2025-03-22 19:43:28
I don't think a (likely) difference of less than a millimeter warrants a brand new part or the obsolescence of any old parts.
2025-03-22 19:43:50
Especially for a part as old as this one.
2026-01-24 12:31:36
2026-01-24 12:35:33
Creative Commons Attribution License information
This part is copyright © James Jessiman
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
John Riley,
Orion Pobursky,
Rene Rechthaler,
(also some small rework, mostly cyli->cylo and using 4-4 prims)
