File Detail parts/2609dc01.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/2609dc01.dat

Part Attributes: Base Part: 2609d.dat

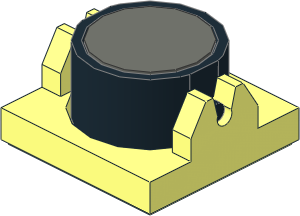

Magnet Holder Tile 2 x 2 with Short Arms with Black Magnet

File Header:

0 Magnet Holder Tile  2 x  2 with Short Arms with Black Magnet
0 Name: 2609dc01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Shortcut UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP magnet connection at 0 -15 0

0 BFC CERTIFY CCW

0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 2609d.dat
1 0 0 -6.25 0 1 0 0 0 0 1 0 1 0 2959bc01.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-03-22 14:49:14

shortcut with magnet (Magnet casing is always black)

Rene Rechthaler [Blechtaler]

made the following comment.

2025-03-22 14:50:49

as of now the magnet pins collide with the arms (the clip notch is wrong)
total height of 23LDU is correct

Rene Rechthaler [Blechtaler]

made the following comment.

2025-03-24 19:32:48

can this now also get renumbered to 2609dc01?

Magnus Forsberg [MagFors]

renamed the part.

2025-03-26 22:25:36

"parts/2609ac01.dat" to "parts/2609dc01.dat"

Rene Rechthaler [Blechtaler]

made the following comment.

2025-03-26 22:34:45

do we need a !Help for the magnet "connect" position?

Magnus Forsberg [MagFors]

made the following comment.

2025-03-26 22:58:42

Seams to be "out of system". Top magnet surface is at -15 ldu. Is that correct?

Rene Rechthaler [Blechtaler]

made the following comment.

2025-03-26 23:15:13

yes, total height of the assembly is 9,2mm -> 23 LDU (and the bottom has 8)
i guess that is because the magnet itself is an external part, which doesnt fit into the grid...

Rene Rechthaler [Blechtaler]

edited the part header.

2025-05-13 15:31:30

Header Edits

help:
0 !HELP
to
0 !HELP magnet connection at 0 -15 0
history:

to
