File Detail parts/98215.dat

Official File parts/98215.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

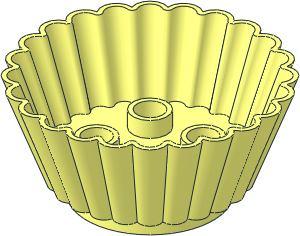

0 Duplo Muffin Cup with  2 x  2 Studs
0 Name: 98215.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Cupcake

0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07

Show contents

0 // studs inside
1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat

0 // bottom cylinders
0 BFC INVERTNEXT
1 16 0 4 0 40.3 0 0 0 20 0 0 0 40.3 48\4-4cylo.dat
1 16 0 24 0 4.03 0 0 0 -1 0 0 0 4.03 48\4-4ring10.dat
1 16 0 4 0 44.33 0 0 0 20 0 0 0 44.33 48\4-4cylo.dat
1 16 0 4 0 -1 0 0 0 -5 0 0 0 1 stud8.dat

0 // chards
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\98215s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\98215s01.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 s\98215s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\98215s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\98215s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\98215s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\98215s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\98215s01.dat

1 16 0 0 0 .86603 0 .5 0 1 0 -.5 0 .86603 s\98215s01.dat
1 16 0 0 0 .86603 0 .5 0 1 0 .5 0 -.86603 s\98215s01.dat
1 16 0 0 0 -.86603 0 -.5 0 1 0 -.5 0 .86603 s\98215s01.dat
1 16 0 0 0 -.86603 0 -.5 0 1 0 .5 0 -.86603 s\98215s01.dat
1 16 0 0 0 .86603 0 -.5 0 1 0 .5 0 .86603 s\98215s01.dat
1 16 0 0 0 .86603 0 -.5 0 1 0 -.5 0 -.86603 s\98215s01.dat
1 16 0 0 0 -.86603 0 .5 0 1 0 .5 0 .86603 s\98215s01.dat
1 16 0 0 0 -.86603 0 .5 0 1 0 -.5 0 -.86603 s\98215s01.dat

1 16 0 0 0 -.5 0 .86603 0 1 0 .86603 0 .5 s\98215s01.dat
1 16 0 0 0 .5 0 -.86603 0 1 0 .86603 0 .5 s\98215s01.dat
1 16 0 0 0 -.5 0 .86603 0 1 0 -.86603 0 -.5 s\98215s01.dat
1 16 0 0 0 .5 0 -.86603 0 1 0 -.86603 0 -.5 s\98215s01.dat
1 16 0 0 0 .5 0 .86603 0 1 0 .86603 0 -.5 s\98215s01.dat
1 16 0 0 0 .5 0 .86603 0 1 0 -.86603 0 .5 s\98215s01.dat
1 16 0 0 0 -.5 0 -.86603 0 1 0 .86603 0 -.5 s\98215s01.dat
1 16 0 0 0 -.5 0 -.86603 0 1 0 -.86603 0 .5 s\98215s01.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-03-23 17:14:23

This part uses many rotated and tilted primitives in 24-fold symmetry, which requires increased precision in both coordinates and scaling factors. Any less than current, will cause increased rendering problems. The subfile could be inlined 24 times with much increased number of lines. However, this might allow a reduction in precision of coordinates and scaling factors.
The two holes within the studs are not modeled.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-06-13 11:24:59

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-06-13 23:51:54

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-07-19 05:10:12

Thanks Rene for the great suggestion!
Inlined edges and chords as suggested. Made symmetric fragment from 0° to 15°. This removed the observed gaps.
Split inside rectangles to avoid T-junctions as suggested. Removed superfluous comment lines originating from PrimGen as suggested.

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-07-19 17:41:30

Updated underside cylinder diameters. Physical part is 87 LDU in diameter on the outside and quite accurately 80 on the inside. The wall thickness is slightly narrower on the physical part compared to the 4 LDU modeled.

Willy Tschager [Holly-Wood]

made the following comment.

2025-07-19 18:26:50

* The inner ring:

1 16 0 4 0 40 0 0 0 20 0 0 0 40 48\4-4cylo.dat

collides with the studs:

1 47 0 24 0 1 0 0 0 1 0 0 0 1 14721.dat

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-07-19 20:11:34

Reverted back to (40.3, 4.03, 44.33) as this avoids the collision with studs even if it is out of system.

Magnus Forsberg [MagFors]

made the following comment.

2025-07-19 20:34:03

Isn't "Cupcake" and "Muffin" the same thing?
