Unofficial File parts/4568120b.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release
External site data provided by Rebrickable.com

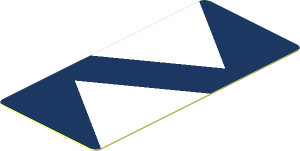

Sticker 1.8 x 0.9 with Two White Triangles on Dark Blue Background
0 Sticker  1.8 x  0.9 with Two White Triangles on Dark Blue Background
0 Name: 4568120b.dat
0 Author: Gabriel Läufer [Dr.Bricktacular]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Sticker
0 !KEYWORDS Bricklink 8086stk01, Brickowl 313704, Droid Tri-Fighter
0 !KEYWORDS Rebrickable 88526, set 8086, Star Wars The Clone Wars
Show file code:
0 // Sticker-Bottom
1 16 8.0 0 -18.0 1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
1 16 8.0 0 18.0 1 0 0 0 -1 0 0 0 1 1-4chrd.dat
1 16 -8.0 0 -18.0 -1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
1 16 -8.0 0 18.0 -1 0 0 0 -1 0 0 0 1 1-4chrd.dat
4 16 9.0 0 18.0 9.0 0 -18.0 8.0 0 -19.0 8.0 0 19.0
4 16 -9.0 0 18.0 -8.0 0 19.0 -8.0 0 -19.0 -9.0 0 -18.0
4 16 8.0 0 19.0 8.0 0 -19.0 -8.0 0 -19.0 -8.0 0 19.0

0 // Sticker-Side
1 16 8.0 -0.25 -18.0 1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat
1 16 8.0 -0.25 18.0 1 0 0 0 0.25 0 0 0 1 1-4cyli.dat
1 16 -8.0 -0.25 -18.0 -1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat
1 16 -8.0 -0.25 18.0 -1 0 0 0 0.25 0 0 0 1 1-4cyli.dat
4 16 9.0 0 18.0 9.0 -0.25 18.0 9.0 -0.25 -18.0 9.0 0 -18.0
4 16 -9.0 0 18.0 -9.0 0 -18.0 -9.0 -0.25 -18.0 -9.0 -0.25 18.0
4 16 -8.0 0 19.0 -8.0 -0.25 19.0 8.0 -0.25 19.0 8.0 0 19.0
4 16 -8.0 0 -19.0 8.0 0 -19.0 8.0 -0.25 -19.0 -8.0 -0.25 -19.0

0 // Sticker-Front
1 272 8 -0.25 18 1 0 0 0 1 0 0 0 1 1-4chrd.dat
1 272 8 -0.25 -18 1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 272 -8 -0.25 -18 -1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 272 -8 -0.25 18 -1 0 0 0 1 0 0 0 1 1-4chrd.dat
3 15 -9 -0.25 18 -9 -0.25 -2 5.8 -0.25 8
3 15 9 -0.25 2 -5.8 -0.25 -8 9 -0.25 -18
4 272 -8 -0.25 -19 8 -0.25 -19 9 -0.25 -18 -9 -0.25 -18
3 272 -5.8 -0.25 -8 -9 -0.25 -18 9 -0.25 -18
3 272 -9 -0.25 -2 -9 -0.25 -18 -5.8 -0.25 -8
4 272 -9 -0.25 -2 -5.8 -0.25 -8 9 -0.25 2 5.8 -0.25 8
4 272 5.8 -0.25 8 9 -0.25 2 9 -0.25 18 8 -0.25 19
4 272 -9 -0.25 18 5.8 -0.25 8 8 -0.25 19 -8 -0.25 19

Status

Not releaseable Errors Found (CHN) Errors Found (CHN)

Current Votes:

Hold
Magnus Forsberg [MagFors]
Certify
Takeshi Takahashi [RainbowDolphin]
This part has the following errors
  • Numbers cannot have trailing zeros (except one zero immediately after a decimal point)
    Line 14: 1 16 8.0 0 -18.0 1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
    Line 15: 1 16 8.0 0 18.0 1 0 0 0 -1 0 0 0 1 1-4chrd.dat
    Line 16: 1 16 -8.0 0 -18.0 -1 0 0 0 -1 0 0 0 -1 1-4chrd.dat
    Line 17: 1 16 -8.0 0 18.0 -1 0 0 0 -1 0 0 0 1 1-4chrd.dat
    Line 18: 4 16 9.0 0 18.0 9.0 0 -18.0 8.0 0 -19.0 8.0 0 19.0
    Line 19: 4 16 -9.0 0 18.0 -8.0 0 19.0 -8.0 0 -19.0 -9.0 0 -18.0
    Line 20: 4 16 8.0 0 19.0 8.0 0 -19.0 -8.0 0 -19.0 -8.0 0 19.0
    Line 23: 1 16 8.0 -0.25 -18.0 1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat
    Line 24: 1 16 8.0 -0.25 18.0 1 0 0 0 0.25 0 0 0 1 1-4cyli.dat
    Line 25: 1 16 -8.0 -0.25 -18.0 -1 0 0 0 0.25 0 0 0 -1 1-4cyli.dat
    Line 26: 1 16 -8.0 -0.25 18.0 -1 0 0 0 0.25 0 0 0 1 1-4cyli.dat
    Line 27: 4 16 9.0 0 18.0 9.0 -0.25 18.0 9.0 -0.25 -18.0 9.0 0 -18.0
    Line 28: 4 16 -9.0 0 18.0 -9.0 0 -18.0 -9.0 -0.25 -18.0 -9.0 -0.25 18.0
    Line 29: 4 16 -8.0 0 19.0 -8.0 -0.25 19.0 8.0 -0.25 19.0 8.0 0 19.0
    Line 30: 4 16 -8.0 0 -19.0 8.0 0 -19.0 8.0 -0.25 -19.0 -8.0 -0.25 -19.0
    Line :

Part Dependencies

Official parents and subparts

Part Events

Gabriel Läufer [Dr.Bricktacular]
Part Reviewer
initially submitted the part.
2025-03-23 18:29:28
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify
2025-05-05 20:56:11
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold
2026-07-28 21:07:48
Sticker bottom missing and the corner radious is wrong.
