File Detail parts/4911.dat

Unofficial File parts/4911.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

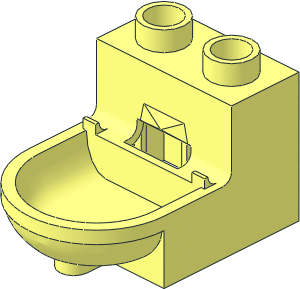

0 Duplo Toilet
0 Name: 4911.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP Seat 4912 is to be placed with centre at y=32 z=-25
0 !HELP Horizontal with 1 16 0 32 -25 1 0 0 0 1 0 0 0 1 4912.dat
0 !HELP Perpendicular with 1 16 0 32 -25 1 0 0 0 0 1 0 -1 0 4912.dat

0 BFC CERTIFY CCW

0 !KEYWORDS Furniture
