Official File parts/45141.dat
Part Attributes:
File Header:

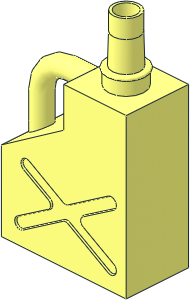

0 Duplo Fuel Canister 1 x 2 x 3
0 Name: 45141.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS utensil
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
0 // outside
1 16 -40 -24 0 0 1 0 24 0 0 0 0 20 rect.dat
1 16 40 -48 0 0 -1 0 48 0 0 0 0 20 rect.dat
1 16 0 -84 0 0 1 0 12 0 0 0 0 20 rect.dat
4 16 -40 -48 20 -40 -48 -20 0 -72 -20 0 -72 20
4 16 -36 0 16 -36 0 -16 -40 0 -20 -40 0 20
4 16 36 0 -16 36 0 16 40 0 20 40 0 -20
1 16 20 -96 0 0 0 11 0 1 0 11 0 0 4-4ndis.dat
4 16 40 -96 20 31 -96 11 31 -96 0 40 -96 -20
3 16 31 -96 -11 40 -96 -20 31 -96 0
4 16 0 -96 -20 9 -96 0 9 -96 11 0 -96 20
3 16 0 -96 -20 9 -96 -11 9 -96 0
0 // Nozzle
1 16 20 -96 0 0 0 11 0 -8 0 11 0 0 4-4cylo.dat
1 16 20 -105 0 0 0 11 0 11 0 11 0 0 t04o0909.dat
1 16 20 -105 0 0 0 -11 0 11 0 11 0 0 t04o0909.dat
1 16 20 -105 0 0 0 -11 0 11 0 -11 0 0 t04o0909.dat
1 16 20 -105 0 0 0 11 0 11 0 -11 0 0 t04o0909.dat
1 16 20 -105 0 0 0 11 0 -11 0 11 0 0 t04o0909.dat
1 16 20 -105 0 0 0 -11 0 -11 0 11 0 0 t04o0909.dat
1 16 20 -105 0 0 0 -11 0 -11 0 -11 0 0 t04o0909.dat
1 16 20 -105 0 0 0 11 0 -11 0 -11 0 0 t04o0909.dat
1 16 20 -106 0 2.75 0 0 0 1 0 0 0 2.75 4-4ring3.dat
1 16 20 -106 0 8.5 0 0 0 1 0 0 0 8.5 4-4edge.dat
1 16 20 -106 0 .5 0 0 0 -18 0 0 0 .5 4-4con16.dat
1 16 20 -135 0 8 0 0 0 11 0 0 0 8 4-4cylo.dat
0 BFC INVERTNEXT
1 16 20 -135 0 6.4 0 0 0 8 0 0 0 6.4 4-4cylo.dat
1 16 20 -127 0 6.4 0 0 0 1 0 0 0 6.4 4-4disc.dat
1 16 20 -135 0 1.6 0 0 0 1 0 0 0 1.6 4-4ring4.dat
0 // Nozzle inside
0 BFC INVERTNEXT
1 16 20 -92 0 0 0 9 0 -8 0 9 0 0 4-4cylo.dat
1 16 20 -92 0 0 0 9 0 -1 0 9 0 0 4-4ndis.dat
4 16 29 -92 9 36 -92 15 36 -92 -15 29 -92 -9
4 16 4 -92 -15 4 -92 15 11 -92 9 11 -92 -9
0 BFC INVERTNEXT
1 16 20 -100 0 6 0 0 0 -22 0 0 0 6 4-4cylo.dat
1 16 20 -122 0 6 0 0 0 -1 0 0 0 6 4-4disc.dat
1 16 20 -100 0 0 0 3 0 -1 0 3 0 0 4-4ring2.dat
0 // handle
1 16 -16 -72 0 -18 0 0 0 0 -18 0 18 0 t04q3333.dat
1 16 -34 -55.2 0 6 0 0 0 -16.8 0 0 0 6 4-4cyli.dat
1 16 0 -90 0 0 -16 0 6 0 0 0 0 6 4-4cyli.dat
1 16 0 -90 0 0 1 0 6 0 0 0 0 6 4-4edge.dat
1 16 -34 -55.2 0 6 0 0 0 3.6 0 0 0 6 4-4cylse.dat
0 // embossed sides
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\45141s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\45141s01.dat
0 // inside
0 BFC INVERTNEXT
1 16 0 0 0 36 0 0 0 -6 0 0 0 16 box4o4a.dat
1 16 -16 -58 0 20 0 0 -12 -1 0 0 0 15 rect.dat
1 16 -34 -44.4 0 0 0 2 0 43.4 0 1.5 0 0 box4-1.dat
1 16 34 -92 0 0 0 -2 0 91 0 1.5 0 0 box4-1.dat
0 BFC INVERTNEXT
1 16 10.5 -78.2 0 0 0 -2.5 0 -9.8 0 4 0 0 box2-7.dat
1 16 13 -94 0 0 -1 0 0 0 6 4 0 0 rect.dat
1 16 -14 -55.2 0 22 0 0 -13.2 -1 0 0 0 4 rect.dat
1 16 4 -81 0 0 -1 0 0 0 -11 15 0 0 rect3.dat
1 16 -36 -28 0 0 -1 0 18 0 0 0 0 15 rect2p.dat
1 16 36 -51 0 0 1 0 41 0 0 0 0 15 rect2p.dat
4 16 36 -6 -16 36 -10 -15 36 -10 15 36 -6 16
4 16 -36 -10 15 -36 -10 -15 -36 -6 -16 -36 -6 16
1 16 0 -68.5 0 0 0 1.5 0 24 0 15 0 0 box3u2p.dat
2 24 -36 -42 -1.5 -32 -44.4 -1.5
2 24 -32 -44.4 1.5 -36 -42 1.5
2 24 1.5 -64.5 -4 1.5 -64.5 4
2 24 -1.5 -62.7 -4 -1.5 -62.7 4
2 24 36 -92 15 36 -92 -15
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-03-29 12:28:07
still think the inside step should be sloped (as of now it creates a big massive triangle)
should the tube ends get cut out (via ndis)?
should the tube ends get cut out (via ndis)?
Will improve the inside as requested.
2025-03-29 13:03:00
what is that wide box on the inside center for? there are no studs which are that long to reach it...
Completed inside as requested.
2025-03-29 22:04:40
The wide box at the bottom and the inside slope is a reinforcement associated with the handle. It goes from one attachment point to the other and then partially up the nozzle.
2025-03-30 07:36:11
I think many more surfaces could be moved to the subfile.
Using box prims is good, but sometimes they only add unnecessary vertices.
Using box prims is good, but sometimes they only add unnecessary vertices.
2025-03-30 08:40:32
yes, for example the sloped reinforcement box inside or the big one above the step, should be replaced with rects in the main part and quads in the subpart...
Changed the purpose of the subfile. Now representing a mirrored half of embossing and interior.
Header Edits
description:
Duplo Fuel Canister 1 x 2 x 3
to
Duplo Fuel Canister 1 x 2 x 3
Added spaces in description
