Unofficial File parts/s/6567s01.dat
File Header:

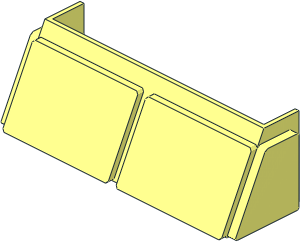

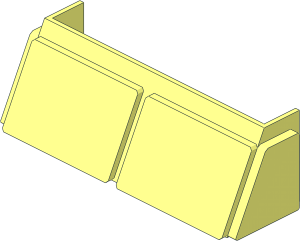

0 ~Windscreen 2 x 6 x 2 with Integral Glass - Transparent Section
0 Name: s\6567s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2006-01-08 [DeannaEarley] Tidied, BFC'd and corrected position to match 4176
0 !HISTORY 2006-06-25 [DeannaEarley] Fixed some miscoloured items and conditional lines on the rounded edges
0 !HISTORY 2015-10-11 [PTadmin] Official Update 2015-01
0 !HISTORY 2025-03-30 [Blechtaler] reworked to get rid of t-junk and overlap, original by Thomas Burger [grapeape]
Show contents
0 // Left pane
1 16 29 24 -19 26 0 0 0 0 16 0 -3 -8 box3u10p.dat
1 16 55.5 39.5 -28.25 .5 0 0 -.5 -1 0 .25 0 1.5 rect2p.dat
1 16 55.5 8.5 -12.75 .5 0 0 .5 1 0 -.25 0 1.5 rect2p.dat
1 16 2.5 8.5 -12.75 -.5 0 0 .5 1 0 -.25 0 1.5 rect2p.dat
1 16 2.5 39.5 -28.25 -.5 0 0 -.5 -1 0 .25 0 1.5 rect2p.dat
4 16 55 40 -30 56 39 -29.5 56 9 -14.5 55 8 -14
4 16 3 8 -14 2 9 -14.5 2 39 -29.5 3 40 -30
2 24 3 8 -11 55 8 -11
5 24 55 40 -27 55 40 -30 3 40 -30 56 39 -29.5
5 24 56 39 -26.5 56 39 -29.5 55 40 -30 56 9 -14.5
5 24 56 9 -11.5 56 9 -14.5 56 39 -29.5 55 8 -14
5 24 55 8 -11 55 8 -14 56 9 -14.5 3 8 -14
5 24 3 8 -11 3 8 -14 55 8 -14 2 9 -14.5
5 24 2 9 -11.5 2 9 -14.5 3 8 -14 2 39 -29.5
5 24 2 39 -26.5 2 39 -29.5 2 9 -14.5 3 40 -30
5 24 3 40 -27 3 40 -30 2 39 -29.5 55 40 -30
0 // Side left pane
0 BFC INVERTNEXT
1 16 58 24 -20.5 0 0 -2 15 0 0 -7.5 1.5 0 box2-9p.dat
1 16 58 24 6 0 0 2 15 0 0 0 -1 0 rect2p.dat
1 16 58 8 -2.5 0 0 2 0 1 0 7.5 0 0 rect2p.dat
1 16 58 8.5 -10.75 0 0 2 .5 1 0 -.75 0 0 rect2p.dat
1 16 58 40 -10.25 2 0 0 0 -1 0 0 0 15.25 rect1.dat
1 16 60 39 5 0 -1 0 1 0 0 0 0 1 1-4chrd.dat
1 16 60 39 5 0 -4 0 1 0 0 0 0 1 1-4cylo.dat
1 16 56 39 5 0 -1 0 1 0 0 0 0 1 1-4ndis.dat
1 16 60 9 5 0 -1 0 -1 0 0 0 0 1 1-4chrd.dat
1 16 60 9 5 0 -4 0 -1 0 0 0 0 1 1-4cylo.dat
1 16 56 9 5 0 -1 0 -1 0 0 0 0 1 1-4ndis.dat
1 16 60 39 -25.5 0 -1 0 1 0 0 0 0 -1 1-4chrd.dat
1 16 60 39 -25.5 0 -4 0 1 0 0 0 0 -1 1-4cylo.dat
1 16 56 39 -25.5 0 -1 0 1 0 0 0 0 -1 1-4ndis.dat
4 16 60 39 6 60 9 6 60 8 5 60 40 5
4 16 60 40 5 60 8 5 60 8 -10 60 40 -25.5
4 16 60 39 -26.5 60 40 -25.5 60 8 -10 60 9 -11.5
5 24 56 8 -10 60 8 -10 60 8 5 60 9 -11.5
5 24 56 9 -11.5 60 9 -11.5 60 8 -10 60 39 -26.5
5 24 60 39 -26.5 56 39 -26.5 56 40 -26.5 56 9 -11.5
0 // Left inside pane
0 BFC INVERTNEXT
1 16 29 25 -16.875 0 0 -25 14 0 0 -6.625 -2 0 box4-1.dat
4 16 54 11 -10.25 54 39 -23.5 54 39 -25.5 54 11 -12.25
0 // Left panels
1 16 55 21 10 0 0 1 19 0 0 0 -1 0 rect.dat
4 16 55 40 -27 54 40 -24 56 40 -25.5 56 40 -27
4 16 54 40 -24 54 40 10 56 40 5 56 40 -25.5
3 16 56 40 5 54 40 10 56 40 10
3 16 56 40 6 56 40 10 56 39 6
4 16 56 40 10 56 2 10 56 9 6 56 39 6
3 16 56 9 6 56 2 10 56 8 6
3 16 56 8 6 56 2 10 56 8 5
4 16 56 8 -10 56 8 5 56 2 10 56 2 -8
3 16 56 2 -8 56 9 -11.5 56 8 -10
4 16 56 2 10 54 2 10 54 2 -6 56 2 -8
3 16 54 40 -24 54 39 -23.5 54 40 10
3 16 54 40 10 54 39 -23.5 54 11 -10.25
4 16 54 2 10 54 40 10 54 11 -10.25 54 2 -6
3 16 56 40 -27 56 40 -26.5 56 39 -26.5
3 16 55 40 -27 56 40 -27 56 39 -26.5
2 24 56 39 -26.5 56 40 -27
2 24 56 9 -11.5 56 2 -8
2 24 56 2 10 56 2 -8
2 24 54 2 -6 54 2 10
2 24 54 2 -6 54 11 -10.25
2 24 56 40 10 56 40 5
2 24 54 40 -24 54 40 10
2 24 54 39 -23.5 54 40 -24
2 24 56 40 -27 56 40 -25.5
0 // Right pane
1 16 -29 24 -19 26 0 0 0 0 16 0 -3 -8 box3u10p.dat
1 16 -55.5 39.5 -28.25 -.5 0 0 -.5 -1 0 .25 0 1.5 rect2p.dat
1 16 -55.5 8.5 -12.75 -.5 0 0 .5 1 0 -.25 0 1.5 rect2p.dat
1 16 -2.5 8.5 -12.75 .5 0 0 .5 1 0 -.25 0 1.5 rect2p.dat
1 16 -2.5 39.5 -28.25 .5 0 0 -.5 -1 0 .25 0 1.5 rect2p.dat
4 16 -55 8 -14 -56 9 -14.5 -56 39 -29.5 -55 40 -30
4 16 -3 40 -30 -2 39 -29.5 -2 9 -14.5 -3 8 -14
2 24 -3 8 -11 -55 8 -11
5 24 -55 40 -27 -55 40 -30 -3 40 -30 -56 39 -29.5
5 24 -56 39 -26.5 -56 39 -29.5 -55 40 -30 -56 9 -14.5
5 24 -56 9 -11.5 -56 9 -14.5 -56 39 -29.5 -55 8 -14
5 24 -55 8 -11 -55 8 -14 -56 9 -14.5 -3 8 -14
5 24 -3 8 -11 -3 8 -14 -55 8 -14 -2 9 -14.5
5 24 -2 9 -11.5 -2 9 -14.5 -3 8 -14 -2 39 -29.5
5 24 -2 39 -26.5 -2 39 -29.5 -2 9 -14.5 -3 40 -30
5 24 -3 40 -27 -3 40 -30 -2 39 -29.5 -55 40 -30
0 // Side right pane
0 BFC INVERTNEXT
1 16 -58 24 -20.5 0 0 2 15 0 0 -7.5 1.5 0 box2-9p.dat
1 16 -58 24 6 0 0 2 15 0 0 0 -1 0 rect2p.dat
1 16 -58 8 -2.5 0 0 2 0 1 0 7.5 0 0 rect2p.dat
1 16 -58 8.5 -10.75 0 0 2 .5 1 0 -.75 0 0 rect2p.dat
1 16 -58 40 -10.25 -2 0 0 0 -1 0 0 0 15.25 rect1.dat
1 16 -60 39 5 0 1 0 1 0 0 0 0 1 1-4chrd.dat
1 16 -60 39 5 0 4 0 1 0 0 0 0 1 1-4cylo.dat
1 16 -56 39 5 0 1 0 1 0 0 0 0 1 1-4ndis.dat
1 16 -60 9 5 0 1 0 -1 0 0 0 0 1 1-4chrd.dat
1 16 -56 9 5 0 -4 0 -1 0 0 0 0 1 1-4cylo.dat
1 16 -56 9 5 0 1 0 -1 0 0 0 0 1 1-4ndis.dat
1 16 -60 39 -25.5 0 1 0 1 0 0 0 0 -1 1-4chrd.dat
1 16 -56 39 -25.5 0 -4 0 1 0 0 0 0 -1 1-4cylo.dat
1 16 -56 39 -25.5 0 1 0 1 0 0 0 0 -1 1-4ndis.dat
4 16 -60 40 5 -60 8 5 -60 9 6 -60 39 6
4 16 -60 40 -25.5 -60 8 -10 -60 8 5 -60 40 5
4 16 -60 39 -26.5 -60 9 -11.5 -60 8 -10 -60 40 -25.5
5 24 -56 8 -10 -60 8 -10 -60 8 5 -60 9 -11.5
5 24 -56 9 -11.5 -60 9 -11.5 -60 8 -10 -60 39 -26.5
5 24 -60 39 -26.5 -56 39 -26.5 -56 40 -26.5 -56 9 -11.5
0 // right inside pane
0 BFC INVERTNEXT
1 16 -29 25 -16.875 0 0 25 14 0 0 -6.625 -2 0 box4-1.dat
4 16 -54 11 -12.25 -54 39 -25.5 -54 39 -23.5 -54 11 -10.25
0 // Right panels
1 16 -55 21 10 0 0 1 19 0 0 0 -1 0 rect.dat
4 16 -56 39 6 -56 9 6 -56 2 10 -56 40 10
4 16 -56 2 -8 -56 2 10 -56 8 5 -56 8 -10
3 16 -56 8 -10 -56 9 -11.5 -56 2 -8
3 16 -56 39 6 -56 40 10 -56 40 6
3 16 -56 8 5 -56 2 10 -56 8 6
3 16 -56 8 6 -56 2 10 -56 9 6
4 16 -56 2 -8 -54 2 -6 -54 2 10 -56 2 10
3 16 -54 40 -24 -54 40 10 -54 39 -23.5
3 16 -54 39 -23.5 -54 40 10 -54 11 -10.25
4 16 -54 11 -10.25 -54 40 10 -54 2 10 -54 2 -6
3 16 -56 39 -26.5 -56 40 -26.5 -56 40 -27
3 16 -56 39 -26.5 -56 40 -27 -55 40 -27
3 16 -56 40 10 -54 40 10 -56 40 5
4 16 -56 40 -25.5 -56 40 5 -54 40 10 -54 40 -24
4 16 -55 40 -27 -56 40 -27 -56 40 -25.5 -54 40 -24
2 24 -56 39 -26.5 -56 40 -27
2 24 -56 9 -11.5 -56 2 -8
2 24 -56 40 10 -56 40 5
2 24 -56 2 10 -56 2 -8
2 24 -54 2 -6 -54 2 10
2 24 -54 40 -24 -54 40 10
2 24 -54 2 -6 -54 11 -10.25
2 24 -54 39 -23.5 -54 40 -24
2 24 -56 40 -27 -56 40 -25.5
0 // Center surrounding
0 BFC INVERTNEXT
1 16 0 24 -22 0 0 2 15 0 0 -7.5 3 0 box3u8p.dat
4 16 -3 8 -11 -2 9 -11.5 2 9 -11.5 3 8 -11
4 16 2 39 -26.5 -2 39 -26.5 -3 40 -27 3 40 -27
3 16 -56 2 -8 -56 9 -11.5 -55 8 -11
3 16 -56 2 -8 -55 8 -11 -3 8 -11
4 16 56 2 -8 -56 2 -8 -3 8 -11 3 8 -11
3 16 56 2 -8 3 8 -11 55 8 -11
3 16 56 2 -8 55 8 -11 56 9 -11.5
4 16 56 2 -8 54 2 -6 -54 2 -6 -56 2 -8
3 16 -54 11 -10.25 -54 2 -6 -4 11 -10.25
4 16 4 11 -10.25 -4 11 -10.25 -54 2 -6 54 2 -6
3 16 4 11 -10.25 54 2 -6 54 11 -10.25
4 16 4 11 -10.25 4 39 -23.5 -4 39 -23.5 -4 11 -10.25
4 16 0 40 -24 -54 40 -24 -54 39 -23.5 -4 39 -23.5
3 16 0 40 -24 -4 39 -23.5 4 39 -23.5
4 16 0 40 -24 4 39 -23.5 54 39 -23.5 54 40 -24
4 16 -3 40 -27 -55 40 -27 -54 40 -24 0 40 -24
3 16 -3 40 -27 0 40 -24 3 40 -27
4 16 0 40 -24 54 40 -24 55 40 -27 3 40 -27
2 24 3 40 -27 -3 40 -27
2 24 54 2 -6 -54 2 -6
2 24 56 2 -8 -56 2 -8
2 24 -54 40 -24 0 40 -24
2 24 0 40 -24 54 40 -24
2 24 55 40 -27 56 40 -27
2 24 -55 40 -27 -56 40 -27
Status:
Needs More Votes (F)
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
None
big rework to change license, removed t-junk and overlap, rectified and added some boxes
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
