Unofficial File parts/7249.dat
Part Attributes:
File Header:

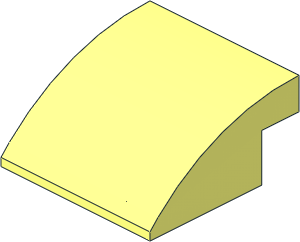

0 Slope Brick Curved 4 x 1 x 1.667
0 Name: 7249.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Top surface
1 16 40 107 40 0 -80 0 -107 0 0 0 0 -107 48\1-8cylo.dat
4 16 40 31.3403 -35.6597 -40 31.3403 -35.6597 -40 36 -40 40 36 -40
5 24 40 31.3403 -35.6597 -40 31.3403 -35.6597 40 36 -40 40 22.1062 -25.1416
1 16 0 38 -40 -40 0 0 0 0 2 0 1 0 rect.dat
0 BFC INVERTNEXT
1 16 0 37.8 -34.5 36 0 0 0 0 -2.2 0 -1.5 0 box2-7.dat
1 16 0 8 40 0 0 -40 8 0 0 0 -1 0 rect.dat
1 16 0 10.3 36 36 0 0 0 0 -5.7 0 1 0 rect.dat
2 24 -40 40 20 40 40 20
2 24 40 40 20 40 40 -40
2 24 -40 40 -40 -40 40 20
2 24 36 40 16 36 40 -36
2 24 -40 40 20 -40 16 20
2 24 40 16 20 40 40 20
2 24 -40 16 40 -40 16 20
2 24 40 16 20 40 16 40
2 24 -36 16 36 -36 16 20
2 24 36 16 36 36 16 20
2 24 36 16 20 40 16 20
2 24 -36 16 20 -40 16 20
3 16 40 36 -40 40 40 -40 40 40 20
3 16 -40 40 20 -40 40 -40 -40 36 -40
3 16 36 16 20 40 16 20 40 40 20
3 16 -40 40 20 -40 16 20 -36 16 20
4 16 -36 16 20 -40 16 20 -40 16 40 -36 16 36
4 16 36 16 20 36 16 36 40 16 40 40 16 20
4 16 40 16 40 36 16 36 -36 16 36 -40 16 40
4 16 -36 40 -36 -40 40 -40 -40 40 20 -36 40 16
4 16 36 40 -36 36 40 16 40 40 20 40 40 -40
4 16 -36 40 -36 36 40 -36 40 40 -40 -40 40 -40
4 16 -36 40 16 -40 40 20 40 40 20 36 40 16
4 16 36 16 20 40 40 20 -40 40 20 -36 16 20
1 16 0 10.9 20 -36 0 0 0 0 -5.1 0 -1 0 rect3.dat
1 16 0 23.5 16 -36 0 0 0 0 16.5 0 1 0 rect.dat
1 16 0 4.6 30 1 0 0 0 -2.85 0 0 0 1 stug3-1x3.dat
4 16 36 4.6 36 36 16 36 36 16 20 36 5.8 20
3 16 36 4.6 26 36 4.6 36 36 5.8 20
4 16 -36 16 20 -36 16 36 -36 4.6 36 -36 5.8 20
3 16 -36 4.6 36 -36 4.6 26 -36 5.8 20
1 16 0 4.6 31 0 0 -36 0 -1 0 -5 0 0 rect2p.dat
1 16 0 5.2 23 0 0 -36 0.6 -1 0 -3 0 0 rect2p.dat
1 16 0 10.5 22 -1.5 0 0 0 5.5 0 0 0 2 box2-5.dat
4 16 -1.5 5 24 -1.5 16 24 -1.5 16 20 -1.5 5.8 20
2 24 -1.5 5.8 20 -1.5 16 20
2 24 -1.5 5 24 -1.5 5.8 20
4 16 1.5 16 20 1.5 16 24 1.5 5 24 1.5 5.8 20
2 24 1.5 16 20 1.5 5.8 20
2 24 1.5 5.8 20 1.5 5 24
1 16 10 10.5 22 -1.5 0 0 0 5.5 0 0 0 2 box2-5.dat
4 16 8.5 5 24 8.5 16 24 8.5 16 20 8.5 5.8 20
2 24 8.5 5.8 20 8.5 16 20
2 24 8.5 5 24 8.5 5.8 20
4 16 11.5 16 20 11.5 16 24 11.5 5 24 11.5 5.8 20
2 24 11.5 16 20 11.5 5.8 20
2 24 11.5 5.8 20 11.5 5 24
1 16 20 10.5 22 -1.5 0 0 0 5.5 0 0 0 2 box2-5.dat
4 16 18.5 5 24 18.5 16 24 18.5 16 20 18.5 5.8 20
2 24 18.5 5.8 20 18.5 16 20
2 24 18.5 5 24 18.5 5.8 20
4 16 21.5 16 20 21.5 16 24 21.5 5 24 21.5 5.8 20
2 24 21.5 16 20 21.5 5.8 20
2 24 21.5 5.8 20 21.5 5 24
1 16 30 10.5 22 -1.5 0 0 0 5.5 0 0 0 2 box2-5.dat
4 16 28.5 5 24 28.5 16 24 28.5 16 20 28.5 5.8 20
2 24 28.5 5.8 20 28.5 16 20
2 24 28.5 5 24 28.5 5.8 20
4 16 31.5 16 20 31.5 16 24 31.5 5 24 31.5 5.8 20
2 24 31.5 16 20 31.5 5.8 20
2 24 31.5 5.8 20 31.5 5 24
1 16 -10 10.5 22 1.5 0 0 0 5.5 0 0 0 2 box2-5.dat
4 16 -8.5 16 20 -8.5 16 24 -8.5 5 24 -8.5 5.8 20
2 24 -8.5 16 20 -8.5 5.8 20
2 24 -8.5 5.8 20 -8.5 5 24
4 16 -11.5 5 24 -11.5 16 24 -11.5 16 20 -11.5 5.8 20
2 24 -11.5 5.8 20 -11.5 16 20
2 24 -11.5 5 24 -11.5 5.8 20
1 16 -20 10.5 22 1.5 0 0 0 5.5 0 0 0 2 box2-5.dat
4 16 -18.5 16 20 -18.5 16 24 -18.5 5 24 -18.5 5.8 20
2 24 -18.5 16 20 -18.5 5.8 20
2 24 -18.5 5.8 20 -18.5 5 24
4 16 -21.5 5 24 -21.5 16 24 -21.5 16 20 -21.5 5.8 20
2 24 -21.5 5.8 20 -21.5 16 20
2 24 -21.5 5 24 -21.5 5.8 20
1 16 -30 10.5 22 1.5 0 0 0 5.5 0 0 0 2 box2-5.dat
4 16 -28.5 16 20 -28.5 16 24 -28.5 5 24 -28.5 5.8 20
2 24 -28.5 16 20 -28.5 5.8 20
2 24 -28.5 5.8 20 -28.5 5 24
4 16 -31.5 5 24 -31.5 16 24 -31.5 16 20 -31.5 5.8 20
2 24 -31.5 5.8 20 -31.5 16 20
2 24 -31.5 5 24 -31.5 5.8 20
2 24 -36 19.5 -12 -36 31 -28
2 24 -36 31 -28 -36 35.6 -33
2 24 -36 40 16 -36 40 -36
4 16 -36 7 16 -36 9 8 -36 17 -8 -36 40 16
4 16 -36 40 16 -36 17 -8 -36 19.5 -12 -36 31 -28
4 16 -36 35.6 -33 -36 35.6 -36 -36 40 -36 -36 40 16
3 16 -36 31 -28 -36 35.6 -33 -36 40 16
2 24 36 31 -28 36 19.5 -12
2 24 36 35.6 -33 36 31 -28
4 16 36 17 -8 36 9 8 36 7 16 36 40 16
4 16 36 19.5 -12 36 17 -8 36 40 16 36 31 -28
4 16 36 40 -36 36 35.6 -36 36 35.6 -33 36 40 16
3 16 36 35.6 -33 36 31 -28 36 40 16
1 16 0 8 12 0 0 36 -1 -1 0 4 0 0 rect2p.dat
1 16 0 13 0 0 0 -36 4 -1 0 -8 0 0 rect2p.dat
4 16 -21 35.6 -33 -36 35.6 -33 -36 31 -28 -19 31 -28
1 16 -10 33.3 -30.5 9 0 0 0 -1 2.3 0 0 -2.5 rect3.dat
3 16 -36 31 -28 -36 19.5 -12 -19 31 -28
3 16 -19 31 -28 -36 19.5 -12 -1 31 -28
4 16 36 31 -28 36 35.6 -33 21 35.6 -33 19 31 -28
1 16 10 33.3 -30.5 9 0 0 0 -1 2.3 0 0 -2.5 rect3.dat
3 16 36 19.5 -12 36 31 -28 19 31 -28
3 16 36 19.5 -12 19 31 -28 1 31 -28
4 16 -1 31 -28 -36 19.5 -12 36 19.5 -12 1 31 -28
1 16 0 18.25 -10 0 0 36 -1.25 -1 0 2 0 0 rect2p.dat
1 16 -20 17 0 1 0 0 0 -5.75 0 0 0 1 stud4a.dat
1 16 -20 31 -20 1 0 0 0 -2.25 0 0 0 1 stud4a.dat
1 16 -20 17 0 0 0 1 0 4 0 -1 0 0 stud4s.dat
1 16 -20 31 -20 0 0 1 0 5.75 0 -1 0 0 stud4s.dat
2 24 -21 31 -28 -21 35.6 -33
2 24 -21 30.8571 -27.8011 -21 31 -28
2 24 -21 19.5 -12 -21 19.6429 -12.1989
2 24 -21 16.9006 -7.8011 -21 17 -8
2 24 -21 9 8 -21 9.0994 7.8011
2 24 -21 17 -8 -21 19.5 -12
2 24 -21 9 8 -21 7 16
4 16 -21 31 -28 -21 30.8571 -27.8011 -21 35.6 -27.8012 -21 35.6 -33
2 24 -21 30.8571 -27.8011 -21 35.6 -27.8012
2 24 -21 19.6429 -12.1989 -21 35.6 -12.1989
2 24 -21 16.9006 -7.8011 -21 35.6 -7.8012
4 16 -21 35.6 -12.1989 -21 17 -8 -21 16.9006 -7.8011 -21 35.6 -7.8012
4 16 -21 19.5 -12 -21 17 -8 -21 35.6 -12.1989 -21 19.6429 -12.1989
4 16 -21 7 16 -21 35.6 16 -21 35.6 7.8012 -21 9 8
3 16 -21 9.0994 7.8011 -21 9 8 -21 35.6 7.8012
2 24 -21 7 16 -21 35.6 16
2 24 -21 9.0994 7.8011 -21 35.6 7.8012
2 24 -19 31 -28 -19 30.8571 -27.8011
2 24 -19 19.6429 -12.1989 -19 19.5 -12
2 24 -19 17 -8 -19 16.9006 -7.8011
2 24 -19 9.0994 7.8011 -19 9 8
2 24 -19 19.5 -12 -19 17 -8
2 24 -19 7 16 -19 9 8
4 16 -19 35.6 -27.8012 -19 30.8571 -27.8011 -19 31 -28 -19 35.6 -33
2 24 -19 35.6 -27.8012 -19 30.8571 -27.8011
2 24 -19 35.6 -12.1989 -19 19.6429 -12.1989
2 24 -19 35.6 -7.8012 -19 16.9006 -7.8011
4 16 -19 16.9006 -7.8011 -19 17 -8 -19 35.6 -12.1989 -19 35.6 -7.8012
4 16 -19 35.6 -12.1989 -19 17 -8 -19 19.5 -12 -19 19.6429 -12.1989
4 16 -19 35.6 7.8012 -19 35.6 16 -19 7 16 -19 9 8
3 16 -19 9 8 -19 9.0994 7.8011 -19 35.6 7.8012
2 24 -19 35.6 16 -19 7 16
2 24 -19 35.6 7.8012 -19 9.0994 7.8011
1 16 -20 35.6 11.9006 -1 0 0 0 -1 0 0 0 4.09943 rect3.dat
1 16 -20 35.6 -10 0 0 1 0 -1 0 2.19885 0 0 rect2p.dat
1 16 -20 35.6 -30.4006 0 0 1 0 -1 0 2.59943 0 0 rect2p.dat
2 24 -20 35.6 8 -19 35.6 7.8012
2 24 -21 35.6 7.8012 -20 35.6 8
2 24 -21 35.6 -7.8012 -20 35.6 -8
2 24 -20 35.6 -8 -19 35.6 -7.8012
2 24 -20 35.6 -12 -19 35.6 -12.1989
2 24 -21 35.6 -12.1989 -20 35.6 -12
2 24 -20 35.6 -28 -21 35.6 -27.8012
2 24 -19 35.6 -27.8012 -20 35.6 -28
1 16 0 17 0 1 0 0 0 -5.75 0 0 0 1 stud4a.dat
1 16 0 31 -20 1 0 0 0 -2.25 0 0 0 1 stud4a.dat
1 16 0 17 0 0 0 1 0 4 0 -1 0 0 stud4s.dat
1 16 0 31 -20 0 0 1 0 5.75 0 -1 0 0 stud4s.dat
2 24 -1 30.8571 -27.8011 -1 31 -28
2 24 -1 19.5 -12 -1 19.6429 -12.1989
2 24 -1 16.9006 -7.8011 -1 17 -8
2 24 -1 9 8 -1 9.0994 7.8011
2 24 -1 17 -8 -1 19.5 -12
2 24 -1 9 8 -1 7 16
4 16 -1 31 -28 -1 30.8571 -27.8011 -1 35.6 -27.8012 -1 35.6 -33
2 24 -1 30.8571 -27.8011 -1 35.6 -27.8012
2 24 -1 19.6429 -12.1989 -1 35.6 -12.1989
2 24 -1 16.9006 -7.8011 -1 35.6 -7.8012
4 16 -1 35.6 -12.1989 -1 17 -8 -1 16.9006 -7.8011 -1 35.6 -7.8012
4 16 -1 19.5 -12 -1 17 -8 -1 35.6 -12.1989 -1 19.6429 -12.1989
4 16 -1 7 16 -1 35.6 16 -1 35.6 7.8012 -1 9 8
3 16 -1 9.0994 7.8011 -1 9 8 -1 35.6 7.8012
2 24 -1 7 16 -1 35.6 16
2 24 -1 9.0994 7.8011 -1 35.6 7.8012
2 24 1 31 -28 1 30.8571 -27.8011
2 24 1 19.6429 -12.1989 1 19.5 -12
2 24 1 17 -8 1 16.9006 -7.8011
2 24 1 9.0994 7.8011 1 9 8
2 24 1 19.5 -12 1 17 -8
2 24 1 7 16 1 9 8
4 16 1 35.6 -27.8012 1 30.8571 -27.8011 1 31 -28 1 35.6 -33
2 24 1 35.6 -27.8012 1 30.8571 -27.8011
2 24 1 35.6 -12.1989 1 19.6429 -12.1989
2 24 1 35.6 -7.8012 1 16.9006 -7.8011
4 16 1 16.9006 -7.8011 1 17 -8 1 35.6 -12.1989 1 35.6 -7.8012
4 16 1 35.6 -12.1989 1 17 -8 1 19.5 -12 1 19.6429 -12.1989
4 16 1 35.6 7.8012 1 35.6 16 1 7 16 1 9 8
3 16 1 9 8 1 9.0994 7.8011 1 35.6 7.8012
2 24 1 35.6 16 1 7 16
2 24 1 35.6 7.8012 1 9.0994 7.8011
1 16 0 35.6 11.9006 -1 0 0 0 -1 0 0 0 4.09943 rect3.dat
1 16 0 35.6 -10 0 0 1 0 -1 0 2.19885 0 0 rect2p.dat
1 16 0 35.6 -30.4006 0 0 1 0 -1 0 2.59943 0 0 rect2p.dat
2 24 0 35.6 8 1 35.6 7.8012
2 24 -1 35.6 7.8012 0 35.6 8
2 24 -1 35.6 -7.8012 0 35.6 -8
2 24 0 35.6 -8 1 35.6 -7.8012
2 24 0 35.6 -12 1 35.6 -12.1989
2 24 -1 35.6 -12.1989 0 35.6 -12
2 24 0 35.6 -28 -1 35.6 -27.8012
2 24 1 35.6 -27.8012 0 35.6 -28
1 16 20 17 0 1 0 0 0 -5.75 0 0 0 1 stud4a.dat
1 16 20 31 -20 1 0 0 0 -2.25 0 0 0 1 stud4a.dat
1 16 20 17 0 0 0 1 0 4 0 -1 0 0 stud4s.dat
1 16 20 31 -20 0 0 1 0 5.75 0 -1 0 0 stud4s.dat
2 24 19 30.8571 -27.8011 19 31 -28
2 24 19 19.5 -12 19 19.6429 -12.1989
2 24 19 16.9006 -7.8011 19 17 -8
2 24 19 9 8 19 9.0994 7.8011
2 24 19 17 -8 19 19.5 -12
2 24 19 9 8 19 7 16
4 16 19 31 -28 19 30.8571 -27.8011 19 35.6 -27.8012 19 35.6 -33
2 24 19 30.8571 -27.8011 19 35.6 -27.8012
2 24 19 19.6429 -12.1989 19 35.6 -12.1989
2 24 19 16.9006 -7.8011 19 35.6 -7.8012
4 16 19 35.6 -12.1989 19 17 -8 19 16.9006 -7.8011 19 35.6 -7.8012
4 16 19 19.5 -12 19 17 -8 19 35.6 -12.1989 19 19.6429 -12.1989
4 16 19 7 16 19 35.6 16 19 35.6 7.8012 19 9 8
3 16 19 9.0994 7.8011 19 9 8 19 35.6 7.8012
2 24 19 7 16 19 35.6 16
2 24 19 9.0994 7.8011 19 35.6 7.8012
2 24 21 35.6 -33 21 31 -28
2 24 21 31 -28 21 30.8571 -27.8011
2 24 21 19.6429 -12.1989 21 19.5 -12
2 24 21 17 -8 21 16.9006 -7.8011
2 24 21 9.0994 7.8011 21 9 8
2 24 21 19.5 -12 21 17 -8
2 24 21 7 16 21 9 8
4 16 21 35.6 -27.8012 21 30.8571 -27.8011 21 31 -28 21 35.6 -33
2 24 21 35.6 -27.8012 21 30.8571 -27.8011
2 24 21 35.6 -12.1989 21 19.6429 -12.1989
2 24 21 35.6 -7.8012 21 16.9006 -7.8011
4 16 21 16.9006 -7.8011 21 17 -8 21 35.6 -12.1989 21 35.6 -7.8012
4 16 21 35.6 -12.1989 21 17 -8 21 19.5 -12 21 19.6429 -12.1989
4 16 21 35.6 7.8012 21 35.6 16 21 7 16 21 9 8
3 16 21 9 8 21 9.0994 7.8011 21 35.6 7.8012
2 24 21 35.6 16 21 7 16
2 24 21 35.6 7.8012 21 9.0994 7.8011
1 16 20 35.6 11.9006 -1 0 0 0 -1 0 0 0 4.09943 rect3.dat
1 16 20 35.6 -10 0 0 1 0 -1 0 2.19885 0 0 rect2p.dat
1 16 20 35.6 -30.4006 0 0 1 0 -1 0 2.59943 0 0 rect2p.dat
2 24 20 35.6 8 21 35.6 7.8012
2 24 19 35.6 7.8012 20 35.6 8
2 24 19 35.6 -7.8012 20 35.6 -8
2 24 20 35.6 -8 21 35.6 -7.8012
2 24 20 35.6 -12 21 35.6 -12.1989
2 24 19 35.6 -12.1989 20 35.6 -12
2 24 20 35.6 -28 19 35.6 -27.8012
2 24 21 35.6 -27.8012 20 35.6 -28
2 24 36 40 -36 -36 40 -36
2 24 36 35.6 -33 21 35.6 -33
2 24 -21 35.6 -33 -36 35.6 -33
5 24 -1 31 -28 -19 31 -28 -1 35.6 -33 -36 19.5 -12
5 24 36 17 -8 -36 17 -8 -36 9 8 36 19.5 -12
5 24 -19 31 -28 -36 31 -28 -36 19.5 -12 -21 35.6 -33
5 24 36 9 8 -36 9 8 -36 7 16 36 17 -8
5 24 19 31 -28 1 31 -28 19 35.6 -33 36 19.5 -12
5 24 36 19.5 -12 -36 19.5 -12 1 31 -28 -36 17 -8
5 24 36 31 -28 19 31 -28 36 35.6 -33 36 19.5 -12
5 24 36 4.6 26 -36 4.6 26 36 5.8 20 -36 4.6 36
1 16 40 107 40 0 -80 0 -107 0 0 0 0 -107 48\1-8chrd.dat
3 16 40 0 40 40 16 20 40 16 40
4 16 40 36 -40 40 40 20 40 16 20 40 31.3403 -35.6597
3 16 40 31.3403 -35.6597 40 16 20 40 0 40
2 24 40 31.3403 -35.6597 40 36 -40
1 16 -40 107 40 0 80 0 -107 0 0 0 0 -107 48\1-8chrd.dat
3 16 -40 16 20 -40 0 40 -40 16 40
4 16 -40 16 20 -40 40 20 -40 36 -40 -40 31.3403 -35.6597
3 16 -40 16 20 -40 31.3403 -35.6597 -40 0 40
2 24 -40 36 -40 -40 31.3403 -35.6597
Status:
Needs More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
2025-04-01 15:35:15
2025-04-01 17:25:57
any cylo prims who fit?
2025-04-01 18:29:48
It follows the design of 1x4
2025-04-01 18:31:23
the cylo could be reused there...
2025-04-05 18:48:20
Yes, you're right. working on that...
Used cylo prim.
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
description:
Slope Brick Curved 4 x 1 x 1.667to
Slope Brick Curved 4 x 4 x 1.667Corrected description
