Unofficial File parts/7276.dat
Part Attributes:
File Header:

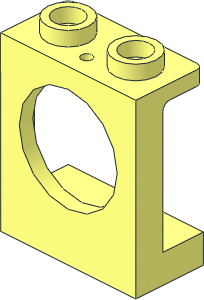

0 Panel 1 x 2 x 2 Hollow Stud with Round Window Opening
0 Name: 7276.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug2-1x2.dat
0 // top
1 16 18 0 8 2 0 0 0 4 0 0 0 2 1-4cylo.dat
1 16 -18 0 8 -2 0 0 0 4 0 0 0 2 1-4cylo.dat
1 16 18 0 8 2 0 0 0 1 0 0 0 2 1-4chrd.dat
1 16 -18 0 8 -2 0 0 0 1 0 0 0 2 1-4chrd.dat
1 16 18 4 8 2 0 0 0 -1 0 0 0 2 1-4chrd.dat
1 16 -18 4 8 -2 0 0 0 -1 0 0 0 2 1-4chrd.dat
1 16 0 2 10 18 0 0 0 0 2 0 -1 0 rect2p.dat
4 16 20 48 -10 20 40 -2 20 6 -2 20 0 -10
4 16 -20 40 -2 -20 48 -10 -20 0 -10 -20 6 -2
3 16 20 0 -10 20 4 -2 20 4 0
3 16 -20 4 0 -20 4 -2 -20 0 -10
4 16 20 4 0 20 4 8 20 0 8 20 0 -10
4 16 -20 4 8 -20 4 0 -20 0 -10 -20 0 8
2 24 -20 0 -10 20 0 -10
2 24 20 4 8 20 4 0
2 24 -20 4 8 -20 4 0
2 24 20 0 -10 20 0 8
2 24 -20 0 -10 -20 0 8
3 16 1.5 0 -4.5 1.5 0 -6 20 0 -10
4 16 20 0 8 1.5 0 -3 1.5 0 -4.5 20 0 -10
4 16 0 0 -3 1.5 0 -3 20 0 8 18 0 10
3 16 0 0 -3 18 0 10 -18 0 10
4 16 -20 0 8 -1.5 0 -3 0 0 -3 -18 0 10
4 16 -20 0 -10 -1.5 0 -4.5 -1.5 0 -3 -20 0 8
3 16 -1.5 0 -4.5 -20 0 -10 -1.5 0 -6
4 16 20 0 -10 0 0 -6 -1.5 0 -6 -20 0 -10
3 16 0 0 -6 20 0 -10 1.5 0 -6
4 16 -18 4 -2 -1.5 4 -4.5 -1.5 4 -6 -18 4 -6
4 16 -18 4 0 -1.5 4 -3 -1.5 4 -4.5 -18 4 -2
4 16 -20 4 0 -20 4 8 -18 4 10 -18 4 0
4 16 0 4 -3 -1.5 4 -3 -18 4 0 -18 4 10
3 16 0 4 -3 -18 4 10 18 4 10
4 16 18 4 0 1.5 4 -3 0 4 -3 18 4 10
4 16 18 4 10 20 4 8 20 4 0 18 4 0
4 16 1.5 4 -3 18 4 0 18 4 -2 1.5 4 -4.5
4 16 1.5 4 -6 1.5 4 -4.5 18 4 -2 18 4 -6
2 24 18 4 -6 18 4 -2
2 24 18 4 -2 18 4 0
2 24 -18 4 -6 -18 4 -2
2 24 -18 4 -2 -18 4 0
2 24 -18 4 -6 -1.5 4 -6
2 24 -1.5 4 -6 0 4 -6
2 24 0 4 -6 1.5 4 -6
2 24 1.5 4 -6 18 4 -6
0 // window
1 16 0 20 -6 14.5 0 0 0 0 14.5 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 20 -10 14.5 0 0 0 0 14.5 0 4 0 4-4cylo.dat
1 16 0 20 -10 14.5 0 0 0 0 14.5 0 1 0 4-4ndis.dat
4 16 -14.5 5.5 -10 0 5.5 -10 20 0 -10 -20 0 -10
3 16 20 0 -10 0 5.5 -10 14.5 5.5 -10
3 16 20 0 -10 14.5 5.5 -10 14.5 20 -10
4 16 14.5 34.5 -10 20 48 -10 20 0 -10 14.5 20 -10
4 16 14.5 34.5 -10 0 34.5 -10 -20 48 -10 20 48 -10
3 16 -20 48 -10 0 34.5 -10 -14.5 34.5 -10
4 16 -14.5 34.5 -10 -14.5 20 -10 -20 0 -10 -20 48 -10
3 16 -20 0 -10 -14.5 20 -10 -14.5 5.5 -10
4 16 18 4 -6 14.5 5.5 -6 0 5.5 -6 1.5 4 -6
3 16 1.5 4 -6 0 5.5 -6 0 4 -6
3 16 0 4 -6 0 5.5 -6 -1.5 4 -6
4 16 0 5.5 -6 -14.5 5.5 -6 -18 4 -6 -1.5 4 -6
3 16 -18 4 -6 -14.5 5.5 -6 -14.5 20 -6
4 16 -14.5 34.5 -6 -18 40 -6 -18 4 -6 -14.5 20 -6
4 16 -18 40 -6 -14.5 34.5 -6 0 34.5 -6 -1.5 40 -6
3 16 -1.5 40 -6 0 34.5 -6 0 40 -6
3 16 0 40 -6 0 34.5 -6 1.5 40 -6
4 16 18 40 -6 1.5 40 -6 0 34.5 -6 14.5 34.5 -6
4 16 18 4 -6 18 40 -6 14.5 34.5 -6 14.5 20 -6
3 16 18 4 -6 14.5 20 -6 14.5 5.5 -6
0 // window pane holes
1 16 0 0 -4.5 1.5 0 0 0 1 0 0 0 1.5 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 0 -4.5 1.5 0 0 0 4 0 0 0 1.5 4-4cylo.dat
1 16 0 4 -4.5 1.5 0 0 0 -1 0 0 0 1.5 4-4ndis.dat
1 16 0 40 -4.5 1.5 0 0 0 1 0 0 0 1.5 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 40 -4.5 1.5 0 0 0 4 0 0 0 1.5 4-4cylo.dat
1 16 0 44 -4.5 1.5 0 0 0 -1 0 0 0 1.5 4-4ndis.dat
0 // sides
1 16 19 23 -2 1 0 0 0 0 17 0 -1 0 rect3.dat
1 16 -19 23 -2 1 0 0 0 0 17 0 -1 0 rect3.dat
0 BFC INVERTNEXT
1 16 20 6 0 0 -2 0 -2 0 0 0 0 -2 1-4cylo.dat
1 16 20 6 0 0 -1 0 -2 0 0 0 0 -2 1-4ndis.dat
1 16 18 6 0 0 1 0 -2 0 0 0 0 -2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -20 6 0 0 2 0 -2 0 0 0 0 -2 1-4cylo.dat
1 16 -20 6 0 0 1 0 -2 0 0 0 0 -2 1-4ndis.dat
1 16 -18 6 0 0 -1 0 -2 0 0 0 0 -2 1-4ndis.dat
4 16 18 40 -2 18 40 -6 18 4 -6 18 6 -2
4 16 -18 6 -2 -18 4 -6 -18 40 -6 -18 40 -2
3 16 18 4 -6 18 4 -2 18 6 -2
3 16 -18 6 -2 -18 4 -2 -18 4 -6
3 16 20 6 -2 20 4 -2 20 0 -10
3 16 -20 0 -10 -20 4 -2 -20 6 -2
2 24 -20 0 -10 -20 48 -10
2 24 20 0 -10 20 48 -10
2 24 -18 40 -6 -18 4 -6
2 24 18 4 -6 18 40 -6
0 // bottom
1 16 0 44 10 -20 0 0 0 0 -4 0 -1 0 rect.dat
0 BFC INVERTNEXT
1 16 0 48 0 16 0 0 0 -4 0 0 0 6 box4.dat
4 16 -20 48 -10 -16 48 -6 16 48 -6 20 48 -10
4 16 20 48 -10 16 48 -6 16 48 6 20 48 10
4 16 20 48 10 16 48 6 -16 48 6 -20 48 10
4 16 -20 48 10 -16 48 6 -16 48 -6 -20 48 -10
2 24 -20 48 -10 20 48 -10
2 24 20 48 -10 20 48 10
2 24 -20 48 10 -20 48 -10
4 16 20 48 -10 20 48 10 20 40 10 20 40 -2
4 16 -20 48 10 -20 48 -10 -20 40 -2 -20 40 10
2 24 20 40 -2 20 40 10
2 24 -20 40 10 -20 40 -2
3 16 20 40 10 18 40 -2 20 40 -2
3 16 -20 40 -2 -18 40 -2 -20 40 10
2 24 18 40 -6 18 40 -2
2 24 18 40 -6 1.5 40 -6
2 24 1.5 40 -6 0 40 -6
2 24 0 40 -6 -1.5 40 -6
2 24 -1.5 40 -6 -18 40 -6
2 24 -18 40 -6 -18 40 -2
4 16 1.5 40 -6 18 40 -6 18 40 -2 1.5 40 -4.5
4 16 1.5 40 -3 1.5 40 -4.5 18 40 -2 20 40 10
4 16 -18 40 -2 -18 40 -6 -1.5 40 -6 -1.5 40 -4.5
4 16 -18 40 -2 -1.5 40 -4.5 -1.5 40 -3 -20 40 10
4 16 1.5 40 -3 20 40 10 -20 40 10 0 40 -3
3 16 0 40 -3 -20 40 10 -1.5 40 -3
3 16 16 44 -6 1.5 44 -6 1.5 44 -4.5
4 16 1.5 44 -3 16 44 6 16 44 -6 1.5 44 -4.5
4 16 -16 44 6 16 44 6 1.5 44 -3 0 44 -3
3 16 -16 44 6 0 44 -3 -1.5 44 -3
4 16 -1.5 44 -3 -1.5 44 -4.5 -16 44 -6 -16 44 6
3 16 -16 44 -6 -1.5 44 -4.5 -1.5 44 -6
1 16 5 44 3.5 -2.5 0 2.5 0 3.6 0 2.5 0 2.5 tri3a1.dat
1 16 -5 44 3.5 -2.5 0 2.5 0 3.6 0 2.5 0 2.5 tri3a1.dat
1 16 5 44 -3.5 2.5 0 -2.5 0 3.6 0 -2.5 0 -2.5 tri3a1.dat
1 16 -5 44 -3.5 2.5 0 -2.5 0 3.6 0 -2.5 0 -2.5 tri3a1.dat
Status:
Needs More Votes (CN)
Current Votes:
| User | Vote |
|---|---|
| GeraldLasser | Certify |
Official parents and subparts
Part Events:
made from 87552s01 and 90195, hole dimension from Turez
2025-04-02 22:20:43
Position and size is fine, see my port
2025-04-02 22:35:58
do we need !Help to place the window inserts 60601 and 38320?
(why are these differently sized? they dont fit well...)
(why are these differently sized? they dont fit well...)
with tri3a1 like 18974.dat
2025-04-10 09:23:22
