Unofficial File parts/s/6567s02.dat
File Header:

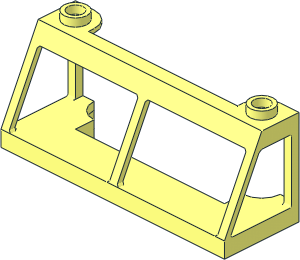

0 ~Windscreen 2 x 6 x 2 with Integral Glass - Opaque Section
0 Name: s\6567s02.dat
0 Author: Deanna Earley [DeannaEarley]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2015-10-11 [PTadmin] Official Update 2015-01
0 !HISTORY 2025-04-03 [Blechtaler] rework to fix t-junk
Show contents
0 // Based on the work of Thomas Burger (prototype)
0 // center pillar
1 16 0 9 -13 2 0 0 0 30 0 0 -15 1.5 box4o8a.dat
1 16 2.5 39.5 -28.25 -.5 0 0 -.5 1 0 .25 0 1.5 rect2p.dat
1 16 -2.5 39.5 -28.25 .5 0 0 -.5 1 0 .25 0 1.5 rect2p.dat
1 16 2.5 8.5 -12.75 -.5 0 0 .5 -1 0 -.25 0 1.5 rect2p.dat
1 16 -2.5 8.5 -12.75 .5 0 0 .5 -1 0 -.25 0 1.5 rect2p.dat
4 16 2 39 -29.5 -2 39 -29.5 -3 40 -30 3 40 -30
4 16 -3 40 -27 -2 39 -26.5 2 39 -26.5 3 40 -27
4 16 2 9 -11.5 -2 9 -11.5 -3 8 -11 3 8 -11
4 16 -3 8 -14 -2 9 -14.5 2 9 -14.5 3 8 -14
2 24 3 40 -30 -3 40 -30
2 24 -3 40 -27 3 40 -27
5 24 2 39 -29.5 2 39 -26.5 2 9 -14.5 3 40 -27
5 24 3 40 -30 3 40 -27 2 39 -26.5 55 40 -30
5 24 -2 39 -26.5 -2 39 -29.5 -2 9 -11.5 -3 40 -30
5 24 -3 40 -27 -3 40 -30 -2 39 -29.5 -55 40 -27
5 24 3 8 -14 3 8 -11 55 8 -11 2 9 -14.5
5 24 2 9 -14.5 2 9 -11.5 3 8 -14 2 39 -29.5
5 24 -3 8 -11 -3 8 -14 -55 8 -14 -2 9 -11.5
5 24 -2 9 -11.5 -2 9 -14.5 -3 8 -11 -2 39 -26.5
0 // left front pillar
1 16 58 24 -20.5 0 0 -2 15 0 0 -7.5 1.5 0 box2-9p.dat
0 BFC INVERTNEXT
1 16 60 39 -25.5 0 -4 0 1 0 0 0 0 -1 1-4cylo.dat
5 24 60 39 -26.5 56 39 -26.5 60 39.3827 -26.4239 56 9 -11.5
1 16 60 39 -25.5 0 -1 0 1 0 0 0 0 -1 1-4ndis.dat
1 16 56 39 -25.5 0 1 0 1 0 0 0 0 -1 1-4ndis.dat
1 16 55.5 39.5 -28.25 .5 0 0 -.5 1 0 .25 0 1.5 rect2p.dat
1 16 55.5 8.5 -12.75 .5 0 0 .5 -1 0 -.25 0 1.5 rect2p.dat
1 16 58 8.5 -10.75 0 0 2 .5 -1 0 -.75 0 0 rect2p.dat
4 16 56 39 -29.5 60 40 -30 60 0 -10 56 9 -14.5
3 16 55 40 -30 60 40 -30 56 39 -29.5
3 16 56 9 -14.5 60 0 -10 55 8 -14
4 16 60 40 -30 60 39 -26.5 60 9 -11.5 60 0 -10
3 16 60 0 -10 60 9 -11.5 60 8 -10
3 16 56 40 -26.5 56 40 -27 56 39 -26.5
3 16 56 39 -26.5 56 40 -27 55 40 -27
3 16 56 8 -10 56 9 -11.5 56 2 -8
3 16 55 8 -11 56 2 -8 56 9 -11.5
2 24 56 9 -11.5 56 2 -8
2 24 56 39 -26.5 56 40 -27
2 24 56 40 -27 56 40 -25.5
2 24 56 40 -27 55 40 -27
2 24 60 40 -30 60 0 -10
5 24 56 9 -11.5 60 9 -11.5 60 39 -26.5 60 8 -10
5 24 56 8 -10 60 8 -10 60 9 -11.5 56 8 5
5 24 56 39 -26.5 56 39 -29.5 56 9 -11.5 55 40 -30
5 24 56 9 -14.5 56 9 -11.5 56 39 -26.5 55 8 -11
5 24 55 8 -14 55 8 -11 56 9 -11.5 3 8 -11
5 24 55 40 -30 55 40 -27 3 40 -27 56 39 -29.5
0 // left rear pillar
1 16 60 9 5 0 -1 0 -1 0 0 0 0 1 1-4ndis.dat
0 BFC INVERTNEXT
1 16 56 9 5 0 4 0 -1 0 0 0 0 1 1-4cylo.dat
1 16 56 9 5 0 1 0 -1 0 0 0 0 1 1-4ndis.dat
1 16 60 39 5 0 -1 0 1 0 0 0 0 1 1-4ndis.dat
0 BFC INVERTNEXT
1 16 56 39 5 0 4 0 1 0 0 0 0 1 1-4cylo.dat
1 16 56 39 5 0 1 0 1 0 0 0 0 1 1-4ndis.dat
1 16 58 24 6 0 0 2 15 0 0 0 1 0 rect2p.dat
4 16 56 9 6 56 2 10 56 40 10 56 39 6
3 16 56 40 10 56 40 6 56 39 6
3 16 56 2 10 56 9 6 56 8 6
4 16 56 2 10 60 0 10 60 48 10 56 40 10
4 16 60 39 6 60 48 10 60 0 10 60 9 6
3 16 60 39 6 60 40 6 60 48 10
3 16 60 8 6 60 9 6 60 0 10
2 24 60 0 10 60 48 10
2 24 56 2 10 56 40 10
2 24 56 40 5 56 40 10
0 // right front pillar
1 16 -58 24 -20.5 0 0 2 15 0 0 -7.5 1.5 0 box2-9p.dat
0 BFC INVERTNEXT
1 16 -56 39 -25.5 0 -4 0 1 0 0 0 0 -1 1-4cylo.dat
5 24 -56 39 -26.5 -60 39 -26.5 -60 39.3827 -26.4239 -60 9 -11.5
1 16 -60 39 -25.5 0 1 0 1 0 0 0 0 -1 1-4ndis.dat
1 16 -56 39 -25.5 0 -1 0 1 0 0 0 0 -1 1-4ndis.dat
1 16 -58 8.5 -10.75 0 0 -2 .5 -1 0 -.75 0 0 rect2p.dat
1 16 -55.5 8.5 -12.75 -.5 0 0 .5 -1 0 -.25 0 1.5 rect2p.dat
1 16 -55.5 39.5 -28.25 -.5 0 0 -.5 1 0 .25 0 -1.5 rect2p.dat
4 16 -56 9 -14.5 -60 0 -10 -60 40 -30 -56 39 -29.5
3 16 -55 8 -14 -60 0 -10 -56 9 -14.5
3 16 -56 39 -29.5 -60 40 -30 -55 40 -30
3 16 -60 8 -10 -60 9 -11.5 -60 0 -10
4 16 -60 0 -10 -60 9 -11.5 -60 39 -26.5 -60 40 -30
3 16 -56 39 -26.5 -56 40 -27 -56 40 -26.5
3 16 -55 40 -27 -56 40 -27 -56 39 -26.5
3 16 -56 2 -8 -56 9 -11.5 -56 8 -10
3 16 -56 9 -11.5 -56 2 -8 -55 8 -11
2 24 -60 40 -30 -60 0 -10
2 24 -56 2 -8 -56 9 -11.5
2 24 -56 39 -26.5 -56 40 -27
2 24 -56 40 -27 -56 40 -25.5
2 24 -56 40 -27 -55 40 -27
5 24 -60 9 -11.5 -56 9 -11.5 -56 39 -26.5 -56 8 -10
5 24 -60 8 -10 -56 8 -10 -56 9 -11.5 -60 8 5
5 24 -56 39 -29.5 -56 39 -26.5 -56 9 -14.5 -55 40 -27
5 24 -56 9 -11.5 -56 9 -14.5 -56 39 -29.5 -55 8 -14
5 24 -55 8 -11 -55 8 -14 -56 9 -14.5 -3 8 -14
5 24 -55 40 -27 -55 40 -30 -3 40 -30 -56 39 -26.5
0 // right rear pillar
1 16 -60 39 5 0 1 0 1 0 0 0 0 1 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -56 39 5 0 -4 0 1 0 0 0 0 1 1-4cylo.dat
1 16 -56 39 5 0 -1 0 1 0 0 0 0 1 1-4ndis.dat
1 16 -60 9 5 0 1 0 -1 0 0 0 0 1 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -56 9 5 0 -4 0 -1 0 0 0 0 1 1-4cylo.dat
1 16 -56 9 5 0 -1 0 -1 0 0 0 0 1 1-4ndis.dat
1 16 -58 24 6 0 0 2 15 0 0 0 1 0 rect2p.dat
4 16 -60 9 6 -60 0 10 -60 48 10 -60 39 6
4 16 -56 39 6 -56 40 10 -56 2 10 -56 9 6
4 16 -56 40 10 -60 48 10 -60 0 10 -56 2 10
3 16 -60 40 6 -60 39 6 -60 48 10
3 16 -60 9 6 -60 8 6 -60 0 10
3 16 -56 8 6 -56 9 6 -56 2 10
3 16 -56 39 6 -56 40 6 -56 40 10
2 24 -60 0 10 -60 48 10
2 24 -56 2 10 -56 40 10
2 24 -56 40 5 -56 40 10
0 // top center
0 BFC INVERTNEXT
1 16 0 1 0 0 0 40 1 0 0 0 -3 0 box3u4a.dat
1 16 29 8 -12.5 26 0 0 0 -1 0 0 0 -1.5 rect2p.dat
1 16 -29 8 -12.5 -26 0 0 0 -1 0 0 0 1.5 rect2p.dat
4 16 40 2 -3 56 2 -8 -56 2 -8 -40 2 -3
4 16 -40 0 -3 -60 0 -10 60 0 -10 40 0 -3
3 16 55 8 -14 60 0 -10 3 8 -14
4 16 3 8 -14 60 0 -10 -60 0 -10 -3 8 -14
3 16 -3 8 -14 -60 0 -10 -55 8 -14
3 16 -55 8 -11 -56 2 -8 -3 8 -11
4 16 56 2 -8 3 8 -11 -3 8 -11 -56 2 -8
3 16 3 8 -11 56 2 -8 55 8 -11
2 24 60 0 -10 -60 0 -10
2 24 -56 2 -8 56 2 -8
0 // top left
1 16 50 2 0 -10 0 0 0 -1 0 0 0 10 1-4chrd.dat
1 16 50 0 0 -10 0 0 0 2 0 0 0 10 1-4cylo.dat
1 16 50 0 0 -10 0 0 0 1 0 0 0 10 1-4chrd.dat
1 16 58 8 -2.5 0 0 2 0 -1 0 7.5 0 0 rect2p.dat
4 16 40 2 0 50 2 10 56 2 -8 40 2 -3
3 16 56 2 10 56 2 -8 50 2 10
4 16 50 2 10 50 0 10 60 0 10 56 2 10
4 16 40 0 -3 60 0 -10 50 0 10 40 0 0
3 16 50 0 10 60 0 -10 60 0 10
4 16 60 8 5 60 0 10 60 0 -10 60 8 -10
3 16 60 8 5 60 8 6 60 0 10
4 16 56 8 -10 56 2 -8 56 2 10 56 8 5
3 16 56 8 6 56 8 5 56 2 10
2 24 60 0 10 60 0 -10
2 24 56 2 10 56 2 -8
2 24 56 2 10 50 2 10
2 24 50 0 10 60 0 10
0 // top right
1 16 -50 2 0 10 0 0 0 -1 0 0 0 10 1-4chrd.dat
1 16 -50 0 0 0 0 10 0 2 0 10 0 0 1-4cylo.dat
1 16 -50 0 0 10 0 0 0 1 0 0 0 10 1-4chrd.dat
1 16 -58 8 -2.5 0 0 2 0 -1 0 7.5 0 0 rect2p.dat
3 16 -50 2 10 -56 2 -8 -56 2 10
4 16 -40 2 -3 -56 2 -8 -50 2 10 -40 2 0
4 16 -56 2 10 -60 0 10 -50 0 10 -50 2 10
3 16 -60 0 10 -60 0 -10 -50 0 10
4 16 -40 0 0 -50 0 10 -60 0 -10 -40 0 -3
4 16 -56 8 5 -56 2 10 -56 2 -8 -56 8 -10
3 16 -56 8 5 -56 8 6 -56 2 10
4 16 -60 8 -10 -60 0 -10 -60 0 10 -60 8 5
3 16 -60 8 6 -60 8 5 -60 0 10
2 24 -60 0 10 -60 0 -10
2 24 -56 2 10 -56 2 -8
2 24 -50 2 10 -56 2 10
2 24 -50 0 10 -60 0 10
0 // bottom center
1 16 42 46 0 2 0 0 0 0 2 0 -1 0 rect.dat
1 16 -42 46 0 2 0 0 0 0 2 0 -1 0 rect.dat
1 16 0 44 -10 40 0 0 0 0 4 0 -1 0 rect.dat
1 16 0 46 0 0 0 44 2 0 0 0 -14 0 box3u4a.dat
0 BFC INVERTNEXT
1 16 0 46 6 0 0 56 2 0 0 0 -32 0 box3u4a.dat
1 16 0 44 -20 1 0 0 0 -1 0 0 0 1 stug3-1x5.dat
1 16 29 40 -28.5 0 0 26 0 1 0 -1.5 0 0 rect1.dat
1 16 -29 40 -28.5 0 0 26 0 1 0 -1.5 0 0 rect1.dat
4 16 -40 44 0 -40 40 -10 -40 48 -10 -40 48 0
4 16 40 48 -10 40 40 -10 40 44 0 40 48 0
4 16 40 48 -10 40 48 0 44 48 0 44 48 -14
4 16 44 48 -14 -44 48 -14 -40 48 -10 40 48 -10
4 16 -44 48 -14 -44 48 0 -40 48 0 -40 48 -10
4 16 44 44 -14 56 44 -26 -56 44 -26 -44 44 -14
4 16 -60 48 -30 -56 48 -26 56 48 -26 60 48 -30
3 16 60 40 -30 55 40 -30 60 48 -30
3 16 60 48 -30 55 40 -30 3 40 -30
4 16 -60 48 -30 60 48 -30 3 40 -30 -3 40 -30
3 16 -60 48 -30 -3 40 -30 -55 40 -30
3 16 -60 48 -30 -55 40 -30 -60 40 -30
3 16 -40 40 -10 -55 40 -27 -3 40 -27
4 16 40 40 -10 -40 40 -10 -3 40 -27 3 40 -27
3 16 40 40 -10 3 40 -27 55 40 -27
2 24 60 40 -30 55 40 -30
2 24 -55 40 -30 -60 40 -30
2 24 -60 48 -30 60 48 -30
2 24 60 40 -30 60 48 -30
2 24 -60 40 -30 -60 48 -30
2 24 40 48 -10 40 48 0
2 24 -40 48 -10 -40 48 0
0 // bottom left
1 16 58 40 -10.25 2 0 0 0 1 0 0 0 15.25 rect1.dat
1 16 50 44 -10 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 40 44 10 0 0 10 0 -1 0 -10 0 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 40 40 10 10 0 0 0 4 0 0 0 -10 1-4cylo.dat
1 16 40 40 10 0 0 10 0 1 0 -10 0 0 1-4ndis.dat
1 16 53 46 8 0 -3 0 2 0 0 0 0 -2 box2-5.dat
4 16 55 40 -27 56 40 -27 56 40 -25.5 40 40 -10
4 16 50 40 0 40 40 0 40 40 -10 56 40 -25.5
3 16 56 40 -25.5 56 40 5 50 40 0
4 16 56 40 6 50 40 10 50 40 0 56 40 5
3 16 50 40 10 56 40 6 56 40 10
3 16 40 40 -10 40 40 0 40 44 0
3 16 50 40 10 56 40 10 50 44 10
4 16 60 48 10 50 48 10 50 44 10 56 40 10
4 16 60 48 10 60 40 5 60 40 -25.5 60 48 -30
3 16 60 40 -25.5 60 40 -26.5 60 48 -30
3 16 60 40 6 60 40 5 60 48 10
4 16 60 48 10 56 48 6 50 48 6 50 48 10
4 16 60 48 -30 56 48 -26 56 48 6 60 48 10
4 16 50 44 6 56 44 6 56 44 -26 50 44 0
4 16 50 44 0 56 44 -26 44 44 -14 44 44 0
4 16 60 48 -30 60 40 -26.5 60 39 -26.5 60 40 -30
2 24 40 40 -10 40 40 0
2 24 40 40 0 40 44 0
2 24 50 40 10 56 40 10
2 24 50 40 10 50 44 10
2 24 60 48 10 50 48 10
2 24 60 48 10 60 48 -30
0 // bottom right
1 16 -58 40 -10.25 -2 0 0 0 1 0 0 0 15.25 rect1.dat
1 16 -50 44 -10 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 -40 44 10 -10 0 0 0 -1 0 0 0 -10 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -40 40 10 0 0 -10 0 4 0 -10 0 0 1-4cylo.dat
1 16 -40 40 10 -10 0 0 0 1 0 0 0 -10 1-4ndis.dat
1 16 -53 46 8 0 3 0 2 0 0 0 0 -2 box2-5.dat
4 16 -55 40 -27 -40 40 -10 -56 40 -25.5 -56 40 -27
4 16 -50 40 0 -56 40 -25.5 -40 40 -10 -40 40 0
3 16 -56 40 5 -56 40 -25.5 -50 40 0
4 16 -56 40 6 -56 40 5 -50 40 0 -50 40 10
3 16 -56 40 6 -50 40 10 -56 40 10
3 16 -40 40 -10 -40 44 0 -40 40 0
3 16 -50 40 10 -50 44 10 -56 40 10
4 16 -56 40 10 -50 44 10 -50 48 10 -60 48 10
4 16 -60 48 10 -56 48 6 -56 48 -26 -60 48 -30
4 16 -50 48 10 -50 48 6 -56 48 6 -60 48 10
4 16 -44 44 -14 -56 44 -26 -50 44 0 -44 44 0
4 16 -50 44 6 -50 44 0 -56 44 -26 -56 44 6
4 16 -60 48 -30 -60 40 -25.5 -60 40 5 -60 48 10
3 16 -60 40 5 -60 40 6 -60 48 10
3 16 -60 40 -26.5 -60 40 -25.5 -60 48 -30
4 16 -60 40 -30 -60 39 -26.5 -60 40 -26.5 -60 48 -30
2 24 -40 44 0 -40 40 0
2 24 -40 40 0 -40 40 -10
2 24 -50 40 10 -50 44 10
2 24 -50 48 10 -60 48 10
2 24 -50 40 10 -56 40 10
2 24 -60 48 -30 -60 48 10
0 // And finally, studs
1 16 -50 0 0 -1 0 0 0 1 0 0 0 -1 stud2.dat
1 16 50 0 0 -1 0 0 0 1 0 0 0 -1 stud2.dat
Status:
Needs More Votes (F)
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Deanna Earley
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Rene Rechthaler,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
(should the slanted rects get replaced with slanted cylos? what radius should these use?
are 6567 and 13760/13756 even identical?)
