Unofficial File parts/27925p03.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

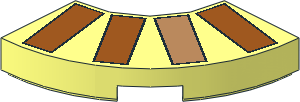

0 Tile 2 x 2 Corner Round with Medium Nougat and Dark Orange Bricks Pattern
0 Name: 27925p03.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Tile
0 !KEYWORDS Bag End, BrickLink 27925pb022, Hobbiton, LOTR, Masonry, medieval
0 !KEYWORDS Middle-earth, Rebrickable 27925pr0020, Set 10354
0 !KEYWORDS the lord of the rings, The Shire, Tolkien, WindowShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\27925s01.dat
1 16 -10 0 10 0 0 40 0 1 0 -40 0 0 48\1-4aring.dat
1 16 -10 0 10 0 0 20 0 1 0 -20 0 0 1-4tang.dat
0 // Pattern
0 // Colour 0 Black
3 0 9.905 0 2.982 10 0 6.022 9.317 0 2.589
3 0 5.704 0 -4.101 6.956 0 -1.33 5.011 0 -4.239
3 0 -.888 0 -9.038 1.33 0 -6.956 -1.581 0 -8.9
3 0 -8.867 0 -11.076 -6.022 0 -10 -9.455 0 -10.683
4 0 .989 0 -27.304 .401 0 -26.912 -5.484 0 -28.082 -5.877 0 -28.67
4 0 -9.455 0 -10.683 -5.877 0 -28.67 -5.484 0 -28.082 -8.867 0 -11.076
4 0 -2.982 0 -9.905 .401 0 -26.912 .989 0 -27.304 -2.589 0 -9.317
4 0 -.888 0 -9.038 -1.581 0 -8.9 8.608 0 -24.148 8.746 0 -23.455
4 0 8.746 0 -23.455 8.608 0 -24.148 14.428 0 -20.26 13.735 0 -20.122
4 0 4.101 0 -5.704 13.735 0 -20.122 14.428 0 -20.26 4.239 0 -5.011
4 0 20.259 0 -14.428 20.122 0 -13.735 5.704 0 -4.101 5.011 0 -4.239
4 0 23.455 0 -8.746 20.122 0 -13.735 20.259 0 -14.428 24.148 0 -8.608
4 0 23.455 0 -8.746 24.148 0 -8.608 8.9 0 1.581 9.038 0 .888
4 0 27.304 0 -.989 26.912 0 -.401 9.905 0 2.982 9.317 0 2.589
4 0 28.082 0 5.484 26.912 0 -.401 27.304 0 -.989 28.67 0 5.877
4 0 28.082 0 5.484 28.67 0 5.877 10.683 0 9.454 11.076 0 8.867
4 0 9.905 0 2.982 11.076 0 8.867 10.683 0 9.454 10 0 6.022
4 0 5.704 0 -4.101 9.038 0 .888 8.9 0 1.581 6.956 0 -1.33
4 0 -.888 0 -9.038 4.101 0 -5.704 4.239 0 -5.011 1.33 0 -6.956
4 0 -2.589 0 -9.317 -6.022 0 -10 -8.867 0 -11.076 -2.982 0 -9.905
0 // Colour 16 Main Colour
3 16 8.9 0 1.581 8.478 0 2.346 6.956 0 -1.33
3 16 4.239 0 -5.011 4.142 0 -4.142 1.33 0 -6.956
3 16 -2.589 0 -9.317 -2.346 0 -8.478 -6.022 0 -10
3 16 -10 0 -10 -9.455 0 -10.683 -6.022 0 -10
3 16 -2.589 0 -9.317 8.608 0 -24.148 -1.581 0 -8.9
3 16 14.428 0 -20.26 18.284 0 -18.284 20.259 0 -14.428
3 16 10 0 10 10 0 6.022 10.683 0 9.454
3 16 24.148 0 -8.608 26.956 0 -5.308 27.304 0 -.989
4 16 -5.877 0 -28.67 -10 0 -30 5.308 0 -26.956 .989 0 -27.304
4 16 -5.877 0 -28.67 -9.455 0 -10.683 -10 0 -10 -10 0 -30
4 16 5.308 0 -26.956 8.608 0 -24.148 -2.589 0 -9.317 .989 0 -27.304
4 16 18.284 0 -18.284 14.428 0 -20.26 8.608 0 -24.148 5.308 0 -26.956
4 16 20.259 0 -14.428 5.011 0 -4.239 4.239 0 -5.011 14.428 0 -20.26
4 16 24.148 0 -8.608 20.259 0 -14.428 18.284 0 -18.284 26.956 0 -5.308
4 16 8.9 0 1.581 24.148 0 -8.608 27.304 0 -.989 9.317 0 2.589
4 16 10 0 10 10.683 0 9.454 28.67 0 5.877 30 0 10
4 16 26.956 0 -5.308 30 0 10 28.67 0 5.877 27.304 0 -.989
4 16 10 0 6.022 8.478 0 2.346 8.9 0 1.581 9.317 0 2.589
4 16 4.239 0 -5.011 5.011 0 -4.239 6.956 0 -1.33 4.142 0 -4.142
4 16 -2.589 0 -9.317 -1.581 0 -8.9 1.33 0 -6.956 -2.346 0 -8.478
0 // Colour 84 Medium Nougat
4 84 20.122 0 -13.735 23.455 0 -8.746 9.038 0 .888 5.704 0 -4.101
0 // Colour 484 Dark Orange
4 484 .401 0 -26.912 -2.982 0 -9.905 -8.867 0 -11.076 -5.484 0 -28.082
4 484 8.746 0 -23.455 13.735 0 -20.122 4.101 0 -5.704 -.888 0 -9.038
4 484 11.076 0 8.867 9.905 0 2.982 26.912 0 -.401 28.082 0 5.484Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesPart Dependencies
Official parents and subparts
Part Events
Chris Böhnke [KnightOfTarenta]
initially submitted the part.
2025-04-03 19:10:54
Chris Böhnke [KnightOfTarenta]
edited the part header.
2025-04-03 19:12:36
Header Edits
keywords:
Bag End, Hobbiton, LOTR, Masonry, medieval, Middle-earth, Rebrickable 27507pr0009, Set 10354, the lord of the rings, The Shire, Tolkien, Window
to
Bag End, Hobbiton, LOTR, Masonry, Middle Earth, Rebrickable 27507pr0009, Set 10354, The Shire, Tolkien, Window, medieval, the lord of the rings
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2025-04-03 22:19:24
the quads along the tang prim should get split at the center vertex, as of now it creates t-junk+gaps
Chris Böhnke [KnightOfTarenta]
submitted a new version of the part (all votes reset).
2025-04-03 23:41:32
This tile is bordered by Dark Orange slopes/tiles which seem to be intended to match this.
