Unofficial File parts/s/5121s01.dat
File Header:

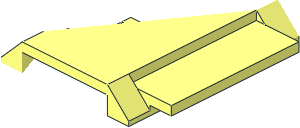

0 ~Slope Brick 45 6 x 8 Double with 1 x 6 Extension - One Half
0 Name: s\5121s01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Primitives
1 16 50 24 0 0 0 10 0 1 0 80 0 0 recte4.dat
1 16 50 24 0 0 0 6 0 1 0 76 0 0 recte4.dat
1 16 50 18 -60 4 0 0 0 -4 0 0 0 -4 2-4cyls.dat
1 16 50 18 -60 4 0 0 0 -4 0 0 0 4 1-4cyls.dat
1 16 50 18 -60 1 0 0 0 -1 0 0 0 1 stud3a.dat
1 16 50 18 60 4 0 0 0 -4 0 0 0 -4 1-4cyls.dat
1 16 50 18 60 4 0 0 0 -4 0 0 0 4 2-4cyls.dat
1 16 50 18 60 1 0 0 0 -1 0 0 0 1 stud3a.dat
1 16 70 16 0 0 0 10 0 1 0 -60 0 0 recte3.dat
0 BFC INVERTNEXT
1 16 68 16 0 0 0 8 0 -4 0 56 0 0 box4-4a.dat
1 16 56 16 0 0 1 0 -4 0 0 0 0 56 rect2p.dat
1 16 50 14 -60 0 0 4 0 1 4 4 0 0 3-4edge.dat
1 16 60 14 -52 0 -1 0 0 0 -2 4 0 0 rect3.dat
1 16 60 14 -40 0 -1 0 0 0 -2 6 0 0 rect3.dat
1 16 60 14 -30 0 -1 0 0 0 -2 2 0 0 rect3.dat
1 16 60 14 -20 0 -1 0 0 0 -2 6 0 0 rect3.dat
1 16 60 14 -10 0 -1 0 0 0 -2 2 0 0 rect3.dat
1 16 60 14 0 0 -1 0 0 0 -2 6 0 0 rect3.dat
1 16 60 14 10 0 -1 0 0 0 -2 2 0 0 rect3.dat
1 16 60 14 20 0 -1 0 0 0 -2 6 0 0 rect3.dat
1 16 60 14 30 0 -1 0 0 0 -2 2 0 0 rect3.dat
1 16 60 14 40 0 -1 0 0 0 -2 6 0 0 rect3.dat
1 16 60 14 52 0 -1 0 0 0 -2 4 0 0 rect3.dat
1 16 50 14 60 0 0 4 0 1 4 -4 0 0 3-4edge.dat
1 16 50 12 -60 -4 0 0 0 1 0 0 0 4 1-4edge.dat
1 16 50 12 -60 -4 0 0 0 6 0 0 0 4 1-4cyli.dat
1 16 60 12 -40 0 0 1 0 -1 0 -1 0 0 2-4stud4.dat
1 16 60 12 -20 0 0 1 0 -1 0 -1 0 0 2-4stud4.dat
1 16 64 12 0 0 0 16 0 -4 0 60 0 0 box2-7.dat
1 16 60 12 0 0 0 1 0 -1 0 -1 0 0 2-4stud4.dat
1 16 53 12 0 0 0 3 0 -1 0 56 0 0 rect3.dat
1 16 50 12 0 0 0 1 0 -3 0 -1 0 0 stug3-1x5.dat
1 16 60 12 20 0 0 1 0 -1 0 -1 0 0 2-4stud4.dat
1 16 60 12 40 0 0 1 0 -1 0 -1 0 0 2-4stud4.dat
1 16 50 12 60 -4 0 0 0 1 0 0 0 -4 1-4edge.dat
1 16 50 12 60 -4 0 0 0 6 0 0 0 -4 1-4cyli.dat
1 16 44 10.5 0 0 1 0 0 0 1.5 60 0 0 recte3.dat
1 16 44.5 9 -68 .5 0 0 0 -1 0 0 0 8 rect.dat
1 16 44.5 9 68 .5 0 0 0 -1 0 0 0 -8 rect.dat
1 16 0 8 -78 40 0 0 0 -1 0 0 0 -2 rect3.dat
0 BFC INVERTNEXT
1 16 0 8 -70 0 0 -40 0 -4 0 -6 0 0 box5-2p.dat
0 BFC INVERTNEXT
1 16 28 8 -50.5 0 0 -8 0 -4 0 -9.5 0 0 box5-1.dat
0 BFC INVERTNEXT
1 16 -28 8 -50.5 0 0 8 0 -4 0 -9.5 0 0 box5-1.dat
1 16 28 8 -40 8 0 0 0 -1 0 0 0 -1 rect1.dat
1 16 -28 8 -40 -8 0 0 0 -1 0 0 0 -1 rect1.dat
0 BFC INVERTNEXT
1 16 28 8 -20 0 0 -8 0 -4 0 -19 0 0 box5-1.dat
1 16 38 8 0 2 0 0 0 4 0 0 0 -60 box3u2p.dat
1 16 28 8 0 8 0 0 0 -1 0 0 0 -1 rect1.dat
0 BFC INVERTNEXT
1 16 28 8 20 0 0 -8 0 -4 0 -19 0 0 box5-1.dat
1 16 0 6 -60 0 0 6 2 0 0 0 -1 0 rect.dat
0 BFC INVERTNEXT
1 16 12.5 6 -55.5 0 4.5 0 2 0 0 0 0 -4.5 box2-7.dat
0 BFC INVERTNEXT
1 16 -12.5 6 -55.5 0 -4.5 0 2 0 0 0 0 -4.5 box2-7.dat
1 16 17 6 -50 0 -1 0 0 0 2 1 0 0 box4-2p.dat
1 16 -17 6 -50 0 1 0 0 0 2 1 0 0 box4-2p.dat
0 BFC INVERTNEXT
1 16 12.5 6 -45 0 4.5 0 2 0 0 0 0 4 box2-7.dat
0 BFC INVERTNEXT
1 16 -12.5 6 -45 0 -4.5 0 2 0 0 0 0 4 box2-7.dat
0 BFC INVERTNEXT
1 16 12.5 6 -35 0 4.5 0 2 0 0 0 0 -4 box2-7.dat
0 BFC INVERTNEXT
1 16 -12.5 6 -35 0 -4.5 0 2 0 0 0 0 -4 box2-7.dat
1 16 17 6 -30 0 -1 0 0 0 2 1 0 0 box4-2p.dat
1 16 -17 6 -30 0 1 0 0 0 2 1 0 0 box4-2p.dat
0 BFC INVERTNEXT
1 16 16.5 6 -20 0 0 .5 0 -2 0 -9 0 0 box2-11.dat
0 BFC INVERTNEXT
1 16 -16.5 6 -20 0 0 -.5 0 -2 0 -9 0 0 box2-11.dat
1 16 17 6 -10 0 -1 0 0 0 2 1 0 0 box4-2p.dat
1 16 -17 6 -10 0 1 0 0 0 2 1 0 0 box4-2p.dat
0 BFC INVERTNEXT
1 16 12.5 6 -5 0 4.5 0 2 0 0 0 0 4 box2-7.dat
0 BFC INVERTNEXT
1 16 -12.5 6 -5 0 -4.5 0 2 0 0 0 0 4 box2-7.dat
1 16 38 4 -70 0 0 -2 0 4 0 -1 0 0 box4-1.dat
1 16 0 4 -70 1 0 0 0 -1 0 0 0 -1 stug3-1x3.dat
1 16 -38 4 -70 0 0 2 0 4 0 -1 0 0 box4-1.dat
1 16 0 4 -60 1 0 0 0 -1 0 0 0 1 2-4stud4.dat
1 16 0 4 -40 1 0 0 0 -1 0 0 0 1 stud4f2n.dat
1 16 0 4 -40 6 0 0 0 -1 0 0 0 6 4-4edge.dat
1 16 0 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 44 4 0 0 0 -4 0 1 -4 60 0 0 recte3.dat
0 BFC INVERTNEXT
1 16 44 4 0 0 0 -4 0 4 0 60 0 0 box2-7.dat
1 16 0 0 -70 40 0 0 0 1 0 0 0 -10 rect3.dat
0 // Faces
4 16 60 24 -80 60 24 80 60 16 6 60 16 -6
3 16 60 24 -80 60 16 -6 60 16 -8
4 16 40 24 -80 40 24 80 44 24 76 44 24 -76
4 16 40 24 -80 44 24 -76 56 24 -76 60 24 -80
4 16 60 24 80 56 24 76 44 24 76 40 24 80
4 16 60 24 80 60 24 -80 56 24 -76 56 24 76
4 16 40 24 -80 40 12 -60 40 12 60 40 24 80
4 16 40 24 -80 40 8 -64 40 8 -60 40 12 -60
3 16 40 24 -80 40 8 -69 40 8 -64
3 16 40 24 -80 40 8 -71 40 8 -69
3 16 40 24 -80 40 8 -76 40 8 -71
3 16 40 24 -80 40 8 -80 40 8 -76
4 16 40 24 -80 60 24 -80 60 20 -80 40 8 -80
4 16 -40 24 -80 -40 12 -60 -40 8 -60 -40 8 -64
3 16 -40 24 -80 -40 8 -64 -40 8 -69
3 16 -40 24 -80 -40 8 -69 -40 8 -71
3 16 -40 24 -80 -40 8 -71 -40 8 -76
3 16 -40 24 -80 -40 8 -76 -40 8 -80
4 16 -40 24 -80 -40 8 -80 -60 20 -80 -60 24 -80
4 16 44 24 -76 44 9 -76 56 20 -76 56 24 -76
4 16 44 24 -76 44 12 -60 44 9 -60 44 9 -76
4 16 44 24 -76 44 24 76 44 12 60 44 12 -60
4 16 44 24 76 44 9 76 44 9 60 44 12 60
4 16 44 24 76 56 24 76 56 20 76 44 9 76
3 16 60 24 80 60 16 8 60 16 6
3 16 60 20 -60 60 20 -80 60 24 -80
4 16 60 20 -60 60 24 -80 60 16 -8 60 16 -12
3 16 60 20 -60 60 16 -12 60 16 -14
3 16 60 20 -60 60 16 -14 60 16 -26
3 16 60 20 -60 60 16 -26 60 16 -28
3 16 60 20 -60 60 16 -28 60 16 -32
3 16 60 20 -60 60 16 -32 60 16 -34
3 16 60 20 -60 60 16 -34 60 16 -46
3 16 60 20 -60 60 16 -46 60 16 -48
3 16 60 20 -60 60 16 -48 60 16 -56
3 16 60 20 -60 60 16 -56 60 16 -60
3 16 60 20 -60 60 16 -60 48 8 -60
4 16 60 20 -60 48 8 -60 40 0 -80 60 20 -80
3 16 56 20 -56 56 24 -76 56 20 -76
4 16 56 20 -56 56 20 56 56 24 76 56 24 -76
4 16 56 20 -56 56 20 -76 50 14 -60 50 14 -56
4 16 56 20 -56 50 14 -56 50 12 -56 56 12 -56
3 16 56 20 56 56 20 76 56 24 76
4 16 56 20 56 50 14 56 50 14 60 56 20 76
4 16 56 20 56 56 12 56 50 12 56 50 14 56
3 16 60 20 60 60 24 80 60 20 80
4 16 60 20 60 60 16 12 60 16 8 60 24 80
3 16 60 20 60 60 16 14 60 16 12
3 16 60 20 60 60 16 26 60 16 14
3 16 60 20 60 60 16 28 60 16 26
3 16 60 20 60 60 16 32 60 16 28
3 16 60 20 60 60 16 34 60 16 32
3 16 60 20 60 60 16 46 60 16 34
3 16 60 20 60 60 16 48 60 16 46
3 16 60 20 60 60 16 56 60 16 48
3 16 60 20 60 60 16 60 60 16 56
3 16 60 20 60 48 8 60 60 16 60
4 16 60 20 60 60 20 80 40 0 80 48 8 60
4 16 80 16 -60 76 16 -56 76 16 56 80 16 60
4 16 80 16 -60 60 16 -60 60 16 -56 76 16 -56
4 16 80 16 -60 80 8 -60 48 8 -60 60 16 -60
4 16 80 16 60 76 16 56 60 16 56 60 16 60
4 16 80 16 60 60 16 60 48 8 60 80 8 60
3 16 44 12 -60 50 12 -56 46 12 -60
4 16 44 12 -60 44 12 60 50 12 56 50 12 -56
3 16 44 12 -60 46 12 -60 46 10 -60
4 16 44 12 -60 46 10 -60 45 9 -60 44 9 -60
3 16 36 12 -60 36 8 -60 36 8 -41
4 16 36 12 0 36 12 -60 36 8 -41 36 8 -39
3 16 36 12 0 36 8 -39 36 8 -1
3 16 36 12 0 36 8 -1 36 8 1
3 16 36 12 0 36 8 1 36 8 39
4 16 36 12 0 36 8 39 36 8 41 36 12 60
3 16 36 12 60 36 8 41 36 8 60
3 16 44 12 60 46 12 60 50 12 56
3 16 44 12 60 46 10 60 46 12 60
4 16 44 12 60 44 9 60 45 9 60 46 10 60
3 16 45 9 -76 56 20 -76 44 9 -76
4 16 45 9 -76 45 9 -60 50 14 -60 56 20 -76
3 16 45 9 76 44 9 76 56 20 76
4 16 45 9 76 56 20 76 50 14 60 45 9 60
3 16 40 8 -80 60 20 -80 40 0 -80
4 16 40 8 -80 40 0 -80 -40 0 -80 -40 8 -80
3 16 -40 8 -80 -40 0 -80 -60 20 -80
3 16 40 8 -60 40 8 -64 36 8 -60
3 16 40 8 -64 20 8 -60 36 8 -60
3 16 40 8 -64 17 8 -60 20 8 -60
3 16 40 8 -64 8 8 -60 17 8 -60
3 16 40 8 -64 6 8 -60 8 8 -60
4 16 40 8 -64 -40 8 -64 -6 8 -60 6 8 -60
3 16 20 8 -60 17 8 -60 17 8 -51
4 16 20 8 -60 17 8 -51 17 8 -49 20 8 -41
3 16 17 8 -41 20 8 -41 17 8 -49
4 16 17 8 -41 17 8 -39 20 8 -39 20 8 -41
4 16 17 8 -41 8 8 -41 8 8 -39 17 8 -39
3 16 20 8 -39 17 8 -39 17 8 -31
3 16 20 8 -39 17 8 -31 17 8 -29
4 16 20 8 -39 17 8 -29 17 8 -11 20 8 -1
3 16 20 8 -1 17 8 -11 17 8 -9
3 16 20 8 -1 17 8 -9 17 8 -1
4 16 20 8 -1 17 8 -1 17 8 1 20 8 1
4 16 17 8 -1 8 8 -1 8 8 1 17 8 1
3 16 -20 8 -1 -17 8 -9 -17 8 -11
3 16 -20 8 -1 -17 8 -1 -17 8 -9
3 16 -20 8 -39 -17 8 -31 -17 8 -39
3 16 -20 8 -39 -17 8 -29 -17 8 -31
4 16 -20 8 -39 -20 8 -1 -17 8 -11 -17 8 -29
3 16 -17 8 -41 -17 8 -49 -20 8 -41
4 16 -17 8 -41 -20 8 -41 -20 8 -39 -17 8 -39
4 16 -17 8 -41 -17 8 -39 -8 8 -39 -8 8 -41
3 16 -20 8 -60 -17 8 -51 -17 8 -60
4 16 -20 8 -60 -20 8 -41 -17 8 -49 -17 8 -51
3 16 -40 8 -64 -8 8 -60 -6 8 -60
3 16 -40 8 -64 -17 8 -60 -8 8 -60
3 16 -40 8 -64 -20 8 -60 -17 8 -60
3 16 -40 8 -64 -36 8 -60 -20 8 -60
3 16 -40 8 -64 -40 8 -60 -36 8 -60
4 16 16 4 -51 17 4 -51 17 4 -60 8 4 -60
4 16 16 4 -51 8 4 -60 -8 4 -60 -16 4 -51
4 16 16 4 -51 -16 4 -51 -7.8011 4 -41 7.8011 4 -41
4 16 16 4 -51 7.8011 4 -41 8 4 -41 16 4 -49
4 16 -16 4 -51 -8 4 -60 -17 4 -60 -17 4 -51
4 16 -16 4 -51 -16 4 -49 -8 4 -41 -7.8011 4 -41
4 16 8 4 -41 17 4 -41 17 4 -49 16 4 -49
4 16 -8 4 -41 -16 4 -49 -17 4 -49 -17 4 -41
4 16 8 4 -39 16 4 -31 17 4 -31 17 4 -39
4 16 7.8011 4 -39 7.8011 4 -41 -7.8011 4 -41 -7.8011 4 -39
4 16 7.8011 4 -39 -7.8011 4 -39 -16 4 -29 16 4 -29
4 16 7.8011 4 -39 16 4 -29 16 4 -31 8 4 -39
4 16 -7.8011 4 -39 -8 4 -39 -16 4 -31 -16 4 -29
4 16 -8 4 -39 -17 4 -39 -17 4 -31 -16 4 -31
4 16 16 4 -11 16 4 -29 -16 4 -29 -16 4 -11
3 16 16 4 -11 -16 4 -11 7.8011 4 -1
4 16 16 4 -11 7.8011 4 -1 8 4 -1 16 4 -9
4 16 -16 4 -11 -7.8011 4 -1 7.8011 4 1 7.8011 4 -1
4 16 -16 4 -11 -16 4 -9 -8 4 -1 -7.8011 4 -1
4 16 8 4 -1 17 4 -1 17 4 -9 16 4 -9
4 16 -8 4 -1 -16 4 -9 -17 4 -9 -17 4 -1
3 16 40 0 -60 48 8 -60 40 8 -60
3 16 40 0 -60 40 0 -80 48 8 -60
3 16 40 0 -60 40 0 60 -40 0 -60
3 16 40 0 60 40 8 60 48 8 60
3 16 40 0 60 48 8 60 40 0 80
0 // Edges
2 24 60 24 -80 60 20 -80
2 24 40 24 -80 40 8 -80
2 24 56 24 -76 56 20 -76
2 24 44 24 -76 44 9 -76
2 24 56 24 76 56 20 76
2 24 44 24 76 44 9 76
2 24 60 24 80 60 20 80
2 24 40 24 80 40 8 80
2 24 60 20 -80 40 0 -80
2 24 -60 20 -80 -40 0 -80
2 24 60 20 -80 60 20 -60
2 24 -60 20 -80 -60 20 -60
2 24 56 20 -76 45 9 -76
2 24 56 20 -76 56 20 -56
2 24 60 20 -60 60 16 -60
2 24 60 20 -60 48 8 -60
2 24 56 20 -56 50 14 -56
2 24 56 20 56 50 14 56
2 24 56 20 56 56 20 76
2 24 60 20 60 60 16 60
2 24 60 20 60 48 8 60
2 24 56 20 76 45 9 76
2 24 60 16 -60 60 16 -56
2 24 60 16 -48 60 16 -46
2 24 60 16 -34 60 16 -32
2 24 60 16 -28 60 16 -26
2 24 60 16 -14 60 16 -12
2 24 60 16 -8 60 16 -6
2 24 60 16 6 60 16 8
2 24 60 16 12 60 16 14
2 24 60 16 26 60 16 28
2 24 60 16 32 60 16 34
2 24 60 16 46 60 16 48
2 24 60 16 56 60 16 60
2 24 50 14 -56 50 12 -56
2 24 50 14 56 50 12 56
2 24 46 12 -60 46 10 -60
2 24 46 12 -60 44 12 -60
2 24 46 12 60 46 10 60
2 24 46 12 60 44 12 60
2 24 46 10 -60 45 9 -60
2 24 46 10 60 45 9 60
2 24 40 8 -64 40 8 -60
2 24 -40 8 -64 -40 8 -60
2 24 17 8 -29 17 8 -11
2 24 -17 8 -29 -17 8 -11
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2025-04-04 17:17:41
Rotated.
2025-08-27 20:44:33
could use an additional vertex at the center under the 5x 2-4stud4 to avoid long and thin triangles
2025-09-05 13:54:51
2025-09-06 10:23:20
(I meant the long thin triangles to the 2-4stud4 under the outer plate stub)
the internal ones are also good
the internal ones are also good
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
