Official File parts/87321.dat
Part Attributes:
File Header:

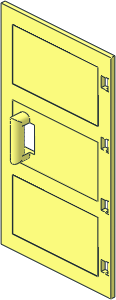

0 Duplo Door 1 x 4 x 6 with 3 Panes and Handle
0 Name: 87321.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Door
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
0 // perifery
1 16 -65.5 0 -2.5 -68 0 0 0 0 -122 0 5 0 box4.dat
0 // hinges
1 16 0 -31 0 -1 0 0 0 -1 0 0 0 1 ddoorhingepin.dat
1 16 0 31 0 -1 0 0 0 -1 0 0 0 1 ddoorhingepin.dat
1 16 0 -93 0 -1 0 0 0 -1 0 0 0 1 ddoorhingepin.dat
1 16 0 93 0 -1 0 0 0 -1 0 0 0 1 ddoorhingepin.dat
0 // front
0 BFC INVERTNEXT
1 16 -66.5 0 -2.5 -53 0 0 0 0 -30 0 .5 0 box4o4a.dat
1 16 -66.5 0 -2 -53 0 0 0 0 -30 0 1 0 recte4.dat
4 16 -119.5 30 -2.5 -119.5 -30 -2.5 -133.5 -122 -2.5 -133.5 122 -2.5
4 16 0 24.4 -2.5 0 -24.4 -2.5 -2.5 -24.4 -2.5 -2.5 24.4 -2.5
4 16 -3.2 24.4 -2.5 -2.5 24.4 -2.5 -2.5 -24.4 -2.5 -3.2 -24.4 -2.5
4 16 -3.2 24.4 -2.5 -3.2 -24.4 -2.5 -4.4 -25 -2.5 -4.4 25 -2.5
4 16 -9.5 25 -2.5 -4.4 25 -2.5 -4.4 -25 -2.5 -9.5 -25 -2.5
4 16 -13.5 -30 -2.5 -13.5 30 -2.5 -9.5 25 -2.5 -9.5 -25 -2.5
4 16 0 -37.6 -2.5 0 37.6 -2.5 2.5 122 -2.5 2.5 -122 -2.5
4 16 -92.5 15 -2 -13.5 30 -2 -13.5 -30 -2 -92.5 -15 -2
4 16 -116.5 15 -2 -116.5 -15 -2 -119.5 -30 -2 -119.5 30 -2
0 // handle and hole
1 16 -104.5 0 .5 -1 0 0 0 -1 0 0 0 1 s\18816s01.dat
1 16 -92.5 0 0 0 1 0 0 0 -15 2 0 0 rect2p.dat
1 16 -116.5 0 0 0 -1 0 0 0 -15 2 0 0 rect2p.dat
1 16 -104.5 0 2 -12 0 0 0 0 -15 0 1 0 recte4.dat
1 16 -95.5 0 -2 0 0 3 -15 0 0 0 1 0 recte3.dat
1 16 -113.5 0 -2 0 0 -3 -15 0 0 0 1 0 recte3.dat
2 24 -98.5 15 -5.5 -98.5 15 -2
2 24 -98.5 15 -2 -98.5 19 -2
2 24 -98.5 -15 -5.5 -98.5 -15 -2
2 24 -98.5 -15 -2 -98.5 -19 -2
2 24 -110.5 -19 -2 -110.5 -15 -2
2 24 -110.5 -15 -2 -110.5 -15 -5.5
2 24 -110.5 15 -5.5 -110.5 15 -2
2 24 -110.5 15 -2 -110.5 19 -2
3 16 -116.5 -15 -2 -116.5 -15 2 -110.5 -15 -2
3 16 -92.5 -15 2 -92.5 -15 -2 -98.5 -15 -2
3 16 -92.5 15 -2 -92.5 15 2 -98.5 15 -2
3 16 -116.5 15 2 -116.5 15 -2 -110.5 15 -2
3 16 -110.5 -15 -2 -110.5 -15 -5.5 -110.5 -19 -2
3 16 -110.5 15 -5.5 -110.5 15 -2 -110.5 19 -2
3 16 -98.5 19 -2 -98.5 15 -2 -98.5 15 -5.5
3 16 -98.5 -15 -5.5 -98.5 -15 -2 -98.5 -19 -2
4 16 -92.5 -15 2 -98.5 -15 -2 -110.5 -15 -2 -116.5 -15 2
4 16 -98.5 15 -2 -92.5 15 2 -116.5 15 2 -110.5 15 -2
4 16 -98.5 15 -2 -110.5 15 -2 -110.5 15 -5.5 -98.5 15 -5.5
4 16 -98.5 -15 -2 -98.5 -15 -5.5 -110.5 -15 -5.5 -110.5 -15 -2
1 16 -104.5 -19 -2 -6 0 0 0 0 -4 0 1 0 2-4ndis.dat
1 16 -104.5 19 -2 -6 0 0 0 0 4 0 1 0 2-4ndis.dat
4 16 -98.5 -15 -2 -92.5 -15 -2 -13.5 -30 -2 -98.5 -19 -2
3 16 -98.5 -23 -2 -98.5 -19 -2 -13.5 -30 -2
4 16 -98.5 -23 -2 -13.5 -30 -2 -119.5 -30 -2 -104.5 -23 -2
3 16 -104.5 -23 -2 -119.5 -30 -2 -110.5 -23 -2
3 16 -110.5 -23 -2 -119.5 -30 -2 -110.5 -19 -2
4 16 -116.5 -15 -2 -110.5 -15 -2 -110.5 -19 -2 -119.5 -30 -2
4 16 -110.5 19 -2 -110.5 15 -2 -116.5 15 -2 -119.5 30 -2
4 16 -13.5 30 -2 -92.5 15 -2 -98.5 15 -2 -98.5 19 -2
3 16 -98.5 19 -2 -98.5 23 -2 -13.5 30 -2
4 16 -119.5 30 -2 -13.5 30 -2 -98.5 23 -2 -104.5 23 -2
3 16 -119.5 30 -2 -104.5 23 -2 -110.5 23 -2
3 16 -119.5 30 -2 -110.5 23 -2 -110.5 19 -2
0 // symmetric quarters
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\87321s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\87321s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\87321s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\87321s01.dat
0 // back
0 BFC INVERTNEXT
1 16 -66.5 0 2.5 -53 0 0 0 0 -30 0 -.5 0 box4o4a.dat
1 16 -66.5 0 2 -53 0 0 0 0 -30 0 1 0 recte4.dat
4 16 -133.5 -122 2.5 -119.5 -30 2.5 -119.5 30 2.5 -133.5 122 2.5
4 16 -2.5 -24.4 2.5 0 -24.4 2.5 0 24.4 2.5 -2.5 24.4 2.5
4 16 -2.5 -24.4 2.5 -2.5 24.4 2.5 -3.2 24.4 2.5 -3.2 -24.4 2.5
4 16 -4.4 -25 2.5 -3.2 -24.4 2.5 -3.2 24.4 2.5 -4.4 25 2.5
4 16 -4.4 -25 2.5 -4.4 25 2.5 -9.5 25 2.5 -9.5 -25 2.5
4 16 -9.5 25 2.5 -13.5 30 2.5 -13.5 -30 2.5 -9.5 -25 2.5
4 16 2.5 122 2.5 0 37.6 2.5 0 -37.6 2.5 2.5 -122 2.5
4 16 -13.5 -30 2 -13.5 30 2 -92.5 15 2 -92.5 -15 2
4 16 -119.5 -30 2 -116.5 -15 2 -116.5 15 2 -119.5 30 2
4 16 -119.5 30 2 -116.5 15 2 -92.5 15 2 -13.5 30 2
4 16 -13.5 -30 2 -92.5 -15 2 -116.5 -15 2 -119.5 -30 2
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-04-06 09:00:18
2025-07-22 13:20:45
2025-07-22 22:50:15
Header Edits
category:
Duplo
to
Door
description:
Duplo Door 1 x 4 x 10 with 3 panes and handle
to
Duplo Door 1 x 4 x 5 with 3 Panes and Handle
Corrected height and capitalized two words in description. Added category.
The actual part is slightly taller than 5 regular duplo bricks, so one could argue that it should be 3.5 wide and 5.2 tall. Or 6 tall to match the frames...
Header Edits
description:
Duplo Door 1 x 4 x 5 with 3 Panes and Handle
to
Duplo Door 1 x 4 x 6 with 3 Panes and Handle
Corrected size to 6 tall. Apparently, the nearest integer above the actual size has been used in earlier duplo doors/windows.
* Origin at the top
2025-07-24 09:51:05
THese duplo doors are all centred concerning the origin
2025-07-24 09:56:24
Since they are used in both left and right position, one rotated upside down, a centre origin is better.
2025-07-24 10:12:44
* I'm gonna questioning origin/orientation again:
https://library.ldraw.org/parts/1807
https://library.ldraw.org/parts/1813
Have the origin at the top. All other Duplo doors in the middle. At the same time, this and the two doors linked above, have the hinge on the left side, while all other Duplo doors have it on the right side. This has to be sorted out and Movedto if necessary.
https://library.ldraw.org/parts/1807
https://library.ldraw.org/parts/1813
Have the origin at the top. All other Duplo doors in the middle. At the same time, this and the two doors linked above, have the hinge on the left side, while all other Duplo doors have it on the right side. This has to be sorted out and Movedto if necessary.
Changed orientation as requested; now hinges on right
2025-08-04 13:35:16
2025-08-04 14:39:36
pending hingepine primitive update
2025-08-04 17:37:09
2025-08-13 21:35:16
2025-08-31 02:18:46
Release 2025-08
