Official File parts/2294.dat
Part Attributes:
File Header:

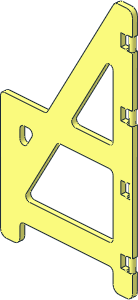

0 Duplo Stables Gate 1 x 4 x 6
0 Name: 2294.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Door
0 !KEYWORDS Farm, Zoo
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2294s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\2294s01.dat
0 // hinges
1 16 0 31 0 -1 0 0 0 1 0 0 0 -1 ddoorhingepin.dat
1 16 0 -31 0 -1 0 0 0 1 0 0 0 -1 ddoorhingepin.dat
1 16 0 93 0 -1 0 0 0 1 0 0 0 -1 ddoorhingepin.dat
1 16 0 -93 0 -1 0 0 0 1 0 0 0 -1 ddoorhingepin.dat
1 16 0 -99.6 0 0 0 2.5 0 13.2 0 -2.5 0 0 2-4cylo.dat
1 16 0 -99.6 0 0 0 2.5 0 -1 0 -2.5 0 0 2-4ndis.dat
1 16 1.25 -99.6 0 0 0 1.25 0 1 0 -2.5 0 0 recte3.dat
1 16 0 -86.4 0 0 0 2.5 0 1 0 -2.5 0 0 2-4ndis.dat
1 16 1.25 -86.4 0 0 0 1.25 0 1 0 -2.5 0 0 recte3.dat
1 16 0 -37.6 0 0 0 2.5 0 13.2 0 -2.5 0 0 2-4cylo.dat
1 16 0 -37.6 0 0 0 2.5 0 -1 0 -2.5 0 0 2-4ndis.dat
1 16 1.25 -37.6 0 0 0 1.25 0 1 0 -2.5 0 0 recte3.dat
1 16 0 -24.4 0 0 0 2.5 0 1 0 -2.5 0 0 2-4ndis.dat
1 16 1.25 -24.4 0 0 0 1.25 0 1 0 -2.5 0 0 recte3.dat
1 16 0 99.6 0 0 0 2.5 0 -13.2 0 -2.5 0 0 2-4cylo.dat
1 16 0 99.6 0 0 0 2.5 0 1 0 -2.5 0 0 2-4ndis.dat
1 16 1.25 99.6 0 0 0 1.25 0 1 0 -2.5 0 0 recte3.dat
1 16 0 86.4 0 0 0 2.5 0 -1 0 -2.5 0 0 2-4ndis.dat
1 16 1.25 86.4 0 0 0 1.25 0 1 0 -2.5 0 0 recte3.dat
0 // outline
1 16 -3.5 -116 2.5 6 0 0 0 0 -6 0 -5 0 1-4cylo.dat
1 16 -12.3 -116 2.5 0 0 -6 -6 0 0 0 -5 0 1-8cylo.dat
1 16 -3.5 116 2.5 6 0 0 0 0 6 0 -5 0 1-4cylo.dat
1 16 -11.5 116 2.5 -6 0 0 0 0 6 0 -5 0 1-4cylo.dat
1 16 -119.5 116 2.5 6 0 0 0 0 6 0 -5 0 1-4cylo.dat
1 16 -127.5 116 2.5 -6 0 0 0 0 6 0 -5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -21.5 106 2.5 4 0 0 0 0 -4 0 -5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -21.5 78 2.5 4 0 0 0 0 4 0 -5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -21.5 24 2.5 4 0 0 0 0 -4 0 -5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -21.5 -4 2.5 4 0 0 0 0 4 0 -5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -21.5 -64 2.5 4 0 0 0 0 -4 0 -5 0 7-16cylo.dat
0 BFC INVERTNEXT
1 16 -56.2 -4 2.5 0 0 -4 4 0 0 0 -5 0 5-16cylo.dat
0 BFC INVERTNEXT
1 16 -72.3 24 2.5 0 0 -4 -4 0 0 0 -5 0 3-16cylo.dat
0 BFC INVERTNEXT
1 16 -104.6 24 2.5 0 0 4 -4 0 0 0 -5 0 5-16cylo.dat
0 BFC INVERTNEXT
1 16 -109.5 24 2.5 -4 0 0 0 0 -4 0 -5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -109.5 32.5 2.5 -4 0 0 0 0 4 0 -5 0 7-16cylo.dat
0 BFC INVERTNEXT
1 16 -103.5 78 2.5 0 0 -4 4 0 0 0 -5 0 5-16cylo.dat
0 BFC INVERTNEXT
1 16 -109.5 106 2.5 -4 0 0 0 0 -4 0 -5 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 -88.4 -4 2.5 0 0 4 4 0 0 0 -5 0 1-8cylo.dat
1 16 -129.5 4 2.5 -4 0 0 0 0 -4 0 -5 0 1-4cylo.dat
4 16 -3.5 122 -2.5 -11.5 122 -2.5 -11.5 122 2.5 -3.5 122 2.5
4 16 -17.5 106 -2.5 -17.5 106 2.5 -17.5 116 2.5 -17.5 116 -2.5
4 16 -21.5 102 -2.5 -109.5 102 -2.5 -109.5 102 2.5 -21.5 102 2.5
4 16 -113.5 116 -2.5 -113.5 116 2.5 -113.5 106 2.5 -113.5 106 -2.5
4 16 -119.5 122 -2.5 -127.5 122 -2.5 -127.5 122 2.5 -119.5 122 2.5
4 16 -133.5 4 -2.5 -133.5 4 2.5 -133.5 116 2.5 -133.5 116 -2.5
4 16 -88.4 0 -2.5 -88.4 0 2.5 -129.5 0 2.5 -129.5 0 -2.5
4 16 -17.8434 -118.2962 2.5 -84.7044 -2.4692 2.5 -84.7044 -2.4692 -2.5 -17.8434 -118.2962 -2.5
4 16 -3.5 -122 -2.5 -3.5 -122 2.5 -12.3 -122 2.5 -12.3 -122 -2.5
4 16 2.5 -99.6 -2.5 2.5 -99.6 2.5 2.5 -116 2.5 2.5 -116 -2.5
4 16 2.5 -37.6 -2.5 2.5 -37.6 2.5 2.5 -86.4 2.5 2.5 -86.4 -2.5
4 16 2.5 86.4 -2.5 2.5 86.4 2.5 2.5 -24.4 2.5 2.5 -24.4 -2.5
4 16 2.5 116 -2.5 2.5 116 2.5 2.5 99.6 2.5 2.5 99.6 -2.5
4 16 -21.5 82 -2.5 -21.5 82 2.5 -103.5 82 2.5 -103.5 82 -2.5
4 16 -107.1955 76.4693 -2.5 -107.1955 76.4693 2.5 -75.9956 22.4692 2.5 -75.9956 22.4692 -2.5
4 16 -21.5 20 -2.5 -72.3 20 -2.5 -72.3 20 2.5 -21.5 20 2.5
4 16 -17.5 78 -2.5 -17.5 24 -2.5 -17.5 24 2.5 -17.5 78 2.5
4 16 -113.5 24 -2.5 -113.5 32.5 -2.5 -113.5 32.5 2.5 -113.5 24 2.5
4 16 -104.6 20 -2.5 -109.5 20 -2.5 -109.5 20 2.5 -104.6 20 2.5
4 16 -100.9045 25.5307 2.5 -105.8044 34.0308 2.5 -105.8044 34.0308 -2.5 -100.9045 25.5307 -2.5
4 16 -59.8955 -5.5307 -2.5 -59.8955 -5.5307 2.5 -25.1956 -65.5308 2.5 -25.1956 -65.5308 -2.5
4 16 -17.5 -4 -2.5 -17.5 -64 -2.5 -17.5 -64 2.5 -17.5 -4 2.5
4 16 -21.5 0 -2.5 -21.5 0 2.5 -56.2 0 2.5 -56.2 0 -2.5
4 16 -16.5426 -120.2426 2.5 -17.8434 -118.2962 2.5 -17.8434 -118.2962 -2.5 -16.5426 -120.2426 -2.5
4 16 -84.7044 -2.4692 2.5 -85.5716 -1.1716 2.5 -85.5716 -1.1716 -2.5 -84.7044 -2.4692 -2.5
5 24 -84.7044 -2.4692 -2.5 -84.7044 -2.4692 2.5 -85.5716 -1.1716 -2.5 -17.8434 -118.2962 -2.5
5 24 -17.8434 -118.2962 -2.5 -17.8434 -118.2962 2.5 -16.5426 -120.2426 -2.5 -84.7044 -2.4692 -2.5
5 24 -100.9045 25.5307 -2.5 -100.9045 25.5307 2.5 -100.6 24 -2.5 -105.8044 34.0308 -2.5
5 24 -105.8044 34.0308 -2.5 -105.8044 34.0308 2.5 -106.6716 35.3284 -2.5 -100.9045 25.5307 -2.5
5 24 -107.1956 76.4692 -2.5 -107.1956 76.4692 2.5 -107.5001 78 -2.5 -75.9956 22.4692 -2.5
5 24 -75.9956 22.4692 -2.5 -75.9956 22.4692 2.5 -75.1284 21.1716 -2.5 -107.1956 76.4692 -2.5
5 24 -59.8956 -5.5308 -2.5 -59.8956 -5.5308 2.5 -60.2001 -4 -2.5 -25.1956 -65.5308 -2.5
5 24 -25.1956 -65.5308 -2.5 -25.1956 -65.5308 2.5 -24.3284 -66.8284 -2.5 -59.8956 -5.5308 -2.5
5 24 -16.5426 -120.2426 2.5 -16.5426 -120.2426 -2.5 -17.8434 -118.2962 -2.5 -14.5962 -121.5434 -2.5
5 24 -85.5716 -1.1716 -2.5 -85.5716 -1.1716 2.5 -84.7044 -2.4692 -2.5 -86.8692 -.3044 -2.5
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-04-06 09:00:18
2025-07-22 13:21:08
2025-07-22 22:50:44
2025-07-22 23:38:04
If BL is correct than this is 4 x 6.
Not sure about the "1 x"... How are other doors/window handled? I'd just leave that out:
"Duplo Stables Gate 4 x 6"
Not sure about the "1 x"... How are other doors/window handled? I'd just leave that out:
"Duplo Stables Gate 4 x 6"
Header Edits
keywords:
to
Zoo, Farm
This was released (and for a few years exclusive to) Duplo Zoo. So I'd really like to keep that as a keyword here.
Also a rather rare part only found in 2 Zoo, 1 Farm and 3 Dacta sets.
Header Edits
description:
Duplo Stables Gate 1 x 4 x 10
to
Duplo Stables Gate 4 x 6
Corrected height to 6 and removed 1x in front.
Header Edits
category:
Duplo
to
Door
description:
Duplo Stables Gate 4 x 6
to
Duplo Stables Gate 1 x 4 x 6
Reverted to 1x since all earlier duplo doors have it. Added door category as other doors.
2025-08-02 11:21:21
* Misses complementaries
* Front and back should be subbed along with all edges. Would help to get rid of the rect-porn in this part.
* I can live with the T-junk at the hinges.
* Front and back should be subbed along with all edges. Would help to get rid of the rect-porn in this part.
* I can live with the T-junk at the hinges.
Subfiled front surface, hinges on right as requested
Added complementaries
2025-08-04 05:24:34
The upper 3-16 cylos have too much condlines, maybe split the last segment and use a quad with manually condlines.
Changed the upper 3-16 cylos to 1-8 + one manual segment as suggested.
2025-08-04 13:32:49
2025-08-04 14:40:08
pending hingepin primitive update
2025-08-04 17:37:24
2025-08-13 21:36:45
2025-08-31 02:18:46
Release 2025-08
