Unofficial File parts/s/6432s01.dat
File Header:

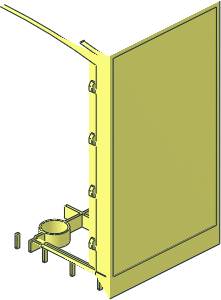

0 ~Duplo Building Wall 4 x 8 x 6 with Open Back and Double Door Opening - Half
0 Name: s\6432s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // side
0 BFC INVERTNEXT
1 16 160 134.5 0 0 -1 0 129.5 0 0 0 0 75 box4o4a.dat
1 16 159 134.5 0 0 -1 0 129.5 0 0 0 0 75 rect.dat
4 16 160 0 -80 160 5 -75 160 5 75 160 0 80
4 16 160 264 -75 160 5 -75 160 0 -80 160 288 -80
4 16 160 288 80 160 0 80 160 5 75 160 264 75
4 16 160 264 -75 160 288 -80 160 288 80 160 264 75
0 // back
4 16 155 264 80 155 5 80 160 0 80 160 288 80
2 24 160 288 80 160 0 80
0 // front outer frame
4 16 160 0 -80 155 5 -80 155 264 -80 160 288 -80
4 16 160 288 -80 155 264 -80 139.5 264 -80 139.5 268 -80
0 // front thin indent
1 16 147.25 264 -79.5 0 0 -7.75 0 1 0 .5 0 0 rect3.dat
3 16 155 5 -79 139.5 19.998 -79 139.5 48 -79
3 16 155 5 -79 139.5 48 -79 139.5 54 -79
3 16 155 5 -79 139.5 54 -79 139.5 110 -79
3 16 139.5 264 -79 155 264 -79 139.5 240 -79
3 16 139.5 240 -79 155 264 -79 139.5 234 -79
3 16 139.5 234 -79 155 264 -79 139.5 178 -79
3 16 139.5 178 -79 155 264 -79 139.5 172 -79
4 16 155 5 -79 139.5 116 -79 139.5 172 -79 155 264 -79
3 16 155 5 -79 139.5 110 -79 139.5 116 -79
2 24 139.5 268 -80 139.5 264 -80
2 24 139.5 264 -79 139.5 240 -79
2 24 139.5 234 -79 139.5 178 -79
2 24 139.5 172 -79 139.5 116 -79
2 24 139.5 110 -79 139.5 54 -79
2 24 139.5 48 -79 139.5 19.998 -79
1 16 0 104 -79 0 0 279 -97 0 0 0 1 0 48\1-12tndis.dat
3 16 139.5 7 -79 139.5 19.998 -79 155 5 -79
0 // front thick indent
0 BFC INVERTNEXT
1 16 0 104 -79 0 0 279 -97 0 0 0 6 0 48\1-12cylo.dat
4 16 139.5 19.998 -79 139.5 19.998 -73 139.5 45 -74.8 139.5 48 -79
3 16 139.5 45 -73 139.5 45 -74.8 139.5 19.998 -73
4 16 139.5 54 -79 139.5 57 -74.8 139.5 107 -74.8 139.5 110 -79
4 16 139.5 178 -79 139.5 181 -74.8 139.5 231 -74.8 139.5 234 -79
4 16 139.5 264 -79 139.5 240 -79 139.5 243 -74.8 139.5 268 -73
4 16 139.5 57 -74.8 139.5 57 -73 139.5 107 -73 139.5 107 -74.8
4 16 139.5 119 -74.8 139.5 119 -73 139.5 169 -73 139.5 169 -74.8
4 16 139.5 119 -74.8 139.5 169 -74.8 139.5 172 -79 139.5 116 -79
4 16 139.5 181 -73 139.5 231 -73 139.5 231 -74.8 139.5 181 -74.8
3 16 139.5 243 -74.8 139.5 243 -73 139.5 268 -73
4 16 139.5 264 -80 139.5 264 -79 139.5 268 -73 139.5 268 -80
2 24 139.5 19.998 -73 139.5 19.998 -79
2 24 139.5 268 -73 56 268 -73
2 24 56 268 -73 56 268 -76
4 16 56 268 -73 56 268 -76 139.5 268 -80 139.5 268 -73
4 16 44 268 -73 44 268 -76 44 270 -76 44 270 -68
1 16 50 269 -76 6 0 0 0 0 -1 0 -1 0 rect3.dat
4 16 56 268 -76 56 268 -73 56 270 -68 56 270 -76
1 16 50 268 -70.5 6 0 0 0 -1 0 0 0 -2.5 rect3.dat
3 16 56 268 -73 56 268 -68 56 270 -68
3 16 44 270 -68 44 268 -68 44 268 -73
0 // front hinge surface
1 16 0 104 -73 0 0 279 -97 0 0 0 1 0 48\1-12chrd.dat
3 16 123 22 -73 139.5 19.998 -73 0 7 -73
1 16 135.5 51 -73 -1 0 0 0 1 0 0 0 1 dtruncdoorhingeedge.dat
1 16 135.5 113 -73 -1 0 0 0 1 0 0 0 1 dtruncdoorhingeedge.dat
1 16 135.5 175 -73 -1 0 0 0 1 0 0 0 1 dtruncdoorhingeedge.dat
1 16 135.5 237 -73 -1 0 0 0 1 0 0 0 1 dtruncdoorhingeedge.dat
4 16 127 231 -73 133 231 -73 133 181 -73 127 181 -73
4 16 139.5 231 -73 139.5 181 -73 138 181 -73 138 231 -73
4 16 133 181 -73 133 231 -73 138 231 -73 138 181 -73
4 16 133 107 -73 133 57 -73 127 57 -73 127 107 -73
4 16 138 107 -73 139.5 107 -73 139.5 57 -73 138 57 -73
4 16 138 57 -73 133 57 -73 133 107 -73 138 107 -73
4 16 133 119 -73 127 119 -73 127 169 -73 133 169 -73
4 16 133 169 -73 138 169 -73 138 119 -73 133 119 -73
4 16 139.5 169 -73 139.5 119 -73 138 119 -73 138 169 -73
4 16 127 243 -73 123 264 -73 139.5 268 -73 133 243 -73
4 16 123 22 -73 127 45 -73 133 45 -73 139.5 19.998 -73
3 16 123 264 -73 127 243 -73 127 231 -73
3 16 127 231 -73 127 181 -73 123 264 -73
3 16 127 45 -73 123 22 -73 127 57 -73
3 16 127 107 -73 127 57 -73 123 22 -73
3 16 139.5 243 -73 138 243 -73 139.5 268 -73
3 16 139.5 268 -73 138 243 -73 133 243 -73
3 16 138 45 -73 139.5 45 -73 139.5 19.998 -73
3 16 138 45 -73 139.5 19.998 -73 133 45 -73
4 16 123 264 -73 127 181 -73 127 107 -73 123 22 -73
2 24 139.5 119 -73 139.5 169 -73
2 24 139.5 268 -73 139.5 243 -73
2 24 139.5 19.998 -73 139.5 45 -73
2 24 139.5 107 -73 139.5 57 -73
2 24 139.5 231 -73 139.5 181 -73
0 // hinge holes
0 BFC INVERTNEXT
1 16 135.5 237 -69 2.5 0 0 0 0 6 0 -4 0 box4o4a.dat
0 BFC INVERTNEXT
1 16 135.5 175 -69 2.5 0 0 0 0 6 0 -4 0 box4o4a.dat
0 BFC INVERTNEXT
1 16 135.5 113 -69 2.5 0 0 0 0 6 0 -4 0 box4o4a.dat
0 BFC INVERTNEXT
1 16 135.5 51 -69 2.5 0 0 0 0 6 0 -4 0 box4o4a.dat
0 // back side of front
4 16 123 22 -69 133 119 -69 133 169 -69 123 264 -69
4 16 138 181 -69 138 231 -69 133 231 -69 133 181 -69
4 16 123 264 -69 133 243 -69 138 243 -69 145 264 -69
4 16 138 169 -69 138 119 -69 145 12 -69 145 264 -69
4 16 123 22 -69 145 12 -69 138 45 -69 133 45 -69
3 16 123 264 -69 133 181 -69 133 231 -69
3 16 123 264 -69 133 231 -69 133 243 -69
3 16 133 107 -69 123 22 -69 133 57 -69
3 16 133 57 -69 123 22 -69 133 45 -69
3 16 138 243 -69 138 231 -69 145 264 -69
3 16 145 264 -69 138 231 -69 138 181 -69
3 16 145 12 -69 138 107 -69 138 57 -69
3 16 138 57 -69 138 45 -69 145 12 -69
4 16 138 57 -69 138 107 -69 133 107 -69 133 57 -69
4 16 133 119 -69 138 119 -69 138 169 -69 133 169 -69
3 16 133 169 -69 133 181 -69 123 264 -69
3 16 133 119 -69 123 22 -69 133 107 -69
3 16 138 181 -69 138 169 -69 145 264 -69
3 16 138 119 -69 138 107 -69 145 12 -69
2 24 145 264 -69 123 264 -69
2 24 112.156 6.3817 -75 145 11.998 -75
2 24 112.156 6.3817 -69 145 12 -69
4 16 112.156 6.3817 -69 112.156 6.3817 -75 145 11.998 -75 145 12 -69
0 // inside
1 16 145 138 -72 0 -1 0 126 0 0 0 0 3 rect.dat
4 16 145 264 -75 145 12 -75 155 5 -75 155 264 -75
4 16 155 264 80 145 264 -69 145 264 -75 155 264 -75
3 16 123 264 -69 145 264 -69 155 264 80
2 24 155 264 -75 145 264 -75
0 // bottom hem
4 16 160 288 -80 156 288 -76 156 288 76 160 288 80
2 24 160 288 -80 160 288 80
0 // bottom box bottom
1 16 100 269 -72 44 0 0 0 1 0 0 0 4 box3-3.dat
4 16 156 268 -76 144 268 -76 144 268 -68 156 268 76
2 24 41.5 270 -68 41.5 270 -76
2 24 38.5 270 -68 38.5 270 -76
2 24 41.5 270 -68 41.5 268 -68
2 24 38.5 270 -68 38.5 268 -68
0 // bottom box sides
4 16 144 268 -76 156 268 -76 156 288 -76 144 270 -76
2 24 156 268 -76 144 268 -76
0 // bottom notches
1 16 154 268 60 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 154 268 20 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 154 268 -20 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 154 268 -60 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 20 270 -74 1.5 0 0 0 17 0 0 0 2 box4-1.dat
1 16 60 270 -74 1.5 0 0 0 17 0 0 0 2 box4-1.dat
1 16 100 270 -74 1.5 0 0 0 17 0 0 0 2 box4-1.dat
1 16 140 270 -74 1.5 0 0 0 17 0 0 0 2 box4-1.dat
1 16 20 268 74 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 60 268 74 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 100 268 74 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 140 268 74 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
0 // bottom studs and reinforcements
1 16 80 268 0 0 0 1 0 -4 0 1 0 0 stud8.dat
1 16 40 268 40 0 0 1 0 -4 0 1 0 0 stud8.dat
1 16 40 268 -40 0 0 1 0 -4 0 1 0 0 stud8.dat
1 16 120 268 40 0 0 1 0 -4 0 1 0 0 stud8.dat
1 16 120 268 -40 0 0 1 0 -4 0 1 0 0 stud8.dat
1 16 126 268 0 -30 0 0 0 15 0 0 0 -1.5 box3u5p.dat
1 16 96 268 0 -1 0 0 0 15 0 0 0 1.5 boxjcyl4.dat
1 16 64 268 0 1 0 0 0 15 0 0 0 1.5 boxjcyl4.dat
1 16 52.75 268 0 -11.25 0 0 0 15 0 0 0 -1.5 box3u8p.dat
1 16 27.25 268 0 -11.25 0 0 0 15 0 0 0 -1.5 box3u8p.dat
1 16 16 268 0 -1 0 0 0 15 0 0 0 1.5 boxjcyl4.dat
4 16 38.5 283 -1.5 38.5 283 1.5 41.5 283 1.5 41.5 283 -1.5
1 16 40 283 -66 0 0 -1.5 0 -1 0 10 0 0 rect2p.dat
4 16 38.5 283 -76 38.5 270 -76 38.5 270 -68 38.5 283 -56
4 16 38.5 268 -56 38.5 283 -56 38.5 270 -68 38.5 268 -68
4 16 41.5 270 -68 41.5 270 -76 41.5 283 -76 41.5 283 -56
4 16 41.5 270 -68 41.5 283 -56 41.5 268 -56 41.5 268 -68
1 16 40 276.5 -76 1.5 0 0 0 0 6.5 0 1 0 recte3.dat
2 24 41.5 268 1.5 41.5 283 1.5
2 24 41.5 268 -1.5 41.5 283 -1.5
2 24 38.5 268 1.5 38.5 283 1.5
2 24 38.5 268 -1.5 38.5 283 -1.5
2 24 41.5 268 -56 41.5 268 -68
2 24 38.5 268 -68 38.5 268 -56
1 16 40 268 -56 0 0 1.5 0 15 0 1 0 0 boxjcyl4.dat
1 16 40 268 -24 0 0 1.5 0 15 0 -1 0 0 boxjcyl4.dat
1 16 40 268 -12.75 0 0 -1.5 0 15 0 11.25 0 0 box3u8p.dat
1 16 40 268 12.75 0 0 -1.5 0 15 0 11.25 0 0 box3u8p.dat
1 16 40 268 24 0 0 1.5 0 15 0 1 0 0 boxjcyl4.dat
1 16 40 268 56 0 0 1.5 0 15 0 -1 0 0 boxjcyl4.dat
1 16 40 268 66 0 0 -1.5 0 15 0 -10 0 0 box3u5p.dat
4 16 155 5 -75 145 12 -75 112.156 6.3817 -75 112.156 5 -75
2 24 112.156 5 -75 112.156 6.3817 -75
2 24 112.156 6.3817 -75 112.156 6.3817 -69
2 24 112.156 6.3817 -69 112.156 5 -69
4 16 112.156 6.3817 -75 112.156 6.3817 -69 112.156 5 -69 112.156 5 -75
3 16 123 22 -69 112.156 6.3817 -69 145 12 -69
2 24 112.156 5 -75 112.156 5 -69
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Duplo hinges according to https://forums.ldraw.org/thread-28747-post-56962.html
Header Edits
description:
~Duplo Double Door Frame 4 x 8 x 10 (Mirrored Half)
to
~Duplo Double Door Frame 4 x 8 x 10 - Half
Changed parenthesis to dash in description
Hinge socket update
2025-07-22 13:03:21
2025-07-22 13:32:22
Header Edits
description:
~Duplo Double Door Frame 4 x 8 x 10 - Half
to
~Duplo Double Door Frame 4 x 8 x 6 - Half
2025-07-23 11:58:08
Header Edits
description:
~Duplo Double Door Frame 4 x 8 x 6 - Half
to
~Duplo Building Wall 4 x 8 x 6 with Open Back and Double Door Opening - Half
2025-09-07 19:33:46
* There is a rounding error:
2 25 145 11.998 -69 145 12 -69
2 25 145 11.998 -69 145 12 -69
Will fix
Fixed rounding error
2025-09-16 11:14:14
* Looks good beside the rect
