Official File parts/51260.dat
Part Attributes:
File Header:

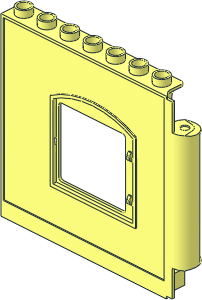

0 Duplo Building Wall 1 x 8 x 6 Hinge on Right with Window Opening
0 Name: 51260.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Place Window with 1 1 -74.5 146 -16.5 1 0 0 0 1 0 0 0 1 31022.dat
0 BFC CERTIFY CCW
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
1 16 -160 0 0 -1 0 0 0 2.75 0 0 0 -1 stug7-1x7.dat
0 // hinges and frame
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\51697s01.dat
4 16 -29.5 264 -12 -29.5 264 -14 -29.5 4 -14 -29.5 4 -12
0 // window
1 16 -140 0 0 1 0 0 0 1 0 0 0 1 s\53916s01.dat
0 // front perifery
4 16 -296 4 -20 -16 4 -20 -12 0 -20 -300 0 -20
4 16 -296 4 -20 -300 0 -20 -300 288 -20 -296 264 -20
4 16 -12 288 -20 -16 264 -20 -296 264 -20 -300 288 -20
3 16 -12 288 -20 -12 284 -20 -16 264 -20
3 16 -12 284 -20 -2 284 -20 -16 264 -20
0 // inset boundary
0 BFC INVERTNEXT
1 16 -156 134 -20 140 0 0 0 0 130 0 2 0 box4.dat
0 // front large surface
4 16 -65.75 210.25 -18 -214.25 210.25 -18 -296 264 -18 -16 264 -18
4 16 -16 4 -18 -65.75 81.399 -18 -65.75 210.25 -18 -16 264 -18
3 16 -65.75 81.399 -18 -16 4 -18 -65.75 61.5 -18
3 16 -65.75 61.5 -18 -16 4 -18 -140 61.5 -18
4 16 -296 264 -18 -214.25 210.25 -18 -214.25 61.5 -18 -296 4 -18
4 16 -296 4 -18 -214.25 61.5 -18 -140 61.5 -18 -16 4 -18
0 // back large surface
4 16 -296 4 -14 -209 4 -14 -209 21 -14 -212.5 61.5 -14
3 16 -296 4 -14 -212.5 61.5 -14 -212.5 80.93 -14
4 16 -212.5 209 -14 -209 247 -14 -209 264 -14 -296 264 -14
3 16 -212.5 209 -14 -296 264 -14 -212.5 150.5 -14
3 16 -212.5 150.5 -14 -296 264 -14 -212.5 141.5 -14
4 16 -296 4 -14 -212.5 80.93 -14 -212.5 141.5 -14 -296 264 -14
4 16 -67.5 61.5 -14 -83 21 -14 -83 4 -14 -29.5 4 -14
3 16 -67.5 80.93 -14 -67.5 61.5 -14 -29.5 4 -14
4 16 -83 264 -14 -83 247 -14 -67.5 209 -14 -29.5 264 -14
4 16 -29.5 264 -14 -67.5 209 -14 -67.5 80.93 -14 -29.5 4 -14
2 24 -29.5 264 -14 -29.5 4 -14
0 // floor on back
4 16 -26.5 264 4 -26.5 264 -12 -20 264 -12 -20 264 -6
4 16 -26.5 264 4 -20 264 -6 -20 264 20 -26.5 264 16
3 16 -26.5 264 16 -20 264 20 -29.5 264 16
4 16 -205 264 -14 -87 264 -14 -87 264 3 -205 264 3
4 16 -83 264 3 -83 264 -14 -29.5 264 -12 -29.5 264 4
3 16 -29.5 264 4 -29.5 264 16 -83 264 3
3 16 -83 264 3 -29.5 264 16 -87 264 3
4 16 -209 264 -14 -209 264 3 -296 264 20 -296 264 -14
3 16 -209 264 3 -205 264 3 -296 264 20
4 16 -87 264 3 -29.5 264 16 -20 264 20 -296 264 20
3 16 -205 264 3 -87 264 3 -296 264 20
3 16 -83 264 -14 -29.5 264 -14 -29.5 264 -12
2 24 -296 264 -14 -209 264 -14
2 24 -205 264 -14 -87 264 -14
2 24 -83 264 -14 -29.5 264 -14
2 24 -29.5 264 -14 -29.5 264 -12
2 24 -26.5 264 -12 -20 264 -12
0 // back side and top
1 16 -296 134 3 0 -1 0 -130 0 0 0 0 -17 rect3.dat
4 16 -296 4 -14 -296 4 20 -209 4 3 -209 4 -14
4 16 -87 4 -14 -205 4 -14 -205 4 3 -87 4 3
4 16 -29.5 4 4 -29.5 4 -12 -83 4 -14 -83 4 3
3 16 -29.5 4 4 -83 4 3 -29.5 4 16
3 16 -26.5 4 16 -29.5 4 16 -26 4 20
3 16 -26.5 4 4 -26.5 4 16 -26 4 20
4 16 -26 4 -12 -26.5 4 -12 -26.5 4 4 -26 4 20
3 16 -209 4 3 -296 4 20 -205 4 3
4 16 -26 4 20 -87 4 3 -205 4 3 -296 4 20
4 16 -29.5 4 16 -83 4 3 -87 4 3 -26 4 20
3 16 -29.5 4 -12 -29.5 4 -14 -83 4 -14
2 24 -29.5 4 -14 -29.5 4 -12
2 24 -29.5 4 -14 -83 4 -14
2 24 -87 4 -14 -205 4 -14
2 24 -209 4 -14 -296 4 -14
2 24 -26.5 4 -12 -26 4 -12
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Duplo hinges according to https://forums.ldraw.org/thread-28747-post-56962.html
* Edge included in 51697s01.dat as well as 1 16 -156 134 3 0 -1 0 130 0 0 0 0 17 rect.dat:
2 24 -156 4 20 -156 264 20
2 24 -156 4 20 -156 264 20
Removed overlapping edge. Updated name to "Building Wall"...
2025-07-22 13:07:47
2025-07-23 10:28:58
* Missing edge:
2 320 113.5 4 -12 114 4 -12
2 320 113.5 4 -12 114 4 -12
Added missing edge as suggested
2025-07-24 08:25:54
How about placing the origin in the rotation point?
Yes. At which height?
Updated origin to top of hinge as suggested.
2025-07-28 09:31:11
2025-07-28 11:20:27
2025-08-24 00:47:16
2025-08-31 02:18:46
Release 2025-08
