File Detail parts/s/stickerback048x108a.dat

Unofficial File parts/s/stickerback048x108a.dat

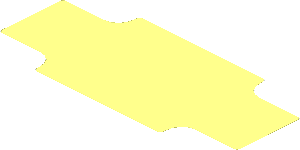

~Sticker Back 4.8 x 10.8 for Technic Panel 5 x 11 x 1

File Header:

0 ~Sticker Back  4.8 x 10.8 for Technic Panel  5 x 11 x  1
0 Name: s\stickerback048x108a.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP To be used with Panel 64782

0 BFC CERTIFY CCW

Show contents

0 // Back Faces
1 16 105 0 26 3 0 0 0 -1 0 0 0 3 1-4chrd.dat
1 16 54.5 0 45 3 0 0 0 -1 0 0 0 3 1-4chrd.dat
1 16 70 0 43 -12.5 0 0 0 -1 0 0 0 -14 1-4ndis.dat
1 16 105 0 -26 3 0 0 0 -1 0 0 0 -3 1-4chrd.dat
1 16 54.5 0 -45 3 0 0 0 -1 0 0 0 -3 1-4chrd.dat
1 16 70 0 -43 -12.5 0 0 0 -1 0 0 0 14 1-4ndis.dat
1 16 -105 0 26 -3 0 0 0 -1 0 0 0 3 1-4chrd.dat
1 16 -54.5 0 45 -3 0 0 0 -1 0 0 0 3 1-4chrd.dat
1 16 -70 0 43 12.5 0 0 0 -1 0 0 0 -14 1-4ndis.dat
1 16 -105 0 -26 -3 0 0 0 -1 0 0 0 -3 1-4chrd.dat
1 16 -54.5 0 -45 -3 0 0 0 -1 0 0 0 -3 1-4chrd.dat
1 16 -70 0 -43 12.5 0 0 0 -1 0 0 0 14 1-4ndis.dat
4 16 -54.5 0 -48 -57.5 0 -45 57.5 0 -45 54.5 0 -48
4 16 -57.5 0 -43 57.5 0 -43 57.5 0 -45 -57.5 0 -45
4 16 -57.5 0 -43 -57.5 0 -29 57.5 0 -29 57.5 0 -43
4 16 -57.5 0 29 57.5 0 29 57.5 0 -29 -57.5 0 -29
4 16 57.5 0 29 70 0 29 70 0 -29 57.5 0 -29
4 16 70 0 29 105 0 29 105 0 -29 70 0 -29
4 16 105 0 29 108 0 26 108 0 -26 105 0 -29
4 16 -70 0 -29 -70 0 29 -57.5 0 29 -57.5 0 -29
4 16 -105 0 -29 -105 0 29 -70 0 29 -70 0 -29
4 16 -108 0 -26 -108 0 26 -105 0 29 -105 0 -29
4 16 57.5 0 45 -57.5 0 45 -54.5 0 48 54.5 0 48
4 16 57.5 0 45 57.5 0 43 -57.5 0 43 -57.5 0 45
4 16 57.5 0 29 -57.5 0 29 -57.5 0 43 57.5 0 43

0 // Side Faces
1 16 105 0 26 3 0 0 0 -.25 0 0 0 3 1-4cyli.dat
1 16 54.5 0 45 3 0 0 0 -.25 0 0 0 3 1-4cyli.dat
0 BFC INVERTNEXT
1 16 70 0 43 -12.5 0 0 0 -.25 0 0 0 -14 1-4cyli.dat
4 16 57.5 0 45 57.5 -.25 45 57.5 -.25 43 57.5 0 43
4 16 70 0 29 70 -.25 29 105 -.25 29 105 0 29
1 16 -105 0 26 -3 0 0 0 -.25 0 0 0 3 1-4cyli.dat
1 16 -54.5 0 45 -3 0 0 0 -.25 0 0 0 3 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -70 0 43 12.5 0 0 0 -.25 0 0 0 -14 1-4cyli.dat
4 16 -57.5 -.25 43 -57.5 -.25 45 -57.5 0 45 -57.5 0 43
4 16 -105 -.25 29 -70 -.25 29 -70 0 29 -105 0 29
4 16 -54.5 -.25 48 54.5 -.25 48 54.5 0 48 -54.5 0 48
1 16 105 0 -26 3 0 0 0 -.25 0 0 0 -3 1-4cyli.dat
1 16 54.5 0 -45 3 0 0 0 -.25 0 0 0 -3 1-4cyli.dat
0 BFC INVERTNEXT
1 16 70 0 -43 -12.5 0 0 0 -.25 0 0 0 14 1-4cyli.dat
4 16 57.5 -.25 -43 57.5 -.25 -45 57.5 0 -45 57.5 0 -43
4 16 105 -.25 -29 70 -.25 -29 70 0 -29 105 0 -29
1 16 -105 0 -26 -3 0 0 0 -.25 0 0 0 -3 1-4cyli.dat
1 16 -54.5 0 -45 -3 0 0 0 -.25 0 0 0 -3 1-4cyli.dat
0 BFC INVERTNEXT
1 16 -70 0 -43 12.5 0 0 0 -.25 0 0 0 14 1-4cyli.dat
4 16 -57.5 0 -45 -57.5 -.25 -45 -57.5 -.25 -43 -57.5 0 -43
4 16 -70 0 -29 -70 -.25 -29 -105 -.25 -29 -105 0 -29
4 16 54.5 0 -48 54.5 -.25 -48 -54.5 -.25 -48 -54.5 0 -48
4 16 -108 -.25 -26 -108 -.25 26 -108 0 26 -108 0 -26
4 16 108 0 26 108 -.25 26 108 -.25 -26 108 0 -26

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Jens Brühl [jb70]

initially submitted the part.

2025-04-10 20:35:02

Jens Brühl [jb70]

made the following comment.

2025-08-01 18:02:07

This is a reusable stickerback for part 64782.
Even, if it is not a formed sticker, should we use the same naming convention as for formed stickers?

If you agree, you could you rename this part to 64782b01.dat

Jens Brühl [jb70]

submitted a new version of the part.

2025-08-02 12:27:41

Inlined Top Surface

Jens Brühl [jb70]

submitted a new version of the part.

2025-08-02 12:48:49

Prims are back. Got lost while inlining.

Magnus Forsberg [MagFors]

made the following comment.

2025-08-02 14:35:14

I agree, maybe...
This is "formed" to only fit that part, 64782, and I think it should have the bXX-suffix even if it is flat.
OTOH
stickerback048x108 is the name to use if we should follow the spec.

Jens Brühl [jb70]

made the following comment.

2025-08-02 14:43:11

But this shape is irregular and not Quadrilateral.

And I think, irregular shaped formed stickers should not only have a formed stickerback, but also a flat one, that should follow the same naming conventions as the formed ones, if they are designed to be attached to a specific part.

Magnus Forsberg [MagFors]

made the following comment.

2025-08-02 15:04:57

Yes, this needs some sort of indicator for being irregular.

Orion Pobursky [OrionP]

made the following comment.

2025-08-02 15:48:23

This is not a formed sticker back. However, with the new revision, it can be renamed to stickerback048x108a

Orion Pobursky [OrionP]

renamed the part.

2025-08-02 17:11:10

"parts/s/6154914fs01.dat" to "parts/s/stickerback048x108a.dat"

Jens Brühl [jb70]

submitted a new version of the part.

2025-08-03 21:59:24

Added HELP with link to the part this stickerback should be attached to
