File Detail parts/s/35960s01.dat

Official File parts/s/35960s01.dat

File Header:

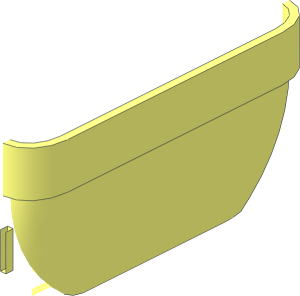

0 ~Duplo Tipper Box  4 x  4 x  2 - Half
0 Name: s\35960s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Subpart UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09

Show contents

0 // corners
1 16 0 -19 -80 1 0 0 0 1 0 0 0 1 s\35960s02.dat
1 16 0 -19 -80 1 0 0 0 1 0 0 0 -1 s\35960s02.dat

0 // box underneath
1 16 20 -15 -114 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 34 -15 -100 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
4 16 40 5 -40 40 5 -120 36 5 -116 36 5 -44

0 // top
1 16 76 -81 -80 0 1 0 0 0 10 60 0 0 rect2p.dat
4 16 76 -91 -140 80 -91 -140 80 -91 -20 76 -91 -20
4 16 72 -71 -140 76 -71 -140 76 -71 -20 72 -71 -20

0 // outside
1 16 80 -79 -80 0 -1 0 0 0 12 60 0 0 rect2p.dat
4 16 80 -67 -20 80 -67 -140 76 -67 -140 76 -67 -20
4 16 76 -24.574 -38.7456 76 -67 -20 76 -67 -140 76 -24.574 -121.2544
4 16 76 -23 -120 76 -23 -40 76 -24.574 -38.7456 76 -24.574 -121.2544
1 16 64 -23 -120 12 0 0 0 0 16 0 80 0 1-4cyli.dat
4 16 40 -7 -40 64 -7 -40 64 -7 -120 40 -7 -120
2 24 76 -67 -20 76 -67 -140
3 16 40 -7 -120 64 -7 -120 64 -8.2179 -126
5 24 64 -7 -120 40 -7 -120 64 -8.2179 -126 64 -7 -40
4 16 64 -8.2179 -34 21 -8.2179 -34 21 -13.966 -27.4304 64 -13.966 -27.4304
4 16 64 -8.2179 -34 64 -7 -40 40 -7 -40 21 -8.2179 -34
3 16 40 -7 -40 27 -7 -40 21 -8.2179 -34
5 24 64 -7 -40 40 -7 -40 64 -8.2179 -34 64 -7 -120
5 24 21 -8.2179 -34 64 -8.2179 -34 64 -7 -40 64 -13.966 -27.4304
5 24 21 -13.966 -27.4304 64 -13.966 -27.4304 64 -8.2179 -34 64 -21.34 -20.5312

0 // underside
1 16 27 5 -34 -6 0 0 0 1 0 0 0 -6 1-4edge.dat
0 BFC INVERTNEXT
1 16 27 5 -34 -6 0 0 0 -13.2179 0 0 0 -6 1-4cyli.dat
2 24 27 5 -40 40 5 -40
1 16 27 5 -34 -10 0 0 0 -12 0 0 0 -10 1-4cylo.dat
2 24 27 5 -44 36 5 -44
2 24 21 5 -34 21 5 -18.0057
0 BFC INVERTNEXT
1 16 14 5 -21 3 0 0 0 -30 0 0 0 3 1-4cyli.dat
1 16 14 5 -21 3 0 0 0 1 0 0 0 3 1-4edge.dat
1 16 14 5 -21 3 0 0 0 -1 0 0 0 3 1-4ndis.dat
2 24 21 5 -18.0057 17 5 -18
2 24 17 5 -18 14 5 -18
2 24 17 5 -21 17 5 -34
1 16 27 5 -34 -2 0 0 0 -1 0 0 0 -2 1-4ring3.dat
1 16 27 5 -34 -2 0 0 0 -1 0 0 0 -2 1-4ring4.dat
1 16 27 -7 -34 -10 0 0 0 -1 0 0 0 -10 1-4ndis.dat
1 16 27 -8.2179 -34 0 0 -6 1.2179 -1 0 -6 0 0 1-4chrde.dat

0 // cylinder top interface
2 24 21 -19 -15.2 21 -28.82562 -15.2
2 24 21 -19 0 21 -19 -15.2

0 // cylinder side interface
1 16 21 0 0 0 -1 0 -19 0 0 0 0 -19 1-4ndis.dat
2 24 21 -28.8256 -15.2 21 -21.34 -20.528
2 24 21 -13.966 -27.4304 21 -21.34 -20.528
2 24 21 -8.2179 -34 21 -13.966 -27.4304
2 24 27 -7 -40 40 -7 -40
4 16 21 -19 -15.2 21 -28.8256 -15.2 21 -21.34 -20.528 21 -19 -19
4 16 21 -19 -19 21 -21.34 -20.528 21 -13.966 -27.4304 21 0 -19
4 16 27 5 -40 27 -7 -40 40 -7 -40 40 5 -40
3 16 21 -8.2179 -34 21 5 -34 21 5 -18.0057
4 16 21 -8.2179 -34 21 5 -18.0057 21 0 -19 21 -13.966 -27.4304
4 16 40 5 -40 36 5 -44 27 5 -42 27 5 -40
4 16 21 5 -34 19 5 -34 17 5 -21 21 5 -18.0057
3 16 17 5 -18 21 5 -18.0057 17 5 -21
3 16 19 5 -34 17 5 -34 17 5 -21
3 16 27 5 -44 27 5 -42 36 5 -44
4 16 36 5 -44 36 -15 -44 27 -7 -44 27 5 -44
2 24 17 -7 -44 27 -7 -44
3 16 27 -7 -44 36 -15 -44 17 -7 -44
2 24 16.7717 -22.2899 -19.8519 16.1213 -23.6572 -18.8787
2 24 16.7717 -22.2899 -19.8519 16.9061 -21.34 -20.528
2 24 14 -24.8917 -18 15.1481 -24.571 -18.2283
2 24 16.1213 -23.6572 -18.8787 15.1481 -24.571 -18.2283
2 24 16.9061 -21.34 -20.528 17 -20.836 -21
2 24 17 -20.836 -21 17 -13.9675 -27.432
2 24 17 -7 -34 17 -13.9675 -27.432
4 16 17 5 -34 17 -7 -34 17 -13.9675 -27.432 17 5 -21
3 16 17 5 -21 17 -13.9675 -27.432 17 -20.836 -21
2 24 21 5 -18.0057 21 7.2713 -17.5541

0 // inside
0 BFC INVERTNEXT
1 16 64 -24 -118 8 0 0 0 0 12 0 76 0 1-4cyli.dat
4 16 64 -12 -118 64 -12 -42 40 -12 -40 40 -12 -120
4 16 72 -71 -140 72 -71 -20 72 -28.574 -37.574 72 -28.574 -122.426
4 16 72 -28.574 -37.574 72 -24 -42 72 -24 -118 72 -28.574 -122.426
2 24 72 -71 -20 72 -71 -140
