Unofficial File parts/s/35106s02.dat
File Header:

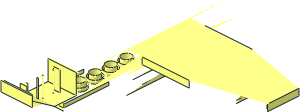

0 ~Aircraft Fuselage 4 x 16 x 1 with 2 x 10 Recessed Center, 8 x 4 Wings with Cutaways and 9 Holes - One Half Elements
0 Name: s\35106s02.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Primitives
1 16 0 28 -100 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 28 -80 1 0 0 0 -1 0 0 0 1 stud4h.dat
1 16 0 28 -60 1 0 0 0 -1 0 0 0 1 stud4h.dat
1 16 0 28 -40 1 0 0 0 -1 0 0 0 1 stud4h.dat
1 16 0 28 -20 1 0 0 0 -1 0 0 0 1 stud4h.dat
1 16 0 28 -20 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
1 16 0 28 -40 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
1 16 0 28 -60 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
1 16 0 28 -80 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
1 16 0 24 -80 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 0 24 -60 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 0 24 -40 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 0 24 -20 6 0 0 0 1 0 0 0 6 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 12 -115.725 18 0 0 0 12 0 0 0 13.725 box2-7.dat
0 BFC INVERTNEXT
1 16 0 12 -143.725 18 0 0 0 3.435 -8.565 0 0 -14.275 box2-7.dat
0 BFC INVERTNEXT
1 16 0 30 -58.48 0 0 16 2 0 0 0 -57.52 0 box3u2p.dat
1 16 0 6 -160 0 0 20 6 0 0 0 1 0 rect.dat
1 16 0 12 -108.75 0 0 4.2486 12 0 0 0 -1 0 rect.dat
1 16 0 12 -113.25 -1 0 0 0 0 12 0 1 0 rect2p.dat
1 16 0 12 -126.75 -1 0 0 0 0 12 0 -1 0 rect2p.dat
1 16 0 10.86 -133.25 1 0 0 0 0 10.86 0 1 0 rect.dat
1 16 0 6.81 -146.75 1 0 0 0 0 6.81 0 -1 0 rect.dat
1 16 0 5.46 -151.25 4.2486 0 0 0 0 5.46 0 1 0 rect.dat
1 16 20 28 0 0 0 -1 0 -1 0 1 0 0 2-4stud4.dat
1 16 60 4 0 -1 0 0 0 -3 0 0 0 1 st4jfil4.dat
1 16 140 4 0 0 0 1 0 -1 0 1 0 0 2-4stud4.dat
1 16 160 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 120 10 0 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 100 10 0 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 80 10 0 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 60 10 0 0 0 1 0 -1.5 0 1 0 0 2-4stud4a.dat
1 16 60 4 0 0 0 -1 0 -3 0 1 0 0 3-16stud4.dat
1 16 60 4 0 0 0 -1 0 -3 0 -1 0 0 3-16stud4.dat
0 BFC INVERTNEXT
1 16 120 4 0 6 0 0 0 6 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 100 4 0 6 0 0 0 6 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 80 4 0 6 0 0 0 6 0 0 0 6 4-4cyli.dat
1 16 120 4 0 0 0 8 0 6 0 8 0 0 3-16cyli.dat
1 16 120 4 0 0 0 -8 0 6 0 8 0 0 3-16cyli.dat
1 16 120 4 0 0 0 -8 0 6 0 -8 0 0 3-16cyli.dat
1 16 120 4 0 0 0 8 0 6 0 -8 0 0 3-16cyli.dat
1 16 100 4 0 0 0 8 0 6 0 8 0 0 3-16cyli.dat
1 16 100 4 0 0 0 -8 0 6 0 8 0 0 3-16cyli.dat
1 16 100 4 0 0 0 -8 0 6 0 -8 0 0 3-16cyli.dat
1 16 100 4 0 0 0 8 0 6 0 -8 0 0 3-16cyli.dat
1 16 80 4 0 0 0 8 0 6 0 8 0 0 3-16cyli.dat
1 16 80 4 0 0 0 -8 0 6 0 8 0 0 3-16cyli.dat
1 16 80 4 0 0 0 -8 0 6 0 -8 0 0 3-16cyli.dat
1 16 80 4 0 0 0 8 0 6 0 -8 0 0 3-16cyli.dat
1 16 60 4 0 0 0 8 0 6 0 8 0 0 3-16cyli.dat
1 16 60 4 0 0 0 8 0 6 0 -8 0 0 3-16cyli.dat
0 BFC INVERTNEXT
1 16 60 4 0 0 0 6 0 6 0 -6 0 0 3-16cyli.dat
0 BFC INVERTNEXT
1 16 60 4 0 0 0 6 0 6 0 6 0 0 3-16cyli.dat
1 16 60 4 0 0 0 6 0 1 0 6 0 0 3-16edge.dat
1 16 60 4 0 0 0 6 0 1 0 -6 0 0 3-16edge.dat
1 16 120 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 100 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 80 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 60 16 0 -6 0 0 0 1 0 0 0 6 1-16edge.dat
1 16 60 16 0 -6 0 0 0 1 0 0 0 -6 1-16edge.dat
1 16 120 4 0 0 0 8 0 1 0 8 0 0 3-16edge.dat
1 16 120 4 0 0 0 -8 0 1 0 8 0 0 3-16edge.dat
1 16 120 4 0 0 0 8 0 1 0 -8 0 0 3-16edge.dat
1 16 120 4 0 0 0 -8 0 1 0 -8 0 0 3-16edge.dat
1 16 100 4 0 0 0 8 0 1 0 8 0 0 3-16edge.dat
1 16 100 4 0 0 0 -8 0 1 0 8 0 0 3-16edge.dat
1 16 100 4 0 0 0 8 0 1 0 -8 0 0 3-16edge.dat
1 16 100 4 0 0 0 -8 0 1 0 -8 0 0 3-16edge.dat
1 16 80 4 0 0 0 8 0 1 0 8 0 0 3-16edge.dat
1 16 80 4 0 0 0 -8 0 1 0 8 0 0 3-16edge.dat
1 16 80 4 0 0 0 8 0 1 0 -8 0 0 3-16edge.dat
1 16 80 4 0 0 0 -8 0 1 0 -8 0 0 3-16edge.dat
1 16 60 4 0 0 0 8 0 1 0 8 0 0 3-16edge.dat
1 16 60 4 0 0 0 8 0 1 0 -8 0 0 3-16edge.dat
1 16 30 4 0 6 0 0 0 18 0 0 0 2 box3u2p.dat
1 16 176 6 0 0 1 0 0 0 2 16.87 0 0 rect.dat
1 16 140 6 0 0 -1 0 0 0 -2 6 0 0 rect3.dat
1 16 70 4 0 2.3977 0 0 0 6 0 0 0 2 box3u4p.dat
1 16 90 4 0 2.3977 0 0 0 6 0 0 0 2 box3u4p.dat
1 16 110 4 0 2.3977 0 0 0 6 0 0 0 2 box3u4p.dat
1 16 70 8 0 30 0 0 0 -8 0 0 0 40 box3u4p.dat
1 16 20 30 0 0 1 0 2 0 0 0 0 6 rect.dat
1 16 180 4 0 0 -1 0 0 0 4 20 0 0 rect.dat
1 16 88 4 0 48 0 0 0 -1 0 0 0 -16 rect2p.dat
0 // Faces
4 16 40 0 40 37 0 40 37 0 -40 40 0 -40
4 16 37 0 -40 37 0 40 22.5 0 40 22 0 -40
4 16 176 8 16.87 180 8 20 180 8 -20 176 8 -16.87
4 16 100 0 40 100 0 -40 180 0 -20 180 0 20
4 16 136 16 -16 136 16 16 140 16 20 140 16 -20
4 16 176 4 -16.87 171 4 -16 171 4 16 176 4 16.87
4 16 140 4 -16 140 4 16 162 4 16 162 4 -16
4 16 171 4 -16 169 4 -16 169 4 16 171 4 16
4 16 22 0 -40 22.5 0 40 20 0 100 20 0 -100
3 16 6 24 0 20 24 -100 20 24 100
4 16 24 32 36 24 31 3.5 24 31 -3.5 24 32 -36
4 16 36 31 -3.5 36 31 3.5 36 32 36 36 32 -36
4 16 24 32 36 24 32 -36 20 32 -6 20 32 6
4 16 24 31 -3.5 24 31 3.5 24 22 2 24 22 -2
4 16 36 31 -3.5 36 22 -2 36 22 2 36 31 3.5
3 16 8 28 0 20 28 40 20 28 -40
4 16 40 32 60 40 25 2 40 25 -2 40 32 -60
4 16 40 32 60 40 32 -60 36 32 -36 36 32 36
4 16 162 4 16 169 4 16 169 4 -16 162 4 -16
4 16 136 16 -16 136 10 -2 136 10 2 136 16 16
4 16 140 16 -20 140 16 20 140 8 6 140 8 -6
4 16 127.6023 10 2 136 10 2 136 10 -2 127.6023 10 -2
4 16 -18 0 -102 18 0 -102 20 0 -100 -20 0 -100
4 16 1 0 -133.25 1.25 0 -131.25 -1.25 0 -131.25 -1 0 -133.25
4 16 1.25 0 -148.75 -1.25 0 -148.75 -4.2486 0 -151.25 4.2486 0 -151.25
4 16 -1 0 -146.75 -1.25 0 -148.75 1.25 0 -148.75 1 0 -146.75
4 16 1 0 -113.25 1.25 0 -111.25 -1.25 0 -111.25 -1 0 -113.25
4 16 -1 0 -126.75 -1.25 0 -128.75 1.25 0 -128.75 1 0 -126.75
4 16 -1.25 0 -128.75 -1.25 0 -131.25 1.25 0 -131.25 1.25 0 -128.75
4 16 -4.2486 0 -108.75 -1.25 0 -111.25 1.25 0 -111.25 4.2486 0 -108.75
4 16 20 32 -120 -20 32 -120 -16 32 -116 16 32 -116
4 16 18 0 -158 -18 0 -158 -20 0 -160 20 0 -160
4 16 20 24 -100 0 24 -86 -6 24 -86 -20 24 -100
4 16 -20 32 -120 20 32 -120 4 30 -124 -4 30 -124
4 16 -4 30 -124 4 30 -124 4 27 -130 -4 27 -130
4 16 -20 12 -160 -4 27 -130 4 27 -130 20 12 -160
4 16 16 28 -116 -16 28 -116 -8 28 -88 0 28 -88
0 // Edges
2 24 -20 32 -120 20 32 -120
2 24 -18 0 -102 18 0 -102
2 24 -18 0 -158 18 0 -158
2 24 136 10 2 136 10 -2
2 24 136 16 16 136 16 -16
2 24 107 10 2 107 10 -2
2 24 40 32 -60 40 32 60
2 24 140 16 20 140 16 -20
2 24 36 32 36 36 32 -36
2 24 24 32 36 24 32 -36
0 // Conditional line
5 24 54 16 0 54 10 0 54.3977 16 -2 54.3977 16 2
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2025-04-11 17:25:37
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
