File Detail parts/s/5443s01.dat

Unofficial File parts/s/5443s01.dat

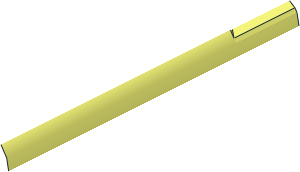

~Technic Axle Joiner 5L Sliding Surface 1/8

File Header:

0 ~Technic Axle Joiner  5L Sliding Surface  1/8
0 Name: s\5443s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 -21 9 0 0 0 0 -9 0 -79 0 1-8cyli.dat
1 16 0 0 -100 9 0 0 0 0 -9 0 -1 0 1-8edge.dat
1 16 0 0 0 9 0 0 0 0 -9 0 -21 0 1-16cyli.dat
1 16 0 0 0 9 0 0 0 0 -9 0 -1 0 1-16edge.dat
1 16 0 0 -21 0.92388 0 -0.38268 -0.38268 0 -0.92388 0 1.5 0 1-16con8.dat
4 16 5.7574 -5.7574 -19.7134 7.5859 -4.5354 -21 7.5859 -4.5354 0 5.7574 -5.7574 0
2 24 5.7574 -5.7574 -19.7134 7.5859 -4.5354 -21
2 24 5.7574 -5.7574 0 7.5859 -4.5354 0
2 24 7.5859 -4.5354 0 8.3151 -3.4443 0
4 16 7.5859 -4.5354 0 7.5859 -4.5354 -21 8.3151 -3.4443 -21 8.3151 -3.4443 0
2 24 7.5859 -4.5354 -21 7.5859 -4.5354 0
5 24 8.3151 -3.4443 0 8.3149 -3.4442 -21 7.5859 -4.5354 0 9 0 0
2 24 6.3639 -6.3639 -21 7.5859 -4.5354 -21
1 16 0 0 0 9 0 0 0 0 -9 0 -1 0 1-16chrd.dat

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

p/1-16con8.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2025-04-12 12:06:12

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2025-04-12 15:48:52

seems like a missing/wrong prim
1-16con8.dat

Philippe Hurbain [Philo]

made the following comment.

2025-04-12 15:56:37

Now submitted.

Rene Rechthaler [Blechtaler]

cancelled their vote.

2025-04-12 15:59:21

ok now its there...
what creates less/smaller gaps? rotating 22.5° or 45°?
