File Detail parts/s/6813s02.dat

Unofficial File parts/s/6813s02.dat

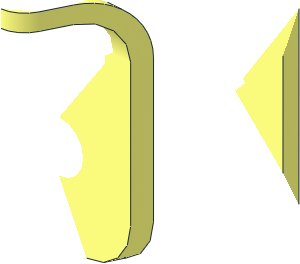

~Suspension with Fender and Axlehole - Vertical Mirrored Geometry

File Header:

0 ~Suspension with Fender and Axlehole - Vertical Mirrored Geometry
0 Name: s\6813s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

3 16 20 -12 36 8 0 36 20 12 36
4 16 20 -20 40 20 -12 36 20 12 36 20 20 40
3 16 6 0 40 20 -20 40 20 20 40
2 24 20 -12 36 20 12 36
2 24 20 20 40 20 -20 40

3 16 4.243 -4.243 0 5.543 -2.296 0 17.88 -24.5 0
3 16 2.296 -5.543 0 4.243 -4.243 0 17.88 -24.5 0
1 16 13.58 -24.5 -10 0 1 4.3 -10 0 0 0 0 10 1-4edge.dat
1 16 13.58 -24.5 -10 0 1 6.02 -14 0 0 0 0 14 48\1-4edge.dat
1 16 13.58 -24.5 -10 0 6.02 0 0 0 -14 -14 0 0 48\1-4cyls2.dat
0 BFC INVERTNEXT
1 16 13.58 -24.5 -10 0 4.3 0 0 0 -10 -10 0 0 1-4cyls2.dat
1 16 13.58 -24.5 -10 0 -1 4.3 -10 0 0 0 0 10 1-8tndis.dat
1 16 13.58 -24.5 -10 0 -1 6.02 -14 0 0 0 0 14 48\1-8chrd.dat
1 16 13.58 -24.5 -10 4.3 -1 0 0 0 -10 10 0 0 1-8tndis.dat
1 16 13.58 -24.5 -10 6.02 -1 0 0 0 -14 14 0 0 48\1-8chrd.dat
3 16 13.58 -38.5 -10 13.58 -34.5 -10 16.62053 -34.5 -2.929
3 16 13.58 -38.5 -10 16.62053 -34.5 -2.929 17.836742 -34.3994 -.1006
4 16 16.62053 -34.5 -2.929 16.62053 -31.571 -2.929 17.88 -31.571 0 17.836742 -34.3994 -.1006
3 16 17.836742 -34.3994 -.1006 17.88 -31.571 0 19.6 -24.5 4
3 16 19.6 -24.5 4 17.88 -31.571 0 17.88 -24.5 0
4 16 13.58 -24.5 4 19.6 -24.5 4 7.5 -15 4 7.5 -20 4
3 16 7.5 -15 4 19.6 -24.5 4 8 -8 4
3 16 8 -8 4 19.6 -24.5 4 8 0 4
3 16 5.543 -2.296 0 6 0 0 17.88 -24.5 0
4 16 17.88 -24.5 0 13.58 -24.5 0 0 -6 0 2.296 -5.543 0
1 16 8.6 9 4 11 -1.72 0 0 0 11 0 -4 0 1-4cylo.dat
1 16 8.6 9 4 11 0 0 0 0 11 0 -1 0 1-4chrd.dat
1 16 6.88 9 0 11 0 0 0 0 11 0 1 0 1-4chrd.dat
4 16 4.243 4.243 0 2.296 5.543 0 6.88 20 0 17.88 9 0
3 16 2.296 5.543 0 0 6 0 6.88 20 0
4 16 6 0 0 5.543 2.296 0 17.88 9 0 17.88 -24.5 0
3 16 17.88 9 0 5.543 2.296 0 4.243 4.243 0
2 24 17.88 -24.5 0 17.88 9 0
2 24 19.6 9 4 19.6 -24.5 4
4 16 17.88 -24.5 0 17.88 9 0 19.6 9 4 19.6 -24.5 4
4 16 7.5 20 4 7.5 15 4 19.6 9 4 8.6 20 4
3 16 7.5 15 4 8 8 4 19.6 9 4
4 16 8 8 4 8 0 4 19.6 -24.5 4 19.6 9 4
3 16 6.88 20 0 7.5 20 4 8.6 20 4
2 24 7.5 20 4 8.6 20 4
1 16 7 -38.5 -16 -1.52 0 4 0 4 0 -4 0 0 1-4cylo.dat
1 16 7 -38.5 -16 -1.52 0 4 0 1 0 -4 0 0 1-4chrd.dat
1 16 7 -34.5 -16 -1.52 0 4 0 -1 0 -4 0 0 1-4chrd.dat
4 16 13.58 -38.5 -10 11 -38.5 -16 11 -34.5 -16 13.58 -34.5 -10
2 24 11 -38.5 -16 13.58 -38.5 -10
2 24 13.58 -34.5 -10 11 -34.5 -16

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2025-04-12 12:37:11
