File Detail parts/s/6813s01.dat

Unofficial File parts/s/6813s01.dat

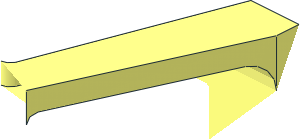

~Suspension with Fender and Axlehole - Wishbones, Quarter

File Header:

0 ~Suspension with Fender and Axlehole - Wishbones, Quarter
0 Name: s\6813s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 BFC INVERTNEXT
1 16 0 -20 10.4749 0 0 2.1216 0 3.5 0 -3.5 0 0 1-8cylo.dat
1 16 0 -20 10.4749 0 0 2.1216 0 1 0 -3.5 0 0 1-8tndis.dat
1 16 0 -16.5 10.4749 0 0 2.1216 0 -1 0 -3.5 0 0 1-8tndis.dat

4 16 6 0 40 5.543 -2.296 40 8.764 -13.247 40 10.763 -14.358 40
3 16 8.764 -13.247 40 5.543 -2.296 40 4.243 -4.243 40
3 16 8.764 -13.247 40 4.243 -4.243 40 2.296 -5.543 40
4 16 0 -12 40 8.764 -13.247 40 2.296 -5.543 40 0 -6 40
3 16 11.449 -20 40 20 -20 40 11.408 -16.5 40
3 16 11.408 -16.5 40 20 -20 40 10.763 -14.358 40
3 16 6 0 40 10.763 -14.358 40 20 -20 40
2 24 11.449 -20 40 11.408 -16.5 40
2 24 11.408 -16.5 40 10.763 -14.358 40
2 24 10.763 -14.358 40 8.764 -13.247 40
2 24 0 -12 40 8.764 -13.247 40
2 24 20 -20 40 11.449 -20 40

4 16 20 -20 40 11.449 -20 40 1.5 -20 8 20 -20 36
4 16 1.5002 -20 6.9749 7.5 -20 4 20 -20 36 1.5 -20 8
3 16 7.5 -20 4 1.5002 -20 6.9749 0 -20 6.9749
2 24 20 -20 36 7.5 -20 4
2 24 20 -20 40 20 -20 36
2 24 1.5 -20 8 11.449 -20 40

3 16 20 -20 40 20 -20 36 20 -12 36
3 16 19.8811 -13.7222 35.6956 20 -12 36 20 -20 36
3 16 19.8811 -13.7222 35.6956 20 -20 36 19.5423 -15.182 34.8284
3 16 19.5423 -15.182 34.8284 20 -20 36 19.0355 -16.1576 33.5308
3 16 19.0355 -16.1576 33.5308 20 -20 36 18.4375 -16.5 32
4 16 7.5 -20 4 8.0859 -16.5 5.5 18.4375 -16.5 32 20 -20 36
3 16 7.5 -20 4 7.5 -15 4 7.6716 -16.0607 4.4394
3 16 7.5 -20 4 7.6716 -16.0607 4.4394 8.0859 -16.5 5.5
2 24 18.4375 -16.5 32 8.0859 -16.5 5.5
2 24 19.5423 -15.182 34.8284 19.8811 -13.7222 35.6956
2 24 19.8811 -13.7222 35.6956 20 -12 36
2 24 19.0355 -16.1576 33.5308 18.4375 -16.5 32
2 24 19.0355 -16.1576 33.5308 19.5423 -15.182 34.8284
2 24 20 -20 36 20 -12 36
2 24 8.0859 -16.5 5.5 7.6716 -16.0607 4.4394
2 24 7.5 -15 4 7.6716 -16.0607 4.4394
2 24 7.5 -20 4 7.5 -15 4

4 16 19.0355 -16.1576 33.5308 18.4375 -16.5 32 8.931 -16.5 32 9.2833 -16.1576 33.5308
4 16 19.5423 -15.182 34.8284 19.0355 -16.1576 33.5308 9.2833 -16.1576 33.5308 9.395 -15.182 34.8284
4 16 19.8811 -13.7222 35.6956 19.5423 -15.182 34.8284 9.395 -15.182 34.8284 9.2998 -14.358 35.3179
3 16 9.2998 -14.358 35.3179 8.2738 -13.7222 35.6956 19.8811 -13.7222 35.6956
4 16 19.8811 -13.7222 35.6956 8.2738 -13.7222 35.6956 7.4451 -13.247 35.7796 20 -12 36
3 16 20 -12 36 7.4451 -13.247 35.7796 0 -12.0038 35.9993
4 16 0 -12.0038 35.9993 0 -8 36 8 -8 36 20 -12 36
3 16 8 -8 36 8 0 36 20 -12 36
3 16 0 -16.5 6.9749 1.5002 -16.5 6.9749 8.0859 -16.5 5.5
3 16 1.5002 -16.5 6.9749 1.5 -16.5 8 8.0859 -16.5 5.5
4 16 8.0859 -16.5 5.5 1.5 -16.5 8 8.931 -16.5 32 18.4375 -16.5 32
2 24 8.931 -16.5 32 9.2833 -16.1576 33.5308
2 24 7.4451 -13.247 35.7796 0 -12.0038 35.9993
2 24 8.2738 -13.7222 35.6956 7.4451 -13.247 35.7796
2 24 8.2738 -13.7222 35.6956 9.2998 -14.358 35.3179
2 24 9.2833 -16.1576 33.5308 9.395 -15.182 34.8284
2 24 9.2998 -14.358 35.3179 9.395 -15.182 34.8284
2 24 8.931 -16.5 32 1.5 -16.5 8

3 16 7.4451 -13.247 35.7796 0 -12 40 0 -12.0038 35.9993
3 16 0 -12 40 7.4451 -13.247 35.7796 8.764 -13.247 40
4 16 11.408 -16.5 40 10.763 -14.358 40 9.2998 -14.358 35.3179 9.395 -15.182 34.8284
3 16 9.395 -15.182 34.8284 9.2833 -16.1576 33.5308 11.408 -16.5 40
3 16 11.408 -16.5 40 9.2833 -16.1576 33.5308 8.931 -16.5 32
3 16 11.408 -16.5 40 8.931 -16.5 32 11.449 -20 40
4 16 8.764 -13.247 40 8.2738 -13.7222 35.6956 9.2998 -14.358 35.3179 10.763 -14.358 40
3 16 8.2738 -13.7222 35.6956 8.764 -13.247 40 7.4451 -13.247 35.7796
4 16 11.449 -20 40 8.931 -16.5 32 1.5 -16.5 8 1.5 -20 8

5 24 11.449 -20 40 1.5 -16.5 8 8.931 -16.5 32 1.5 -20 8
5 24 8.764 -13.247 40 7.4451 -13.247 35.7796 8.2738 -13.7222 35.6956 0 -12 40
5 24 19.0355 -16.1576 33.5308 9.2833 -16.1576 33.5308 9.395 -15.182 34.8284 18.4375 -16.5 32
5 24 0 -12.0038 35.9993 20 -12 36 0 -8 36 7.4451 -13.247 35.7796
5 24 8.2738 -13.7222 35.6956 19.8811 -13.7222 35.6956 9.2998 -14.358 35.3179 7.4451 -13.247 35.7796
5 24 7.4451 -13.247 35.7796 0 -12 40 8.764 -13.247 40 0 -12.0038 35.9993
5 24 19.5423 -15.182 34.8284 9.395 -15.182 34.8284 19.0355 -16.1576 33.5308 9.2998 -14.358 35.3179
5 24 8.931 -16.5 32 18.4375 -16.5 32 8.0859 -16.5 5.5 9.2833 -16.1576 33.5308
5 24 8.931 -16.5 32 11.408 -16.5 40 11.449 -20 40 9.2833 -16.1576 33.5308
5 24 9.2833 -16.1576 33.5308 11.408 -16.5 40 9.395 -15.182 34.8284 8.931 -16.5 32
5 24 9.2998 -14.358 35.3179 10.763 -14.358 40 8.764 -13.247 40 9.395 -15.182 34.8284

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2025-04-12 12:37:11
