Unofficial File parts/s/2212s01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

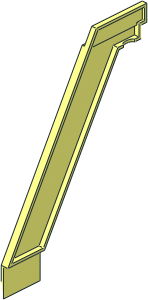

0 ~Duplo Staircase - Half
0 Name: s\2212s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show file code:
0 // top
4 16 40 0 -36 40 0 -54.25 44 0 -54.25 44 0 40
1 16 48 -10 4.5 -4 0 0 0 -14 0 0 0 45.5 box2-5.dat
1 16 42 132 -127.125 0 0 -2 -132 1 0 72.875 0 0 rect3.dat
4 16 44 0 -54.25 44 264 -200 52 264 -200 52 -24 -41
3 16 44 0 -54.25 52 -24 -41 44 -24 -41
2 24 40 0 -54.25 40 0 -36
2 24 44 0 40 44 0 -54.25
0 // bottom
1 16 48 4 45 -4 0 0 0 -1 0 0 0 -5 rect3.dat
3 16 40 312 -196 40 312 -168 44 312 -200
4 16 44 312 -200 40 312 -168 40 312 -164 44 312 -134
1 16 46 144 -67 -6 0 0 0 -1 -120 0 0 67 rect3.dat
3 16 40 312 -164 40 312 -134 44 312 -134
1 16 52 24 18 0 0 -5 0 -1 0 10 0 0 2-4ndis.dat
4 16 52 24 40 52 24 28 47 24 28 40 24 36
4 16 40 24 36 47 24 28 47 24 18 40 24 4
4 16 40 24 4 47 24 18 47 24 8 40 24 0
4 16 52 24 0 40 24 0 47 24 8 52 24 8
2 24 40 312 -164 40 312 -134
0 // inside
4 16 44 -24 50 44 0 40 44 0 -54.25 44 -24 -41
4 16 44 4 50 44 4 40 44 0 40 44 -24 50
4 16 40 312 -134 40 312 -164 40 288 -164 40 264 -134
4 16 40 264 -134 40 288 -164 40 288 -200 40 264 -200
4 16 40 24 0 40 264 -134 40 264 -200 40 0 -54.25
4 16 40 0 -54.25 40 0 -36 40 4 0 40 24 0
0 // outside perifery
0 BFC INVERTNEXT
1 16 48 288 -167 0 -4 0 0 0 -24 33 0 0 box2-5.dat
4 16 52 0 36 52 20 36 52 24 40 52 4 40
4 16 52 0 36 52 4 40 52 4 50 52 0 46
4 16 52 0 46 52 4 50 52 -24 50 52 -20 46
4 16 52 -20 -38 52 -20 46 52 -24 50 52 -24 -41
4 16 52 264 -134 52 24 0 52 20 -2 52 260 -136
4 16 52 264 -200 52 264 -134 52 260 -136 52 260 -193
4 16 52 260 -193 52 -20 -38 52 -24 -41 52 264 -200
0 BFC INVERTNEXT
1 16 52 20 18 0 0 -5 0 4 0 10 0 0 2-4cylo.dat
4 16 52 20 28 52 24 28 52 24 40 52 20 36
4 16 52 20 -2 52 24 0 52 24 8 52 20 8
2 24 52 20 -2 52 20 8
2 24 52 24 8 52 24 0
2 24 52 24 28 52 20 28
2 24 52 24 28 52 24 40
2 24 52 20 28 52 20 36
2 24 52 20 8 52 24 8
0 // inset
4 16 48 0 46 48 -20 46 48 -20 -38 48 0 36
4 16 48 4 -51.2857 48 4 36 48 0 36 48 -20 -38
4 16 44 260 -193 44 260 -136 44 20 -2 44 4 -51.2857
4 16 44 20 36 44 4 36 44 4 -51.2857 44 20 -2
4 16 52 0 36 48 0 36 48 4 36 52 20 36
4 16 44 20 36 52 20 36 48 4 36 44 4 36
1 16 50 0 41 0 0 2 0 1 0 -5 0 0 rect.dat
1 16 46 4 -7.64285 0 0 2 0 -1 0 43.64285 0 0 rect.dat
0 BFC INVERTNEXT
1 16 50 -10 4 -2 0 0 0 -10 0 0 0 42 box2-7.dat
1 16 48 260 -164.5 0 0 4 0 1 0 -28.5 0 0 rect.dat
1 16 48 140 -69 4 0 0 0 1 -120 0 0 67 rect3.dat
4 16 48 4 -51.2857 48 -20 -38 52 -20 -38 52 260 -193
4 16 48 4 -51.2857 52 260 -193 44 260 -193 44 4 -51.2857
1 16 52 20 18 0 0 -5 0 1 0 10 0 0 2-4ndis.dat
4 16 44 20 -2 52 20 -2 52 20 8 47 20 8
4 16 44 20 -2 47 20 8 47 20 18 44 20 36
4 16 44 20 36 47 20 28 52 20 28 52 20 36
3 16 47 20 18 47 20 28 44 20 36
2 24 48 4 -51.2857 48 -20 -38
2 24 44 20 36 44 4 36
2 24 52 20 36 44 20 36
2 24 44 20 36 44 20 -2
2 24 52 260 -193 52 -20 -38
2 24 44 260 -193 44 4 -51.2857
2 24 52 20 36 52 0 36
2 24 48 4 36 48 0 36
2 24 48 -20 -38 52 -20 -38
0 // front
4 16 40 288 -200 44 312 -200 44 264 -200 40 264 -200
2 24 52 264 -200 52 -24 -41
2 24 44 0 -54.25 44 -24 -41
2 24 40 288 -200 40 264 -200
0 // back
3 16 44 4 40 52 4 40 52 24 40
1 16 42 288 -134 0 0 -2 24 0 0 0 -1 0 rect3.datStatus
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Part Dependencies
Official parents and subparts
Part Events
Peter Blomberg [WUIt]
initially submitted the part.
2025-04-13 20:27:47
Peter Blomberg [WUIt]
made the following comment.
2025-04-28 01:44:31
Can an admin add "(Half)" to the description of the subfile to distinguish it more clearly from the parent part?
Peter Blomberg [WUIt]
edited the part header.
2025-04-30 20:37:09
Header Edits
description:
~Duplo Staircase
to
~Duplo Staircase - Half
Clarified subpart distinction from main part by appending description
Willy Tschager [Holly-Wood]
made the following comment.
2025-09-08 12:46:05
* Edge in box and rect:
2 24 52 0 46 48 0 46
* You caught all T-junk but one:
2 25 52 264 -134 40 264 -134
2 24 52 0 46 48 0 46
* You caught all T-junk but one:
2 25 52 264 -134 40 264 -134
Peter Blomberg [WUIt]
posted a vote of Hold
2025-09-15 18:59:26
Will fix
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-09-15 19:18:28
Removed overlap.
Left T-junction because any fix would either create another or introduce a really long and narrow triangle.
Left T-junction because any fix would either create another or introduce a really long and narrow triangle.
Willy Tschager [Holly-Wood]
made the following comment.
2025-09-16 11:10:25
* Looks good beside the rect
