Unofficial File parts/6640a.dat
Part Attributes:
File Header:

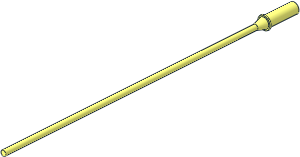

0 Electric Technic Fiber Optics Cable 12L
0 Name: 6640a.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink x165, Rebrickable 6640
0 !HISTORY 2022-12-20 [PTadmin] Official Update 2022-06
0 !HISTORY 2025-04-19 [Blechtaler] made flexible, used end segments
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 6640k01.dat
1 16 0 0 -211 1 0 0 0 1 0 0 0 203 6640k03.dat
1 16 0 0 -211 1 0 0 0 1 0 0 0 1 6640k02.dat
Status:
Needs More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
None
with rigid end sections (center cyli is the flexible section)
2025-04-19 18:01:55
Doesn't the middle part have to be a k-section too?
Or is that handled by the LDCad script? A not only lengthwise scaled 4-4cyli.
Or is that handled by the LDCad script? A not only lengthwise scaled 4-4cyli.
2025-04-19 18:09:38
R2 flex segments do exist under other names, but it would be good to have one here.
2025-04-19 20:36:41
i realized that most segments dont match the orientation of the main parts:
https://library.ldraw.org/parts/41187
should I rotate the ends/center too?
https://library.ldraw.org/parts/41187
should I rotate the ends/center too?
2025-04-20 05:54:19
It's indeed a mess, as there are two "preferred" orientations. One is the orientation of the main part, the other is vertical (like cyli) which I think was the expected orientation for the old lsynth program.
2025-04-20 07:42:42
But oriented like the main part also works? the flexible Segment should be 1LDU long?
2025-05-13 22:25:16
