File Detail parts/75815.dat

Unofficial File parts/75815.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

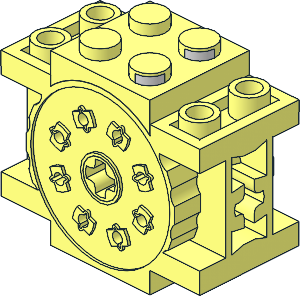

0 Electric Technic Fiber Optics Element
0 Name: 75815.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP positions of straight Fiber Optics Cable 12L
0 !HELP 1 16 6.888 17.37 -231 1 0 0 0 1 0 0 0 -1 6640a.dat
0 !HELP 1 16 16.63 27.112 -231 1 0 0 0 1 0 0 0 -1 6640a.dat
0 !HELP 1 16 16.63 40.888 -231 1 0 0 0 1 0 0 0 -1 6640a.dat
0 !HELP 1 16 6.888 50.63 -231 1 0 0 0 1 0 0 0 -1 6640a.dat
0 !HELP 1 16 -6.888 50.63 -231 1 0 0 0 1 0 0 0 -1 6640a.dat
0 !HELP 1 16 -16.63 40.888 -231 1 0 0 0 1 0 0 0 -1 6640a.dat
0 !HELP 1 16 -16.63 27.112 -231 1 0 0 0 1 0 0 0 -1 6640a.dat
0 !HELP 1 16 -6.888 17.37 -231 1 0 0 0 1 0 0 0 -1 6640a.dat
0 !HELP positions of the thin end 6640k02
0 !HELP (also of the flexible section 6640k03)
0 !HELP 1 16 6.888 17.37 -20 1 0 0 0 1 0 0 0 -1 6640k02.dat
0 !HELP 1 16 16.63 27.112 -20 1 0 0 0 1 0 0 0 -1 6640k02.dat
0 !HELP 1 16 16.63 40.888 -20 1 0 0 0 1 0 0 0 -1 6640k02.dat
0 !HELP 1 16 6.888 50.63 -20 1 0 0 0 1 0 0 0 -1 6640k02.dat
0 !HELP 1 16 -6.888 50.63 -20 1 0 0 0 1 0 0 0 -1 6640k02.dat
0 !HELP 1 16 -16.63 40.888 -20 1 0 0 0 1 0 0 0 -1 6640k02.dat
0 !HELP 1 16 -16.63 27.112 -20 1 0 0 0 1 0 0 0 -1 6640k02.dat
0 !HELP 1 16 -6.888 17.37 -20 1 0 0 0 1 0 0 0 -1 6640k02.dat

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 6637c01, Rebrickable 6637

0 !HISTORY 1997-09-29 [PTadmin] Official Update 1997-15
0 !HISTORY 1999-02-01 [PTadmin] Official Update 1999-01
0 !HISTORY 2007-07-18 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2019-05-02 [MagFors] Renamed from 6637
0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
0 !HISTORY 2025-04-19 [Blechtaler] added the positions of the fiber optics cable

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 6637c01.dat
1 16 0 34 0 1 0 0 0 1 0 0 0 1 6639.dat

Status:

Needs More Votes (F)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/6638.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-04-19 13:57:04

added the position of the flex cables (and the thin end sections)
should these be a !HELP ?

Magnus Forsberg [MagFors]

posted a vote of Hold.

2025-04-19 17:57:12

Should be added as Help info.
Don't think many model builders open the part script to look for info like this.

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2025-05-13 22:24:25

comments transformed to !HELP
