Unofficial File parts/95270.dat
Part Attributes:
File Header:

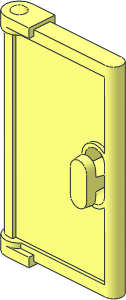

0 Door 1 x 2 x 3 with Holes in Handle Type 2
0 Name: 95270.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP In window frame 60594 place door at -32 4 -5 and 32 64 -5
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 60614
Show contents
1 16 -1 56 0 0 0 -2.5 0 -52 0 2.5 0 0 2-4cylo.dat
1 16 -0.25 30 -2 0 0.75 0 26 0 0 0 0 -0.5 box2-7.dat
0 BFC INVERTNEXT
1 16 25.7 26 -2.5 3 0 0 0 0 -3 0 5 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 25.7 26 0 0 0 3 0 2.5 0 -2.5 0 0 box3u7a.dat
2 24 28.45 28.2 -4.9 28.7 28.5 -2.5
2 24 22.7 28.5 -2.5 22.95 28.2 -4.9
4 16 22.95 28.2 -4.9 28.45 28.2 -4.9 28.7 28.5 -2.5 22.7 28.5 -2.5
1 16 25.7 26.5 -5 -0.25 0 0 0 0 -0.25 0 -2.5 0 2-4con10.dat
1 16 25.7 26.5 -7.5 -2.5 0 0 0 0 -2.5 0 -1 0 2-4edge.dat
1 16 25.7 26.5 -7.5 -2.5 0 0 0 0 -2.5 0 1 0 2-4chrd.dat
1 16 25.7 26.5 -5 -2.75 0 0 0 0 -2.75 0 -1 0 2-4edge.dat
1 16 25.7 26.5 -5 -2.75 0 0 0 0 -2.75 0 -1 0 2-4chrd.dat
2 24 22.95 28.2 -4.9 22.95 26.5 -5
2 24 28.45 26.5 -5 28.45 28.2 -4.9
4 16 22.95 28.2 -4.9 22.95 26.5 -5 28.45 26.5 -5 28.45 28.2 -4.9
2 24 22.95 28.2 -4.9 28.45 28.2 -4.9
1 16 25.7 26 2.5 3 0 0 0 0 -3 0 -1 0 2-4ndis.dat
1 16 25.7 26 -2.5 -4 0 0 0 0 -4 0 1 0 3-8cylo.dat
1 16 28.6142 23.1716 -2 0 0 0.0858 0 1 0 -0.5 0 0 rect.dat
1 16 25.7 26 -1.5 -4 0 0 0 0 -4 0 1 0 1-4ndis.dat
1 16 25.7 26 -1.5 0 0 4 -4 0 0 0 1 0 1-8tndis.dat
1 16 25.7 26 -2.5 3 0 0 0 0 -3 0 1 0 1-8tndis.dat
1 16 25.7 26 -2.5 -1 0 0 0 0 -1 0 1 0 3-8ring3.dat
4 16 28.7 23.1716 -2.5 28.5284 23.1716 -2.5 27.8213 23.8787 -2.5 28.7 23.8787 -2.5
0 BFC INVERTNEXT
1 16 25.7 34 -2.5 3 0 0 0 0 3 0 5 0 2-4cylo.dat
0 BFC INVERTNEXT
1 16 25.7 34 0 0 0 3 0 -2.5 0 -2.5 0 0 box3u7a.dat
2 24 28.7 31.5 -2.5 28.45 31.8 -4.9
2 24 22.95 31.8 -4.9 22.7 31.5 -2.5
4 16 28.7 31.5 -2.5 28.45 31.8 -4.9 22.95 31.8 -4.9 22.7 31.5 -2.5
1 16 25.7 33.5 -5 -0.25 0 0 0 0 0.25 0 -2.5 0 2-4con10.dat
1 16 25.7 33.5 -7.5 -2.5 0 0 0 0 2.5 0 -1 0 2-4edge.dat
1 16 25.7 33.5 -7.5 -2.5 0 0 0 0 2.5 0 1 0 2-4chrd.dat
1 16 25.7 33.5 -5 -2.75 0 0 0 0 2.75 0 -1 0 2-4edge.dat
1 16 25.7 33.5 -5 -2.75 0 0 0 0 2.75 0 -1 0 2-4chrd.dat
2 24 22.95 33.5 -5 22.95 31.8 -4.9
2 24 28.45 31.8 -4.9 28.45 33.5 -5
4 16 28.45 33.5 -5 22.95 33.5 -5 22.95 31.8 -4.9 28.45 31.8 -4.9
2 24 28.45 31.8 -4.9 22.95 31.8 -4.9
1 16 25.7 34 2.5 3 0 0 0 0 3 0 -1 0 2-4ndis.dat
1 16 25.7 34 -2.5 -4 0 0 0 0 4 0 1 0 3-8cylo.dat
1 16 28.6142 36.8284 -2 -0.0858 0 0 0 -1 0 0 0 0.5 rect.dat
1 16 25.7 34 -1.5 -4 0 0 0 0 4 0 1 0 1-4ndis.dat
1 16 25.7 34 -1.5 0 0 4 4 0 0 0 1 0 1-8tndis.dat
1 16 25.7 34 -2.5 3 0 0 0 0 3 0 1 0 1-8tndis.dat
1 16 25.7 34 -2.5 -1 0 0 0 0 1 0 1 0 3-8ring3.dat
4 16 27.8213 36.1213 -2.5 28.5284 36.8284 -2.5 28.7 36.8284 -2.5 28.7 36.1213 -2.5
4 16 22.7 28.5 -2.5 22.7 31.5 -2.5 22.95 31.8 -4.9 22.95 28.2 -4.9
4 16 22.95 26.5 -5 22.95 33.5 -5 23.2 33.5 -7.5 23.2 26.5 -7.5
4 16 22.95 28.2 -4.9 22.95 31.8 -4.9 22.95 33.5 -5 22.95 26.5 -5
4 16 28.45 31.8 -4.9 28.7 31.5 -2.5 28.7 28.5 -2.5 28.45 28.2 -4.9
4 16 28.2 33.5 -7.5 28.45 33.5 -5 28.45 26.5 -5 28.2 26.5 -7.5
2 24 28.7 26 -2.5 28.7 34 -2.5
4 16 28.45 33.5 -5 28.45 31.8 -4.9 28.45 28.2 -4.9 28.45 26.5 -5
1 16 22.2 30 -2.5 0 0 0.5 4 0 0 0 1 0 rect2p.dat
1 16 21.7 30 -2 0 1 0 0 0 4 0.5 0 0 rect1.dat
1 16 25.7 30 -7.5 0 0 2.5 3.5 0 0 0 1 0 rect2p.dat
1 16 28.7 46.4142 -2 0 1 0 0 0 9.5858 0.5 0 0 rect3.dat
2 24 0.5 56 -1.5 0.5 4 -1.5
4 16 28.7 56 -2.5 29 59 -2.5 29 1 -2.5 28.7 4 -2.5
1 16 28.7 13.5858 -2 0 1 0 0 0 -9.5858 -0.5 0 0 rect3.dat
1 16 0 1.3 0 0 7 0 -1.3 0 0 0 0 4 box5-4a.dat
1 16 29 1 0 0 0 2.5 0 58 0 2.5 0 0 2-4cylo.dat
1 16 29 1 0 0 0 2.5 0 1 0 2.5 0 0 2-4chrd.dat
1 16 0 4 0 -4 0 0 0 -1.4 0 0 0 -4 3-8cyli.dat
1 16 0 4 0 -4 0 0 0 -1 0 0 0 -4 3-8edge.dat
1 16 0 0 0 0 0 -4 0 1 0 4 0 0 2-4edge.dat
1 16 0 0 0 0 0 -4 0 1 0 4 0 0 2-4chrd.dat
1 16 0 0 0 0 0 -4 0 2.6 0 4 0 0 2-4cyli.dat
1 16 0 4 0 -4 0 0 0 -1.4 0 0 0 4 3-8cyli.dat
1 16 0 4 0 -4 0 0 0 -1 0 0 0 4 3-8edge.dat
2 24 7 2.6 2.5 2.982 2.6 2.5
2 24 7 2.6 2.5 7 1 2.5
4 16 2.982 2.6 -2.5 2.8284 2.6 -2.8284 2.8284 4 -2.8284 2.982 4 -2.5
2 24 2.8284 2.6 -2.8284 2.982 2.6 -2.5
2 24 2.8284 4 -2.8284 2.982 4 -2.5
1 16 0 2.6 0 0 0 4 0 -1 0 -4 0 0 1-8edge.dat
4 16 2.8284 4 2.8284 2.8284 2.6 2.8284 2.982 2.6 2.5 2.982 4 2.5
2 24 2.982 2.6 2.5 2.8284 2.6 2.8284
2 24 2.982 4 2.5 2.8284 4 2.8284
1 16 0 2.6 0 0 0 4 0 -1 0 4 0 0 1-8edge.dat
2 24 2.982 2.6 2.5 2.982 4 2.5
1 16 18 1 0 0 0 -11 0 1 0 2.5 0 0 rect3.dat
2 24 2.982 4 -2.5 28.7 4 -2.5
2 24 0.5 4 -1.5 28.7 4 -1.5
4 16 0.5 4 -1.5 28.7 4 -1.5 28.7 4 -2.5 2.982 4 -2.5
4 16 2.982 4 -2.5 28.7 4 -2.5 7 2.6 -2.5 2.982 2.6 -2.5
4 16 7 1 -2.5 7 2.6 -2.5 28.7 4 -2.5 29 1 -2.5
1 16 0 4 0 -4 0 0 0 -1 0 0 0 -4 3-8chrd.dat
1 16 0 4 0 -4 0 0 0 -1 0 0 0 4 3-8chrd.dat
4 16 0.5 4 -1.5 2.982 4 -2.5 2.8284 4 -2.8284 -4 4 0
4 16 2.982 4 2.5 0.5 4 -1.5 -4 4 0 2.8284 4 2.8284
1 16 0 58.7 0 0 7 0 1.3 0 0 0 0 4 box5-4a.dat
1 16 29 59 0 0 0 2.5 0 -1 0 2.5 0 0 2-4chrd.dat
1 16 0 56 0 -4 0 0 0 1.4 0 0 0 -4 3-8cyli.dat
1 16 0 56 0 -4 0 0 0 1 0 0 0 -4 3-8edge.dat
1 16 0 60 0 0 0 -4 0 -1 0 4 0 0 2-4edge.dat
1 16 0 60 0 0 0 -4 0 -1 0 4 0 0 2-4chrd.dat
1 16 0 60 0 0 0 -4 0 -2.6 0 4 0 0 2-4cyli.dat
1 16 0 56 0 -4 0 0 0 1.4 0 0 0 4 3-8cyli.dat
1 16 0 56 0 -4 0 0 0 1 0 0 0 4 3-8edge.dat
2 24 2.982 57.4 2.5 7 57.4 2.5
2 24 7 59 2.5 7 57.4 2.5
4 16 2.8284 56 -2.8284 2.8284 57.4 -2.8284 2.982 57.4 -2.5 2.982 56 -2.5
2 24 2.982 57.4 -2.5 2.8284 57.4 -2.8284
2 24 2.982 56 -2.5 2.8284 56 -2.8284
1 16 0 57.4 0 0 0 4 0 1 0 -4 0 0 1-8edge.dat
4 16 2.982 57.4 2.5 2.8284 57.4 2.8284 2.8284 56 2.8284 2.982 56 2.5
2 24 2.8284 57.4 2.8284 2.982 57.4 2.5
2 24 2.8284 56 2.8284 2.982 56 2.5
1 16 0 57.4 0 0 0 4 0 1 0 4 0 0 1-8edge.dat
2 24 2.982 56 2.5 2.982 57.4 2.5
1 16 18 59 0 0 0 -11 0 -1 0 -2.5 0 0 rect3.dat
2 24 28.7 56 -2.5 2.982 56 -2.5
2 24 28.7 56 -1.5 0.5 56 -1.5
4 16 28.7 56 -2.5 28.7 56 -1.5 0.5 56 -1.5 2.982 56 -2.5
4 16 7 57.4 -2.5 28.7 56 -2.5 2.982 56 -2.5 2.982 57.4 -2.5
4 16 28.7 56 -2.5 7 57.4 -2.5 7 59 -2.5 29 59 -2.5
1 16 0 56 0 -4 0 0 0 1 0 0 0 -4 3-8chrd.dat
1 16 0 56 0 -4 0 0 0 1 0 0 0 4 3-8chrd.dat
4 16 2.8284 56 -2.8284 2.982 56 -2.5 0.5 56 -1.5 -4 56 0
4 16 -4 56 0 0.5 56 -1.5 2.982 56 2.5 2.8284 56 2.8284
2 24 2.982 2.6 -2.5 2.982 4 -2.5
2 24 2.982 2.6 -2.5 7 2.6 -2.5
2 24 7 1 -2.5 7 2.6 -2.5
2 24 2.982 56 -2.5 2.982 57.4 -2.5
2 24 2.982 57.4 -2.5 7 57.4 -2.5
2 24 7 57.4 -2.5 7 59 -2.5
4 16 28.7 56 -1.5 28.5284 38 -1.5 21.7 38 -1.5 0.5 56 -1.5
4 16 0.5 56 -1.5 21.7 38 -1.5 21.7 22 -1.5 0.5 4 -1.5
4 16 0.5 4 -1.5 21.7 22 -1.5 28.5284 22 -1.5 28.7 4 -1.5
4 16 -1 56 2.5 -1 4 2.5 7 1 2.5 7 59 2.5
2 24 2.982 56 2.5 -1 56 2.5
2 24 2.982 4 2.5 -1 4 2.5
4 16 7 1 2.5 22.7 23 2.5 22.7 37 2.5 7 59 2.5
4 16 29 59 2.5 7 59 2.5 22.7 37 2.5 28.7 37 2.5
4 16 22.7 28.5 2.5 28.7 28.5 2.5 28.7 31.5 2.5 22.7 31.5 2.5
4 16 29 1 2.5 28.7 23 2.5 22.7 23 2.5 7 1 2.5
4 16 29 59 2.5 28.7 37 2.5 28.7 23 2.5 29 1 2.5
5 24 28.45 33.5 -5 22.95 33.5 -5 23.1593 34.5524 -5 22.95 31.8 -4.9
5 24 28.45 26.5 -5 22.95 26.5 -5 28.45 28.2 -4.9 23.1593 25.4476 -5
5 24 28.45 28.2 -4.9 28.45 31.8 -4.9 28.7 31.5 -2.5 28.45 26.5 -5
5 24 22.95 26.5 -5 22.95 33.5 -5 23.2 33.5 -7.5 22.95 28.2 -4.9
5 24 28.7 31.5 -2.5 22.7 31.5 -2.5 28.45 31.8 -4.9 22.7 31.5 2.5
5 24 22.95 31.8 -4.9 22.95 28.2 -4.9 22.95 33.5 -5 22.7 28.5 -2.5
5 24 28.7 28.5 -2.5 22.7 28.5 -2.5 22.7 28.5 2.5 22.95 28.2 -4.9
5 24 28.45 33.5 -5 28.45 26.5 -5 28.45 31.8 -4.9 28.2 26.5 -7.5
1 16 0 60 0 2 0 0 0 -2 0 0 0 -2 bump5000.dat
1 16 0 0 0 2 0 0 0 2 0 0 0 2 bump5000.dat
4 16 28.7 36.8284 -1.5 28.5284 36.8284 -1.5 28.5284 38 -1.5 28.7 56 -1.5
4 16 28.5284 22 -1.5 28.5284 23.1716 -1.5 28.7 23.1716 -1.5 28.7 4 -1.5
5 24 2.8284 2.6 -2.8284 2.8284 4 -2.8284 1.5308 4 -3.6956 2.982 4 -2.5
5 24 2.8284 4 2.8284 2.8284 2.6 2.8284 2.982 4 2.5 1.5308 4 3.6956
5 24 2.8284 57.4 -2.8284 2.8284 56 -2.8284 2.982 56 -2.5 1.5308 56 -3.6956
5 24 2.8284 56 2.8284 2.8284 57.4 2.8284 2.982 56 2.5 1.5308 56 3.6956
Status:
Needs More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
I'd appreciate a better description ;) Compared to 60614, the door pane is thicker and the handle is somewhat different.
2025-04-19 17:03:45
Isn't it missing the hinge bumps?
Oh, they were eaten by my mouse ;)
thin gaps from the tndis around the handle to the corners
misses the complementary condlines at the 3-8cylos at the hinges
common subpart for the two variants 95270 and 60614 (completely round rear holes)?
top/bottom hinge boxes should be split to reduce internal faces/t-junk
misses the complementary condlines at the 3-8cylos at the hinges
common subpart for the two variants 95270 and 60614 (completely round rear holes)?
top/bottom hinge boxes should be split to reduce internal faces/t-junk
2025-06-09 10:54:33
3 16 28.5284 23.1716 -1.5 28.7 23.1716 -1.5 28.7 4 -1.5
should be
4 16 28.5284 22 -1.5 28.5284 23.1716 -1.5 28.7 23.1716 -1.5 28.7 4 -1.5
for the boxes:
1 16 0 1.3 0 0 7 0 -1.3 0 0 0 0 4 box5-4a.dat
should be
1 16 3.5 2.6 0 -3.5 0 0 0 -2.6 0 0 0 4 box3u5p.dat
should be
4 16 28.5284 22 -1.5 28.5284 23.1716 -1.5 28.7 23.1716 -1.5 28.7 4 -1.5
for the boxes:
1 16 0 1.3 0 0 7 0 -1.3 0 0 0 0 4 box5-4a.dat
should be
1 16 3.5 2.6 0 -3.5 0 0 0 -2.6 0 0 0 4 box3u5p.dat
Fixed gaps, corrected the wrong condlines for the hinges cylos. I don't see the point for the rest...
