Official File parts/s/6152as01.dat
File Header:

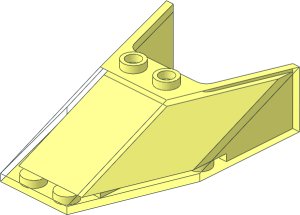

0 ~Windscreen 6 x 4 x 1.333 Airplane with Hollow Studs and Bottom Tabs without Top Surface
0 Name: s\6152as01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6152s01.dat
1 16 0 0 -10 0 0 -1 0 1 0 1 0 0 stug2-2x1.dat
0 // Bottom Tabs
0 BFC INVERTNEXT
1 16 30 32 -10 6 0 0 0 -4 0 0 0 6 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -30 32 -10 6 0 0 0 -4 0 0 0 6 4-4cylo.dat
0 BFC INVERTNEXT
1 16 10 32 -70 6 0 0 0 -4 0 0 0 6 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -10 32 -70 6 0 0 0 -4 0 0 0 6 4-4cylo.dat
4 16 20 32 -60 20 32 -10 24 32 -10 24 32 -16
4 16 30 32 -16 36 32 -16 40 32 -20 20 32 -80
4 16 20 32 -60 24 32 -16 30 32 -16 20 32 -80
1 16 30 32 -10 -6 0 0 0 -1 0 0 0 -6 4-4ndis.dat
1 16 30 32 -10 0 0 -10 0 -1 0 10 0 0 1-8chrd.dat
1 16 30 32 -10 -10 0 0 0 -1 0 0 0 10 1-8chrd.dat
1 16 33 32 -2 0 0 -3 0 -1 0 2 0 0 rect1.dat
4 16 24 32 -4 24 32 -10 20 32 -10 22.929 32 -2.929
4 16 30 32 -4 24 32 -4 22.929 32 -2.929 30 32 0
1 16 30 28 -10 -6 0 0 0 1 0 0 0 -6 4-4ndis.dat
4 16 20 28 -10 20 28 -60 24 28 -16 24 28 -10
4 16 36 28 -16 24 28 -16 20 28 -60 36 28 -20
1 16 30 28 -10 0 0 -10 0 1 0 10 0 0 1-8chrd.dat
1 16 30 28 -10 -10 0 0 0 1 0 0 0 10 1-8chrd.dat
1 16 33 28 -2 0 0 3 0 1 0 2 0 0 rect1.dat
4 16 30 28 -4 30 28 0 22.929 28 -2.929 24 28 -4
4 16 20 28 -10 24 28 -10 24 28 -4 22.929 28 -2.929
4 16 -24 32 -16 -24 32 -10 -20 32 -10 -20 32 -60
4 16 -36 32 -16 -30 32 -16 -20 32 -80 -40 32 -20
4 16 -20 32 -60 -20 32 -80 -30 32 -16 -24 32 -16
1 16 -30 32 -10 6 0 0 0 -1 0 0 0 -6 4-4ndis.dat
1 16 -30 32 -10 0 0 10 0 -1 0 10 0 0 1-8chrd.dat
1 16 -30 32 -10 10 0 0 0 -1 0 0 0 10 1-8chrd.dat
1 16 -33 32 -2 0 0 -3 0 -1 0 2 0 0 rect1.dat
4 16 -20 32 -10 -24 32 -10 -24 32 -4 -22.929 32 -2.929
4 16 -22.929 32 -2.929 -24 32 -4 -30 32 -4 -30 32 0
1 16 -30 28 -10 6 0 0 0 1 0 0 0 -6 4-4ndis.dat
4 16 -24 28 -16 -20 28 -60 -20 28 -10 -24 28 -10
4 16 -20 28 -60 -24 28 -16 -36 28 -16 -36 28 -20
1 16 -30 28 -10 0 0 10 0 1 0 10 0 0 1-8chrd.dat
1 16 -30 28 -10 10 0 0 0 1 0 0 0 10 1-8chrd.dat
1 16 -33 28 -2 0 0 3 0 1 0 2 0 0 rect1.dat
4 16 -22.929 28 -2.929 -30 28 0 -30 28 -4 -24 28 -4
4 16 -24 28 -4 -24 28 -10 -20 28 -10 -22.929 28 -2.929
1 16 30 28 -10 -10 0 0 0 4 0 0 0 10 1-4cylo.dat
1 16 -30 28 -10 10 0 0 0 4 0 0 0 10 1-4cylo.dat
1 16 33 30 0 3 0 0 0 0 -2 0 -1 0 rect1.dat
1 16 -33 30 0 -3 0 0 0 0 2 0 -1 0 rect1.dat
1 16 10 28 -70 6 0 0 0 1 0 0 0 6 2-4ndis.dat
3 16 36 28 -20 20 28 -60 19 28 -70
1 16 20 30 -35 0 1 0 -2 0 0 0 0 -25 rect3.dat
3 16 -36 28 -20 -19 28 -70 -20 28 -60
1 16 -10 28 -70 6 0 0 0 1 0 0 0 6 2-4ndis.dat
4 16 -16 28 -64 -20 28 -60 -19 28 -70 -16 28 -70
4 16 19 28 -70 20 28 -60 16 28 -64 16 28 -70
4 16 4 28 -70 4 28 -64 -4 28 -64 -4 28 -70
4 16 16 28 -64 20 28 -60 -20 28 -60 -16 28 -64
3 16 -20 32 -80 -16 32 -76 -4 32 -76
3 16 4 32 -76 16 32 -76 20 32 -80
3 16 -16 32 -64 -20 32 -60 -4 32 -64
3 16 16 32 -64 4 32 -64 20 32 -60
4 16 4 32 -64 -4 32 -64 -20 32 -60 20 32 -60
4 16 -20 32 -80 -4 32 -76 4 32 -76 20 32 -80
4 16 -4 32 -76 -4 32 -64 4 32 -64 4 32 -76
1 16 -20 30 -35 0 -1 0 2 0 0 0 0 -25 rect3.dat
1 16 0 30 -60 -20 0 0 0 0 2 0 -1 0 rect2p.dat
1 16 10 32 -70 6 0 0 0 -1 0 0 0 6 4-4ndis.dat
1 16 -10 32 -70 6 0 0 0 -1 0 0 0 6 4-4ndis.dat
4 16 -16 32 -64 -16 32 -76 -20 32 -80 -20 32 -60
4 16 16 32 -76 16 32 -64 20 32 -60 20 32 -80
1 16 10 28 -70 6 0 0 0 -1 0 0 0 -6 2-4chrd.dat
1 16 -10 28 -70 6 0 0 0 -1 0 0 0 -6 2-4chrd.dat
2 24 -36 28 -20 -36 28 0
2 24 36 28 -20 36 28 0
1 16 -27.5 16 -19.375 0 0 -8.5 -12 -1 0 25.625 0 25 rect3.dat
1 16 27.5 16 -19.375 0 0 8.5 12 -1 0 -25.625 0 25 rect3.dat
1 16 0 16 -44.375 0 0 -19 -12 -1 0 25.625 0 0 rect.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
