File Detail parts/19063.dat

Official File parts/19063.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

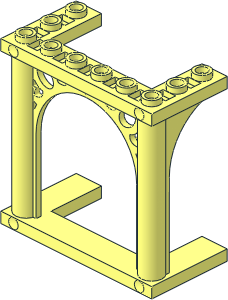

Arch 3 x 6 x 5 Ornamented with Stud with Inner Stopper Ring

File Header:

0 Arch  3 x  6 x  5 Ornamented with Stud with Inner Stopper Ring
0 Name: 19063.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 30613, Rebrickable 30613

0 !HISTORY 2018-01-28 {LEGO Digital Designer} Original part shape
0 !HISTORY 2025-04-22 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05

Show contents

0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30613s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30613s01.dat
0 // Primitives
0 BFC INVERTNEXT
1 16 0 0 0 4 0 0 0 4 0 0 0 5 box5.dat
0 BFC INVERTNEXT
1 16 0 4 50 0 0 40 -4 0 0 0 -40 0 box3u2p.dat
1 16 0 12 2 3 0 0 0 0 3 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 12 -2 3 0 0 0 0 3 0 4 0 4-4cylo.dat
1 16 0 12 -2 3 0 0 0 0 3 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 116 50 0 0 40 -4 0 0 0 -40 0 box3u4a.dat
1 16 0 118 6 41.1716 0 0 0 0 2 0 1 0 rect2p.dat
1 16 0 116 0 1 0 0 0 -1 0 0 0 1 stug3-1x5.dat
0 BFC INVERTNEXT
1 16 0 118 46 0 0 56 -2 0 0 0 -52 0 box3u2p.dat
0 // Faces
4 16 4 0 5 40 0 10 -40 0 10 -4 0 5
4 16 4 0 -5 -4 0 -5 -60 0 -10 60 0 -10
4 16 -46.2 .2 -10 46.2 .2 -10 60 0 -10 -60 0 -10
4 16 -46.2 .2 -10 -46.2 4 -10 46.2 4 -10 46.2 .2 -10
4 16 -46.2 7.8 -10 46.2 7.8 -10 46.2 4 -10 -46.2 4 -10
4 16 -46.2 7.8 -10 -60 8 -10 60 8 -10 46.2 7.8 -10
4 16 60 8 -10 -60 8 -10 -40 8 10 40 8 10
3 16 0 9 2 -5.9 8 2 5.9 8 2
3 16 0 9 -2 5.9 8 -2 -5.9 8 -2
4 16 60 112 -10 40 112 10 -40 112 10 -60 112 -10
4 16 -46.2 112.2 -10 46.2 112.2 -10 60 112 -10 -60 112 -10
4 16 -46.2 112.2 -10 -46.2 116 -10 46.2 116 -10 46.2 112.2 -10
4 16 44.3416 116 2.83 -44.3416 116 2.83 -41.1716 116 6 41.1716 116 6
4 16 44.3416 116 2.83 56 116 -6 -56 116 -6 -44.3416 116 2.83
4 16 -46.2 119.8 -10 46.2 119.8 -10 46.2 116 -10 -46.2 116 -10
4 16 -46.2 119.8 -10 -60 120 -10 60 120 -10 46.2 119.8 -10
4 16 40 120 10 41.1716 120 6 -41.1716 120 6 -40 120 10
4 16 60 120 -10 -60 120 -10 -56 120 -6 56 120 -6
0 // Edges
2 24 5.9 8 2 -5.9 8 2
2 24 5.9 8 -2 -5.9 8 -2
2 24 60 0 -10 -60 0 -10
2 24 60 8 -10 -60 8 -10
2 24 60 112 -10 -60 112 -10
2 24 60 120 -10 -60 120 -10
0 // Studs
1 16 -50 0 40 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 -50 0 40 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 -50 4 40 3 0 0 0 -4 0 0 0 3 4-4cylc.dat
1 16 50 0 40 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 50 0 40 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 50 4 40 3 0 0 0 -4 0 0 0 3 4-4cylc.dat
1 16 -50 0 20 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 -50 0 20 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 -50 4 20 3 0 0 0 -4 0 0 0 3 4-4cylc.dat
1 16 50 0 20 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 50 0 20 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 50 4 20 3 0 0 0 -4 0 0 0 3 4-4cylc.dat
1 16 -50 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 -50 0 0 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 -50 4 0 3 0 0 0 -4 0 0 0 3 4-4cylc.dat
1 16 -30 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 -30 0 0 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 -30 4 0 3 0 0 0 -4 0 0 0 3 4-4cylc.dat
1 16 -10 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 -10 0 0 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 -10 4 0 3 0 0 0 -4 0 0 0 3 4-4cylc.dat
1 16 10 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 10 0 0 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 10 4 0 3 0 0 0 -4 0 0 0 3 4-4cylc.dat
1 16 30 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 30 0 0 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 30 4 0 3 0 0 0 -4 0 0 0 3 4-4cylc.dat
1 16 50 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 50 0 0 1 0 0 0 1 0 0 0 1 4-4ring3.dat
0 BFC INVERTNEXT
1 16 50 4 0 3 0 0 0 -4 0 0 0 3 4-4cylc.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2025-04-27 16:16:10

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2025-04-29 13:50:31

Did you see part 30613?
https://library.ldraw.org/parts/4702

According to BL this and 30613 are the same.

I found both of them in my collection and can confirm that both of them have the same cutouts etc in their wrought iron work.

Also on your part, this is straight
4 16 24.1702 8.1242 -22 20.3191 11.5033 -22 20.3191 11.5033 -18 24.1702 8.1242 -18

is in reality a curve, compare to 30613

There are only two differences in the two parts
- 30613 (old) has deep stud2 (as modeled in the LDraw part) with a Logo at the bottom
- 19063 has feep stud2 with a stop ring and a logo at the bottom

- the cutouts between the studs are the same in both versions

- there is a rather interesting artefact from molding (?) at the new piece, which has no obvious function and could be omitted IMHO
- top left and bottom right have a little trapezoid cutout, 7 LDU wide, 1 LDU deep located 6 LDU in from the respective side

So both parts can share a lot of common geometry

Gerald Lasser [GeraldLasser]

made the following comment.

2025-04-29 13:52:27

and the origin of both should be the same!

Massimo Maso [Sirio]

made the following comment.

2025-04-29 17:11:53

No, I had only checked that it was not a simple alias of an already existing piece. It seemed to me that he did not indicate it as an alias. Boh!
I hadn't seen that there was a part already done.

From what you wrote it is really a different piece.
Soon I will arrange the two parts as you wrote.

Massimo Maso [Sirio]

submitted a new version of the part.

2025-05-07 23:55:24

Fixed studs and holes in the arch.

Magnus Forsberg [MagFors]

posted a vote of Certify.

2025-05-08 20:59:09

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2025-05-08 21:09:21

Orion Pobursky [OrionP]

posted a vote of Admin Review.
