File Detail parts/31059.dat

Unofficial File parts/31059.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

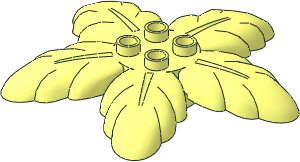

Duplo Palm Tree Leaves with 2 x 2 Studs on Top

File Header:

0 Duplo Palm Tree Leaves with  2 x  2 Studs on Top
0 Name: 31059.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Plant

Show contents

1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
1 16 0 4 0 -1 0 0 0 -10 0 0 0 1 stud8.dat

1 16 0 4 28 0 0 1 0 25 0 13 0 0 box3u8p.dat
1 16 0 4 -28 0 0 1 0 25 0 13 0 0 box3u8p.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\31059s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\31059s01.dat
5 24 0 37 154.6 0 37 158 6.495 36.83 156.977 -6.495 36.83 156.977
5 24 0 0 -44 0 48 -44 2.424315 24 -43.847674 -2.424315 24 -43.847674
5 24 0 48 44 0 4 44 5.5132 4 43.6524 -5.5132 4 43.6524

Status:

Certified (ACCN)

Current Votes:

User	Vote
OrionP	Admin Review
Holly-Wood	Certify
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-04-28 01:49:13

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2025-04-29 10:23:34

The use of the cylo creates edgeline on top where there should be one. Also some bleeding of the cylo walls might occur.

I would move the outside wall to the subfile, making things less of a hassle and close the top with quads

When the outdie walls are moved to the sub, the
1 16 0 48 0 4 0 0 0 -1 0 0 0 4 48\4-4ring10.dat

has to be change to a tang and filled with quad/tirangles here

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-04-29 15:20:42

Moved outside wall to subfile as suggested.
Implemented the ring with new primitive; negative adapter ring, which reduces the number of vertices from 48 to 16. A 48\tang would only reduce the number of vertices from 48 to 32.

Willy Tschager [Holly-Wood]

made the following comment.

2025-09-11 11:16:40

* This:

5 24 -147.4143 37 47.8981 -150.26748 37 48.82516 -147.2875 36.83 54.6862 -151.3016 36.83 42.3319

and the other four are too short

Willy Tschager [Holly-Wood]

made the following comment.

2025-09-11 11:18:30

* The five petals overlap:

2 273 -.0022 0 -43.9419 .002191024 0 -43.941879243

Peter Blomberg [WUIt]

posted a vote of Hold.

2025-09-15 19:01:16

Will fix

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-09-22 01:42:34

Added and moved vertexes, flipped triangles, and adjusted curvatures to remove concave quads.

Redid half leaf assembly via half instead of directly. This should have removed any assembly issues.

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-09-22 22:47:19

Refined surface penetration as requested. Had to increase rotational accuracy and therefore recreate cond lines in main.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-09-23 10:49:08

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-09-23 13:30:18

Orion Pobursky [OrionP]

posted a vote of Admin Review.
