File Detail parts/s/4215as01.dat

Unofficial File parts/s/4215as01.dat

File Header:

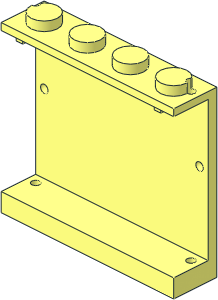

0 ~Panel  1 x  4 x  3 without Front Face
0 Name: s\4215as01.dat
0 Author: Bernd Broich [bbroich]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2002-08-18 [PTadmin] Official Update 2002-04
0 !HISTORY 2007-09-05 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [DeannaEarley] BFCd (2005-03-02)
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2025-04-29 [Blechtaler] made CCW, fixed t-junk

Show contents

0 // Bottom
1 16 0 67.5 0 1 0 0 0 -1 0 0 0 1 stug3-1x3.dat
0 BFC INVERTNEXT
1 16 0 69.75 3.75 0 0 36 2.25 0 0 0 3.25 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 69.75 0.25 0 0 36 2.25 0 0 0 -7.25 0 box3u2p.dat
1 16 -30 67.5 -6.5 1 0 0 0 4 0 0 0 0.5 box4-1.dat
1 16 -30 67.5 6.5 1 0 0 0 4 0 0 0 -0.5 box4-1.dat
1 16 -10 67.5 -6.5 1 0 0 0 3.5 0 0 0 0.5 box4-1.dat
1 16 -10 67.5 6.5 1 0 0 0 3.5 0 0 0 -0.5 box4-1.dat
1 16 10 67.5 -6.5 1 0 0 0 4 0 0 0 0.5 box4-1.dat
1 16 10 67.5 6.5 1 0 0 0 4 0 0 0 -0.5 box4-1.dat
1 16 30 67.5 -6.5 1 0 0 0 4 0 0 0 0.5 box4-1.dat
1 16 30 67.5 6.5 1 0 0 0 4 0 0 0 -0.5 box4-1.dat
1 16 0 68 -10 0 0 40 4 0 0 0 1 0 rect2p.dat
1 16 0 72 0 40 0 0 0 1 0 0 0 10 recte4.dat
1 16 0 64 -2 40 0 0 0 1 0 0 0 8 recte4.dat

1 16 -36 64 2 1.75 0 0 0 1 0 0 0 1.75 4-4edge.dat
1 16 -36 64 2 1.75 0 0 0 1 0 0 0 1.75 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -36 67.5 2 0 0 1.75 0 -3.5 0 1.75 0 0 4-4cyli.dat
1 16 -36 67.5 2 0 0 1.75 0 1 0 1.75 0 0 2-4edge.dat
1 16 -36 67.5 2 0 0 1.75 0 -1 0 1.75 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 -36 72 2 0 0 -1.75 0 -4.5 0 -1.75 0 0 2-4cyli.dat
1 16 -36 72 2 0 0 -1.75 0 1 0 -1.75 0 0 2-4edge.dat
1 16 -36 72 2 0 0 -1.75 0 -1 0 -1.75 0 0 2-4ndis.dat

1 16 36 64 2 1.75 0 0 0 1 0 0 0 1.75 4-4edge.dat
1 16 36 64 2 1.75 0 0 0 1 0 0 0 1.75 4-4ndis.dat
0 BFC INVERTNEXT
1 16 36 67.5 2 0 0 1.75 0 -3.5 0 1.75 0 0 4-4cyli.dat
1 16 36 67.5 2 0 0 -1.75 0 1 0 1.75 0 0 2-4edge.dat
1 16 36 67.5 2 0 0 -1.75 0 -1 0 1.75 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 36 72 2 0 0 1.75 0 -4.5 0 -1.75 0 0 2-4cyli.dat
1 16 36 72 2 0 0 1.75 0 1 0 -1.75 0 0 2-4edge.dat
1 16 36 72 2 0 0 1.75 0 -1 0 -1.75 0 0 2-4ndis.dat

3 16 34.25 64 .25 40 64 -10 37.75 64 .25
3 16 34.25 64 3.75 37.75 64 3.75 40 64 6
3 16 -37.75 64 .25 -40 64 -10 -34.25 64 .25
3 16 -40 64 6 -37.75 64 3.75 -34.25 64 3.75
4 16 -40 64 6 -40 64 -10 -37.75 64 .25 -37.75 64 3.75
4 16 37.75 64 3.75 37.75 64 .25 40 64 -10 40 64 6
4 16 -40 64 6 -34.25 64 3.75 34.25 64 3.75 40 64 6
4 16 34.25 64 3.75 -34.25 64 3.75 -34.25 64 .25 34.25 64 .25
4 16 34.25 64 .25 -34.25 64 .25 -40 64 -10 40 64 -10
4 16 -37.75 72 .25 -36 72 .25 -36 72 -7 -40 72 -10
4 16 -36 72 3.75 -37.75 72 3.75 -40 72 10 -36 72 7
4 16 -40 72 10 -37.75 72 3.75 -37.75 72 .25 -40 72 -10
4 16 -36 72 -7 36 72 -7 40 72 -10 -40 72 -10
4 16 36 72 .25 37.75 72 .25 40 72 -10 36 72 -7
4 16 37.75 72 3.75 36 72 3.75 36 72 7 40 72 10
4 16 37.75 72 3.75 40 72 10 40 72 -10 37.75 72 .25
4 16 36 72 7 -36 72 7 -40 72 10 40 72 10
4 16 -40 72 -10 -40 64 -10 -40 64 6 -40 72 10
4 16 40 72 10 40 64 6 40 64 -10 40 72 -10
4 16 -34.25 67.5 .25 34.25 67.5 .25 36 67.5 -7 -36 67.5 -7
4 16 -34.25 67.5 .25 -34.25 67.5 3.75 34.25 67.5 3.75 34.25 67.5 .25
4 16 -36 67.5 7 36 67.5 7 34.25 67.5 3.75 -34.25 67.5 3.75
3 16 36 67.5 .25 36 67.5 -7 34.25 67.5 .25
3 16 36 67.5 3.75 34.25 67.5 3.75 36 67.5 7
3 16 -34.25 67.5 3.75 -36 67.5 3.75 -36 67.5 7
3 16 -36 67.5 .25 -34.25 67.5 .25 -36 67.5 -7

0 // Middle
1 16 -36 30 6 1.75 0 0 0 0 1.75 0 1 0 4-4edge.dat
1 16 -36 30 6 1.75 0 0 0 0 1.75 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -36 30 6 1.75 0 0 0 0 1.75 0 1 0 4-8sphe.dat
1 16 36 30 6 1.75 0 0 0 0 1.75 0 1 0 4-4edge.dat
1 16 36 30 6 1.75 0 0 0 0 1.75 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 36 30 6 1.75 0 0 0 0 1.75 0 1 0 4-8sphe.dat

2 24 -40 0 10 -40 72 10
2 24 -40 3 6 -40 64 6
2 24 40 0 10 40 72 10
2 24 40 3 6 40 64 6
4 16 -40 3 6 -40 0 10 -40 72 10 -40 64 6
4 16 40 64 6 40 72 10 40 0 10 40 3 6
3 16 37.75 31.75 6 34.25 31.75 6 40 64 6
3 16 34.25 28.25 6 37.75 28.25 6 40 3 6
3 16 -34.25 31.75 6 -37.75 31.75 6 -40 64 6
3 16 -37.75 28.25 6 -34.25 28.25 6 -40 3 6
4 16 -37.75 31.75 6 -37.75 28.25 6 -40 3 6 -40 64 6
4 16 37.75 28.25 6 37.75 31.75 6 40 64 6 40 3 6
4 16 -40 64 6 40 64 6 34.25 31.75 6 -34.25 31.75 6
4 16 -34.25 31.75 6 34.25 31.75 6 34.25 28.25 6 -34.25 28.25 6
4 16 -40 3 6 -34.25 28.25 6 34.25 28.25 6 40 3 6

0 // Top
1 16 -10 0 0 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -32 3 -1.75 1.5 0 0 0 1.5 0 0 0 -7.75 box4-1.dat
1 16 10 0 0 1 0 0 0 1 0 0 0 1 stud.dat
1 16 32 3 -1.75 1.5 0 0 0 1.5 0 0 0 -7.75 box4-1.dat
1 16 0 1.5 -10 0 0 40 1.5 0 0 0 1 0 rect2p.dat
1 16 0 0 0 40 0 0 0 1 0 0 0 10 recte4.dat
1 16 0 3 -2 40 0 0 0 1 0 0 0 8 recte4.dat

4 16 -40 3 -10 -40 0 -10 -40 0 10 -40 3 6
4 16 40 3 6 40 0 10 40 0 -10 40 3 -10
3 16 37.75 3 3.75 34.25 3 3.75 40 3 6
3 16 34.25 3 .25 37.75 3 .25 40 3 -10
3 16 -40 3 -10 -37.75 3 .25 -34.25 3 .25
3 16 -34.25 3 3.75 -37.75 3 3.75 -40 3 6
4 16 40 3 -10 37.75 3 .25 37.75 3 3.75 40 3 6
4 16 -40 3 6 -37.75 3 3.75 -37.75 3 .25 -40 3 -10
4 16 40 3 6 34.25 3 3.75 -34.25 3 3.75 -40 3 6
4 16 -34.25 3 3.75 34.25 3 3.75 34.25 3 .25 -34.25 3 .25
4 16 -34.25 3 .25 34.25 3 .25 40 3 -10 -40 3 -10
3 16 37.75 0 .25 36 0 .25 36 0 0
4 16 40 0 -10 37.75 0 .25 36 0 0 36 0 -6
4 16 40 0 10 37.75 0 2 37.75 0 .25 40 0 -10
3 16 37.75 0 2 40 0 10 37.75 0 3.75
4 16 34.2426 0 6 36 0 3.75 37.75 0 3.75 40 0 10
3 16 34.2426 0 6 40 0 10 30 0 6
3 16 30 0 6 40 0 10 24 0 6
4 16 -40 0 10 -24 0 6 24 0 6 40 0 10
3 16 -24 0 6 -40 0 10 -30 0 6
3 16 -30 0 6 -40 0 10 -34.2426 0 6
4 16 -34.2426 0 6 -40 0 10 -37.75 0 3.75 -36 0 3.75
3 16 -37.75 0 3.75 -40 0 10 -37.75 0 2
4 16 -37.75 0 .25 -37.75 0 2 -40 0 10 -40 0 -10
4 16 -36 0 0 -37.75 0 .25 -40 0 -10 -36 0 -6
3 16 -37.75 0 .25 -36 0 0 -36 0 .25
3 16 -36 0 -6 -40 0 -10 -30 0 -6
3 16 -30 0 -6 -40 0 -10 -24 0 -6
4 16 40 0 -10 24 0 -6 -24 0 -6 -40 0 -10
3 16 24 0 -6 40 0 -10 30 0 -6
3 16 30 0 -6 40 0 -10 36 0 -6
4 16 -24 0 0 -24 0 -6 24 0 -6 24 0 0
4 16 -24 0 0 24 0 0 24 0 6 -24 0 6

0 // Stud right
1 16 30 -4 0 0 0 -6 0 4 0 6 0 0 3-4cylc.dat
1 16 30 -4 0 0 0 6 0 4 0 6 0 0 1-8cylo.dat
1 16 30 -4 0 0 0 6 0 1 0 6 0 0 1-8chrd.dat
1 16 30 0 0 0 0 -6 0 1 0 6 0 0 3-4ndis.dat
1 16 30 0 0 0 0 6 0 1 0 6 0 0 1-8tndis.dat
1 16 34.5026 -2 3.74 0 -1 .26 2 0 0 0 0 -.5026 rect3.dat
1 16 36 -2 .125 0 -1 0 2 0 0 0 0 .125 rect3.dat
0 BFC INVERTNEXT
1 16 36 0 2 0 0 -1.75 0 -4 0 -1.75 0 0 3-8cyli.dat
1 16 36 -4 2 0 0 -1.75 0 1 0 -1.75 0 0 3-8ndis.dat
1 16 36 -4 2 0 0 -1.75 0 1 0 -1.75 0 0 3-8edge.dat
1 16 36 0 2 0 0 1.75 0 1 0 -1.75 0 0 5-8edge.dat
1 16 36 0 2 0 0 1.75 0 1 0 1.75 0 0 2-4ndis.dat
1 16 36 0 2 0 0 -1.75 0 1 0 1.75 0 0 1-8tndis.dat
0 BFC INVERTNEXT
1 16 36 0 2 0 0 1.75 0 3 0 1.75 0 0 4-4cyli.dat
1 16 36 3 2 0 0 1.75 0 1 0 1.75 0 0 4-4edge.dat
1 16 36 3 2 0 0 1.75 0 -1 0 1.75 0 0 4-4ndis.dat
4 16 36 -4 0 36 -4 .25 34.25 -4 .25 30 -4 0
4 16 30 -4 0 34.25 -4 .25 34.25 -4 2 30 -4 6
4 16 30 -4 6 34.25 -4 2 34.25 -4 3.75 34.2426 -4 4.2426
3 16 34.25 -4 3.75 34.7626 -4 3.2374 34.2426 -4 4.2426
3 16 34.7626 0 3.2374 34.7626 0 3.75 34.2426 0 4.2426
4 16 34.2426 0 4.2426 34.7626 0 3.75 36 0 3.75 34.2426 0 6
5 24 34.2426 -4 4.2426 34.2426 0 4.2426 32.2962 0 5.5434 34.7626 0 3.2374

0 // Stud left
1 16 -30 -4 0 0 0 6 0 4 0 6 0 0 3-4cylc.dat
1 16 -30 -4 0 0 0 -6 0 4 0 6 0 0 1-8cylo.dat
1 16 -30 -4 0 0 0 -6 0 1 0 6 0 0 1-8chrd.dat
1 16 -30 0 0 0 0 6 0 1 0 6 0 0 3-4ndis.dat
1 16 -30 0 0 0 0 -6 0 1 0 6 0 0 1-8tndis.dat
1 16 -34.5026 -2 3.74 0 1 -.26 2 0 0 0 0 -.5026 rect3.dat
1 16 -36 -2 .125 0 1 0 2 0 0 0 0 .125 rect3.dat
0 BFC INVERTNEXT
1 16 -36 0 2 0 0 1.75 0 -4 0 -1.75 0 0 3-8cyli.dat
1 16 -36 -4 2 0 0 1.75 0 1 0 -1.75 0 0 3-8ndis.dat
1 16 -36 -4 2 0 0 1.75 0 1 0 -1.75 0 0 3-8edge.dat
1 16 -36 0 2 0 0 -1.75 0 1 0 -1.75 0 0 5-8edge.dat
1 16 -36 0 2 0 0 -1.75 0 1 0 1.75 0 0 2-4ndis.dat
1 16 -36 0 2 0 0 1.75 0 1 0 1.75 0 0 1-8tndis.dat
0 BFC INVERTNEXT
1 16 -36 0 2 0 0 1.75 0 3 0 1.75 0 0 4-4cyli.dat
1 16 -36 3 2 0 0 1.75 0 1 0 1.75 0 0 4-4edge.dat
1 16 -36 3 2 0 0 1.75 0 -1 0 1.75 0 0 4-4ndis.dat
4 16 -34.25 -4 .25 -36 -4 .25 -36 -4 0 -30 -4 0
4 16 -34.25 -4 2 -34.25 -4 .25 -30 -4 0 -30 -4 6
4 16 -34.25 -4 3.75 -34.25 -4 2 -30 -4 6 -34.2426 -4 4.2426
3 16 -34.7626 -4 3.2374 -34.25 -4 3.75 -34.2426 -4 4.2426
3 16 -34.7626 0 3.75 -34.7626 0 3.2374 -34.2426 0 4.2426
4 16 -36 0 3.75 -34.7626 0 3.75 -34.2426 0 4.2426 -34.2426 0 6
5 24 -34.2426 -4 4.2426 -34.2426 0 4.2426 -32.2962 0 5.5434 -34.7626 0 3.2374

Status:

Awaiting Admin Review (CCF)

Current Votes:

User	Vote
MagFors	Certify
WUIt	Certify

Official parents and subparts

Part Events:

Archived Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-04-29 15:03:50

something broke this part...
also made CCW and fixed t-junk

Magnus Forsberg [MagFors]

posted a vote of Hold.

2025-04-29 15:53:36

Could you please solve the surface bleeding in the 2 top holes?

Rene Rechthaler [Blechtaler]

made the following comment.

2025-04-29 15:59:21

you mean from the inner part of the 4-4ndis? that would mean to cut out the faces under the stud (is that ok?)
should it use bump prim instead the half spheres?

Rene Rechthaler [Blechtaler]

made the following comment.

2025-04-29 16:01:27

or maybe its just more t-junk who should get reduced...

Magnus Forsberg [MagFors]

made the following comment.

2025-04-29 16:12:43

I'd rather have T-junc, than bleeding.

Orion Pobursky [OrionP]

made the following comment.

2025-04-29 16:42:17

Why can't we use one of the studh prims here?

Rene Rechthaler [Blechtaler]

made the following comment.

2025-04-29 16:45:19

looks like these have another geometry...

Magnus Forsberg [MagFors]

made the following comment.

2025-04-29 16:55:09

I think I've said it before, but studh is a uniqe design for a few parts.
It can't be used on many of the other parts, with a tiny hole through the stud, since the hole is in many different positions.

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2025-04-29 17:00:48

removed inside faces to remove bleeding
fixed more t-junk

Orion Pobursky [OrionP]

made the following comment.

2025-04-29 17:04:13

"I think I've said it before, but studh is a uniqe design for a few parts."

Fair enough. Was curious.

Magnus Forsberg [MagFors]

posted a vote of Certify.

2025-07-23 16:36:51

Peter Blomberg [WUIt]

posted a vote of Certify.

2025-11-21 07:35:11
