Unofficial File parts/42234.dat
Part Attributes:
File Header:

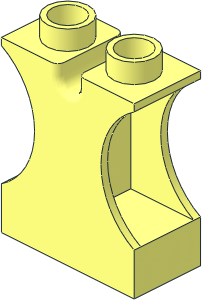

0 Duplo Brick 1 x 2 x 2 with Scooped Sides without Bottom Stud
0 Name: 42234.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Brick
0 !KEYWORDS Brickowl 629395
0 !HISTORY 2013-02-23 [Philo] Rebuilt "waist" hi-res.
0 !HISTORY 2013-07-21 [PTadmin] Official Update 2013-01
0 !HISTORY 2025-04-30 [WUIt] CCW'd BFC, fixed flat subfile scaling
0 !HISTORY 2026-07-11 [MagFors] subfiled for part variant
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\42234s01.dat
1 16 11 74 -13 1.5 0 0 0 17 0 0 0 3 box4-1.dat
1 16 -11 74 -13 1.5 0 0 0 17 0 0 0 3 box4-1.dat
1 16 11 74 13 1.5 0 0 0 17 0 0 0 -3 box4-1.dat
1 16 -11 74 13 1.5 0 0 0 17 0 0 0 -3 box4-1.dat
Status:
Needs 2 More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
Peter Blomberg [WUIt]
initially submitted the part.
2025-04-30 07:51:13
Made BFC compliant
Rene Rechthaler [Blechtaler]
made the following comment.
2025-04-30 11:03:28
could get changed from a rotated 1-3 to two unrotated 1-16 (maybe even subfiled to save some more, then use that 4 times)
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-04-30 16:26:58
Corrected history line as suggested.
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-04-30 18:42:00
Changed cyli+edges to cylo.
The design is very skillfully made with astonishing accuracy considering the three-four decimals used.
An equivalent design with two unrotated cylos requires five decimals to reach the same result. Therefore, I decided to leave it as is.
The design is very skillfully made with astonishing accuracy considering the three-four decimals used.
An equivalent design with two unrotated cylos requires five decimals to reach the same result. Therefore, I decided to leave it as is.
Rene Rechthaler [Blechtaler]
made the following comment.
2026-07-10 20:14:34

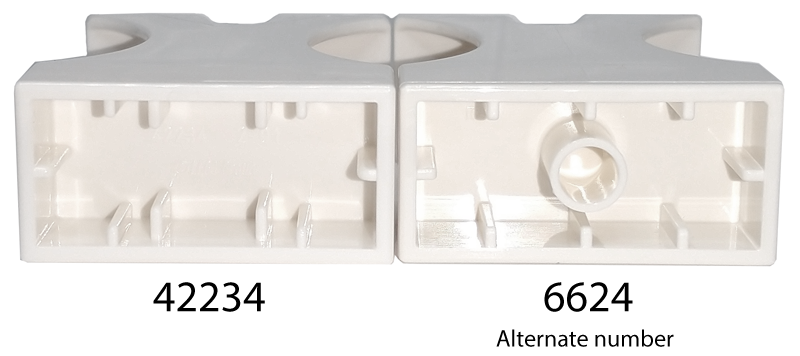

BL says there are 2 similar parts (not just an alias) with different bottom designs -> subpart?
https://img.bricklink.com/ItemImage/EXTN/82897.png
https://img.bricklink.com/ItemImage/EXTN/82897.png
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-07-11 17:15:54
Are we sure the hole is sized correctly?
See https://library.ldraw.org/parts/49915
See https://library.ldraw.org/parts/49915
Magnus Forsberg [MagFors]
submitted a new version of the part (all votes reset).
2026-07-11 18:11:17
Creative Commons Attribution License information
This part is copyright ©
Michael Heidemann
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Philippe Hurbain, Peter Blomberg, Magnus Forsberg
