Unofficial File parts/3808.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

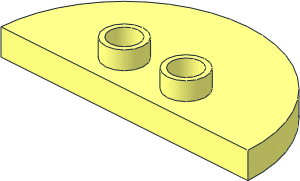

0 Duplo Plate 2 x 4 x 0.333 Half Circle with 2 Studs
0 Name: 3808.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Plate
0 !HISTORY 2014-12-23 [PTadmin] Official Update 2014-02
0 !HISTORY 2020-05-25 [PTadmin] Update description
0 !HISTORY 2020-06-28 [PTadmin] Official Update 2020-01
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2025-04-30 [WUIt] CCW'd BFC, used more prims, removed microgapsShow file code:
0 // top
1 16 20 0 0 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 -20 0 0 1 0 0 0 2.75 0 0 0 1 stud7.dat
1 16 0 0 -20 80 0 0 0 1 0 0 0 80 48\2-4chrd.dat
0 // sides
1 16 0 0 -20 80 0 0 0 16 0 0 0 80 48\2-4cylo.dat
1 16 0 8 -20 -80 0 0 0 0 8 0 1 0 rect.dat
0 // bottom
1 16 0 4 20 1 0 0 0 -1.75 0 0 0 1 stug8-1x3.dat
1 16 0 16 -20 4 0 0 0 -1 0 0 0 4 48\2-4ring19.dat
4 16 -75.7364 16 -16 75.7364 16 -16 76 16 -20 -76 16 -20
2 24 75.7364 4 -16 75.3464 4 -10.082
2 24 75.7364 16 -16 75.3464 16 -10.082
4 16 75.3464 4 -10.082 75.3464 16 -10.082 75.7364 16 -16 75.7364 4 -16
2 24 -75.7364 4 -16 -75.3464 4 -10.082
2 24 -75.7364 16 -16 -75.3464 16 -10.082
4 16 -75.3464 16 -10.082 -75.3464 4 -10.082 -75.7364 4 -16 -75.7364 16 -16
1 16 0 10 -16 75.7364 0 0 0 0 6 0 -1 0 rect.dat
0 BFC INVERTNEXT
1 16 0 4 -20 0 0 76 0 12 0 76 0 0 48\11-48cylo.dat
0 BFC INVERTNEXT
1 16 0 4 -20 0 0 -76 0 12 0 76 0 0 48\11-48cylo.dat
1 16 0 4 -20 0 0 76 0 -1 0 76 0 0 48\11-48chrd.dat
1 16 0 4 -20 0 0 -76 0 -1 0 76 0 0 48\11-48chrd.dat
4 16 75.3464 4 -10.082 75.7364 4 -16 -75.7364 4 -16 -75.3464 4 -10.082
3 16 -75.3464 4 -10.082 0 4 56 75.3464 4 -10.082
1 16 60 9.5 -16 1.5 0 0 0 0 5.5 0 4 0 box4-1.dat
1 16 20 9.5 -16 1.5 0 0 0 0 5.5 0 4 0 box4-1.dat
1 16 -20 9.5 -16 1.5 0 0 0 0 5.5 0 4 0 box4-1.dat
1 16 -60 9.5 -16 1.5 0 0 0 0 5.5 0 4 0 box4-1.dat
1 16 20 9.5 56 1.5 0 0 0 0 5.5 0 -4 0 box4-1.dat
1 16 76 9.5 0 0 -4 0 0 0 5.5 -1.5 0 0 box4-1.dat
2 24 73.4084 15 -.3312 72.7877 15 1.5
2 24 73.6407 15 -1.5 73.4084 15 -.3312
2 24 72.7877 4 1.5 72.7877 15 1.5
2 24 73.6407 15 -1.5 73.6407 4 -1.5
2 24 18.5 15 53.6407 19.6688 15 53.4084
2 24 19.6688 15 53.4084 21.5 15 52.7877
2 24 18.5 15 53.6407 18.5 4 53.6407
2 24 21.5 15 52.7877 21.5 4 52.7877
1 16 -20 9.5 56 -1.5 0 0 0 0 5.5 0 -4 0 box4-1.dat
1 16 -76 9.5 0 0 4 0 0 0 5.5 -1.5 0 0 box4-1.dat
2 24 -72.7877 15 1.5 -73.4084 15 -.3312
2 24 -73.4084 15 -.3312 -73.6407 15 -1.5
2 24 -72.7877 15 1.5 -72.7877 4 1.5
2 24 -73.6407 4 -1.5 -73.6407 15 -1.5
2 24 -19.6688 15 53.4084 -18.5 15 53.6407
2 24 -21.5 15 52.7877 -19.6688 15 53.4084
2 24 -18.5 4 53.6407 -18.5 15 53.6407
2 24 -21.5 4 52.7877 -21.5 15 52.7877Status
Needs 2 More Votes (F)
Current Votes:
No recorded votesThis part has the following warnings
- Number in description may need a leading space
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Peter Blomberg [WUIt]
initially submitted the part.
2025-04-30 07:51:13
Made BFC compliant
Rene Rechthaler [Blechtaler]
made the following comment.
2025-04-30 10:59:55
should the inside get changed to unrotated 11-48 prims? instead of the rotated 11-24
Magnus Forsberg [MagFors]
made the following comment.
2025-04-30 15:29:20
A minor detail, don't know of the imprortance. This fils was already "BFC compliant", but you change it from CW to CCW.
Maybe the history should be corrected?
Maybe the history should be corrected?
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-04-30 16:21:28
Increased the use of primitives as suggested.
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-04-30 16:26:58
Corrected history line as suggested.
Gerald Lasser [GeraldLasser]
posted a vote of Hold
2025-10-28 23:08:52
There are four fillets missing along the semi circle, those allow for more connection variants
1 9 20 9.5 56 1.5 0 0 0 0 5.5 0 -4 0 box4-1.dat
1 9 -20 9.5 56 1.5 0 0 0 0 5.5 0 -4 0 box4-1.dat
1 9 -76 3.5 0 0 4 0 0 0 5.5 -1.5 0 0 box4-1.dat
1 9 76 3.5 0 0 -4 0 0 0 5.5 -1.5 0 0 box4-1.dat
1 9 20 9.5 56 1.5 0 0 0 0 5.5 0 -4 0 box4-1.dat
1 9 -20 9.5 56 1.5 0 0 0 0 5.5 0 -4 0 box4-1.dat
1 9 -76 3.5 0 0 4 0 0 0 5.5 -1.5 0 0 box4-1.dat
1 9 76 3.5 0 0 -4 0 0 0 5.5 -1.5 0 0 box4-1.dat
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-11-13 07:03:00
Added the four missing fillets as suggested.
