File Detail parts/s/6309s03.dat

Unofficial File parts/s/6309s03.dat

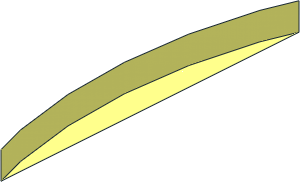

~Duplo Tile 2 x 2 - Cylo with chord in one end

File Header:

0 ~Duplo Tile  2 x  2 - Cylo with chord in one end
0 Name: s\6309s03.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // inside
1 16 34 0 0 -36 0 0 0 2 0 0 0 36 48\1-24cylo.dat
1 16 34 0 0 -36 0 0 0 2 0 0 0 -36 48\1-24cylo.dat
1 16 34 2 0 -36 0 0 0 -1 0 0 0 36 48\1-24chrd.dat
1 16 34 2 0 -36 0 0 0 -1 0 0 0 -36 48\1-24chrd.dat
2 24 0 0 11.595 0 2 11.595
2 24 0 2 -11.595 0 0 -11.595
2 24 0 2 -11.595 0 2 11.595
2 24 0 2 11.595 -.7724 2 9.3168
2 24 -.7724 2 -9.3168 0 2 -11.595
2 24 0 0 11.595 -.7724 0 9.3168
2 24 -.7724 0 -9.3168 0 0 -11.595
4 16 0 2 11.595 -.7724 2 9.3168 -.7724 0 9.3168 0 0 11.595
4 16 -.7724 2 -9.3168 0 2 -11.595 0 0 -11.595 -.7724 0 -9.3168
3 16 -2 2 0 -.7724 2 9.3168 -.7724 2 -9.3168
4 16 -.7724 2 -9.3168 -.7724 2 9.3168 0 2 11.595 0 2 -11.595
5 24 -.7724 2 9.3168 -.7724 0 9.3168 0 0 11.595 -1.69 0 4.698
5 24 -.7724 2 -9.3168 -.7724 0 -9.3168 -1.69 0 -4.698 0 0 -11.595

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-04-30 10:21:25

BFC'd 6309. BFC'd and subfiled 6309s01.
Subfiled and corrected inside shape of 2756s01.
