Official File parts/s/4514s01.dat
File Header:

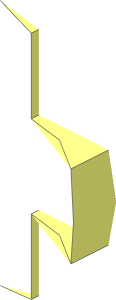

0 ~Technic Steering Link 6L Perpendicular - Axle to Ring Adapter
0 Name: s\4514s01.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Subpart UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-04-01 [GeraldLasser] original author of code
0 !HISTORY 2025-04-30 [notmaster] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06
Show contents
3 16 2 5.6023 10 2 5.6023 9.602 0 6 10
1 16 2 3.80115 9.801 0 -1 0 -1.80115 0 0 0 0 -.199 rect3.dat
4 16 2 2 9.602 2 2 10 5.6023 2 10 5.6023 2 8.0525
4 16 5.6023 -2 8.0525 6 0 7.7868 6 0 10 5.6023 -2 10
4 16 5.6023 2 10 6 0 10 6 0 7.7868 5.6023 2 8.0525
4 16 5.6023 -2 8.0525 5.6023 -2 10 2 -2 10 2 -2 9.602
1 16 2 -3.80115 9.801 0 -1 0 -1.80115 0 0 0 0 -.199 rect3.dat
3 16 2 -5.6023 9.602 2 -5.6023 10 0 -6 10
2 24 5.6023 -2 8.0525 3.827 -2 9.239
2 24 2 -2 9.602 3.827 -2 9.239
2 24 2 -5.6023 9.602 0 -6 10
2 24 5.6023 2 8.0525 6 0 7.7868
2 24 5.6023 -2 8.0525 6 0 7.7868
2 24 2 5.6023 9.602 0 6 10
2 24 3.827 2 9.239 5.6023 2 8.0525
2 24 2 2 9.602 3.827 2 9.239
2 24 5.6023 2 10 5.6023 2 8.0525
2 24 5.6023 -2 10 5.6023 -2 8.0525
5 24 6 0 10 6 0 7.7868 5.6023 2 10 5.6023 -2 10
Status:
Official
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 14: 1 16 2 3.80115 9.801 0 -1 0 -1.80115 0 0 0 0 -.199 rect3.datLine 19: 1 16 2 -3.80115 9.801 0 -1 0 -1.80115 0 0 0 0 -.199 rect3.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Jeff Jones
Licensed under CC BY 4.0
