File Detail parts/5059.dat

Unofficial File parts/5059.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

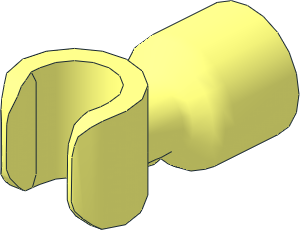

0 Minifig Hand Prosthetic
0 Name: 5059.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 !HELP 1 12 0 0 19.1 0 0 4 -4 0 0 0 -7.2 0 4-4cyli.dat
0 !HELP 1 12 0 0 11.9 0 0 4 -4 0 0 0 -1 0 4-8sphe.dat

0 BFC CERTIFY CCW

0 !HISTORY 2025-01-08 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-05-01 [MagFors] File preparation for LDraw Parts Tracker

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5059s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\5059s01.dat
0 BFC INVERTNEXT
1 16 0 -6.6 0 4 0 0 0 11 0 0 0 4 2-4cylo.dat
5 24 0 -3.134 11.063 0 -4 11.663 .968 -2.98 11.063 -.968 -2.98 11.063
5 24 0 -2.5 10.899 0 -3.134 11.063 .968 -2.98 11.063 -.773 -2.378 10.899
5 24 0 -3.781 9.964 0 -3.29 9.285 1.138 -3.596 9.964 -1.138 -3.596 9.964
5 24 0 -5.256 10.835 0 -3.781 9.964 1.138 -3.596 9.964 -1.138 -3.596 9.964
5 24 0 -5.954 20 0 -5.954 12.649 1.84 -5.662 12.649 -1.84 -5.662 20
5 24 0 -5.954 12.649 0 -5.819 11.656 1.798 -5.535 11.656 -1.798 -5.535 11.656
5 24 0 -5.819 11.656 0 -5.256 10.835 1.798 -5.535 11.656 -1.798 -5.535 11.656
5 24 0 -3.29 9.285 0 -3.303 5.994 1.041 -3.129 9.285 -1.041 -3.129 9.285
5 24 0 3.684 9.339 0 3.753 9.741 .693 3.622 9.136 -.693 3.622 9.136
5 24 0 3.897 5.794 0 3.772 6.619 .679 3.693 6.808 -.679 3.693 6.808
5 24 0 3.921 9.955 0 5.261 10.833 1.624 4.999 10.835 -1.624 4.999 10.835
5 24 0 3.753 9.741 0 3.921 9.955 .966 3.465 9.557 -.966 3.465 9.557
5 24 0 4 11.663 0 3.134 11.063 .968 2.98 11.063 -.968 2.98 11.063
5 24 0 3.134 11.063 0 2.5 10.899 .773 2.378 10.899 -.773 2.378 10.899
5 24 0 5.261 10.833 0 5.563 11.257 .291 5.638 11.393 -.291 5.638 11.393
5 24 0 -4 19.068 0 -5.063 20 .887 -4.963 20 -.887 -4.963 20
5 24 0 5.563 11.257 0 5.563 11.843 .291 5.638 11.393 -.291 5.638 11.393
5 24 0 5.563 11.843 0 5.563 20 .535 5.869 20 -.535 5.869 12.649
5 24 0 5.063 20 0 4 19.068 .887 4.963 20 -.887 4.963 20
5 24 0 3.772 6.619 0 3.715 6.863 .679 3.693 6.808 -.679 3.693 6.808
5 24 0 3.715 9.115 0 3.684 9.339 .564 3.715 8.964 -.564 3.715 8.964
5 24 0 4.046 5.475 0 3.897 5.794 .801 3.792 5.766 -.801 3.792 5.766
5 24 0 4.242 5.189 0 4.046 5.475 1.008 4.26 5.07 -1.008 4.26 5.07
5 24 0 4.4 4 0 4.242 5.189 1.008 4.26 5.07 -1.008 4.26 5.07
5 24 0 -6.6 6 0 -3.303 5.994 -.942 -3.159 5.887 .966 -3.141 5.914

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/5059s01.dat (Errors Found)
parts/s/5059s02.dat (Needs More Votes)

This part has the following warnings

Ensure correct Minifig category

Current Votes:

None

Official parents and subparts

Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2025-05-02 11:46:17

Rene Rechthaler [Blechtaler]

made the following comment.

2025-05-02 11:56:46

does this need !Help for the connections?
arm bar+sphere is there, but hand could be deducted from here:
1 16 0 -6.6 -20 4 0 0 0 11 0 0 0 4 2-4cylo.dat
should this use prims for the outside?
or get subfiled? (half/quarter)

Jeff Jones [notmaster]

made the following comment.

2025-05-02 12:05:25

yes imho use more prims and get quarter subfiled

Magnus Forsberg [MagFors]

made the following comment.

2025-05-02 12:16:36

This part fits both Minifigs and Mini dolls.

Bar to Bar Connector Perpendicular.

Philippe Hurbain [Philo]

made the following comment.

2025-05-03 12:24:02

Origin is fine for minifig use, but as a bar to bar connector, I'd prefer to see the origin placed at the intersection of socket and hand directions
