Official File parts/7218.dat
Part Attributes:
External Sites:
View on Rebrickable
File Header:

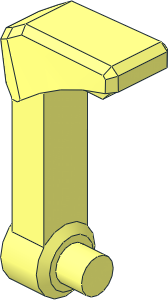

0 Minifig Helmet Rangefinder Short, Square Shaft for SW Mandalorian Helmet
0 Name: 7218.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP PLACE X=-16 Y=1.5 IN HELMET 87610
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS Set 75409, Star Wars
0 !HISTORY 2025-05-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-05-03 [notmaster] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7218s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\7218s01.dat
1 16 -5.25 0 0 0 1 0 -.37 0 0 0 0 .37 4-4ring9.dat
0 BFC INVERTNEXT
1 16 -5.25 0 0 0 .75 0 -.8325 0 0 0 0 .8325 4-4con3.dat
1 16 -5.25 0 0 0 -1 0 -3.33 0 0 0 0 3.33 4-4edge.dat
1 16 -4.5 0 0 0 1 0 -2.4975 0 0 0 0 2.4975 4-4disc.dat
1 16 -4.5 0 0 0 1 0 -2.4975 0 0 0 0 2.4975 4-4edge.dat
1 16 -.75 0 0 0 .75 0 .925 0 0 0 0 .925 4-4con3.dat
1 16 0 0 0 0 -1 0 -2.775 0 0 0 0 2.775 4-4disc.dat
1 16 0 0 0 0 -1 0 -2.775 0 0 0 0 2.775 4-4edge.dat
1 16 3.25 0 0 0 -3.25 0 -2 0 0 0 0 -2 4-4cylc.dat
1 16 -5.25 0 0 0 4.5 0 3.7 0 0 0 0 -3.7 4-4cylo.dat
2 24 6.354 -20.452 2.425 6.354 -20.452 -2.425
2 24 1.168 -19.779 1.562 1.168 -19.779 -1.562
2 24 -.75 -18.622 -2.75 -.75 -18.622 2.75
2 24 8.957 -22.517 3.065 8.957 -22.517 -3.065
2 24 8.29 -22.389 -2.766 8.29 -22.389 2.766
2 24 -4.75 -17.357 -2.75 -4.75 -17.357 2.75
2 24 -2.875 -24.638 2.888 -2.875 -24.638 -2.888
2 24 8.161 -24.859 -3.112 8.161 -24.859 3.112
2 24 5.33 -19.779 1.562 5.33 -19.779 -1.562
2 24 8.957 -24.165 3.091 8.957 -24.165 -3.091
2 24 -6.186 -22.559 -2.065 -6.186 -22.559 2.065
2 24 -5.398 -17.567 2.875 -5.398 -17.567 -2.875
2 24 5.673 -20.452 1.877 5.673 -20.452 -1.877
5 24 -.115 -19.03 -3.904 -.115 -19.03 3.904 1.168 -19.779 1.562 -.75 -18.622 -2.75
4 16 5.673 -20.452 1.877 6.354 -20.452 2.425 6.354 -20.452 -2.425 5.673 -20.452 -1.877
4 16 -.115 -19.03 -3.904 -.115 -19.03 3.904 1.168 -19.779 1.562 1.168 -19.779 -1.562
4 16 -.115 -19.03 -3.904 -.75 -18.622 -2.75 -.75 -18.622 2.75 -.115 -19.03 3.904
4 16 8.29 -22.389 -2.766 8.29 -22.389 2.766 8.957 -22.517 3.065 8.957 -22.517 -3.065
4 16 8.161 -24.859 3.112 -2.875 -24.638 2.888 -2.875 -24.638 -2.888 8.161 -24.859 -3.112
4 16 5.33 -19.779 1.562 5.33 -19.779 -1.562 1.168 -19.779 -1.562 1.168 -19.779 1.562
4 16 5.673 -20.452 1.877 5.673 -20.452 -1.877 5.33 -19.779 -1.562 5.33 -19.779 1.562
4 16 8.957 -24.165 3.091 8.957 -24.165 -3.091 8.957 -22.517 -3.065 8.957 -22.517 3.065
4 16 8.29 -22.389 2.766 8.29 -22.389 -2.766 6.354 -20.452 -2.425 6.354 -20.452 2.425
4 16 8.161 -24.859 3.112 8.161 -24.859 -3.112 8.957 -24.165 -3.091 8.957 -24.165 3.091
4 16 -6.06 -21.763 -2.875 -6.186 -22.559 -2.065 -6.186 -22.559 2.065 -6.06 -21.763 2.875
4 16 -6.06 -21.763 2.875 -5.398 -17.567 2.875 -5.398 -17.567 -2.875 -6.06 -21.763 -2.875
4 16 -5.398 -17.567 2.875 -4.75 -17.357 2.75 -4.75 -17.357 -2.75 -5.398 -17.567 -2.875
4 16 -2.875 -24.638 2.888 -4.547 -23.588 2.856 -4.547 -23.588 -2.856 -2.875 -24.638 -2.888
4 16 -6.186 -22.559 -2.065 -4.547 -23.588 -2.856 -4.547 -23.588 2.856 -6.186 -22.559 2.065
3 16 -4.75 -17.357 -2.75 -4.75 -17.357 2.75 -4.75 -3.7 0
3 16 -.75 -3.7 0 -.75 -18.622 2.75 -.75 -18.622 -2.75
