Unofficial File parts/s/14094s05.dat
File Header:

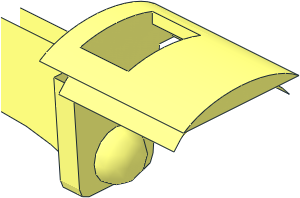

0 ~Duplo Tipper Bucket Bed Hinge Half
0 Name: s\14094s05.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // common
2 24 18 -19 -12 18 -19 12
2 24 48 -19 -12 48 -19 12
2 24 22 5 5.65 22 5 -5.65
3 16 18 -19.8568 -10.6065 18 -22.2 0 18 -19.8568 10.6065
4 16 18 -19 -12 18 -19.8568 -10.6065 18 -19.8568 10.6065 18 -19 12
3 16 48 -22.2 0 48 -19.8568 -10.6065 48 -19.8568 10.6065
4 16 48 -19.8568 10.6065 48 -19.8568 -10.6065 48 -19 -12 48 -19 12
0 BFC INVERTNEXT
1 16 0 41 2 0 0 40 -40 0 0 0 -4 0 48\1-16cylo.dat
4 16 18 5 -2 15.308 4.044 -2 15.308 4.044 2 18 5 2
5 24 18 5 2 18 5 -2 15.308 4.044 -2 22 5 -5.65
4 16 18 5 -2 18 5 2 22 5 5.65 22 5 -5.65
4 16 22 -15 -9 22 3 -7.65 22 3 7.65 22 -15 9
4 16 22 5 -5.65 22 5 5.65 22 3 7.65 22 3 -7.65
1 16 22 0 0 0 4.6 0 4.6 0 0 0 0 -4.6 4-8sphe.dat
1 16 22 0 0 0 1 0 4.6 0 0 0 0 -4.6 4-4edge.dat
4 16 22 -17.901 -9.132 22 -15 -9 22 -15 9 22 -17.901 9.132
4 16 22 -17.901 9.132 22 -19 7.5 22 -19 -7.5 22 -17.901 -9.132
4 16 22 -19 -7.5 22 -19 7.5 22 -21.128 7.5 22 -21.128 -7.5
3 16 22 -21.128 -7.5 22 -21.128 7.5 22 -22.2 0
0 // quarters
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\14094s06.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\14094s06.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2025-05-04 19:14:14
2025-05-14 09:11:07
Used more/different boxes as suggested.
2025-05-19 22:18:17
Corrected origin to centre of hinge.
2025-06-08 09:04:01
2025-06-08 10:42:34
Rotated 180° as suggested. Fixed HELP. Rotated subfiles to match.
