Unofficial File parts/7217.dat
Part Attributes:
File Header:

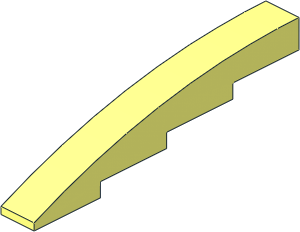

0 Slope Brick Curved 1 x 8 x 1.667
0 Name: 7217.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-05-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-05-01 [GeraldLasser] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7217s01.dat
4 16 -10 .1979 -3.199 -10 1.1675 -19.468 10 1.1675 -19.468 10 .1979 -3.199
4 16 10 1.1675 -19.468 -10 1.1675 -19.468 -10 2.766 -36.1 10 2.766 -36.1
4 16 -10 5.7196 -55.693 10 5.7196 -55.693 10 2.766 -36.1 -10 2.766 -36.1
4 16 10 5.7196 -55.693 -10 5.7196 -55.693 -10 9.7257 -75.112 10 9.7257 -75.112
4 16 -10 14.7709 -94.304 10 14.7709 -94.304 10 9.7257 -75.112 -10 9.7257 -75.112
4 16 10 14.7709 -94.304 -10 14.7709 -94.304 -10 20.8437 -113.216 10 20.8437 -113.216
4 16 10 27.9256 -131.798 10 20.8437 -113.216 -10 20.8437 -113.216 -10 27.9256 -131.798
4 16 10 36 -150 10 27.9256 -131.798 -10 27.9256 -131.798 -10 36 -150
4 16 -10 0 10 -10 .1979 -3.199 10 .1979 -3.199 10 0 10
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-05-05 16:16:22
2025-08-28 09:59:15
bump
2025-08-28 10:32:18
1 16 -10 107 10 0 20 0 -107 0 0 0 0 -214 48\1-8cylo.dat
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
