File Detail parts/s/u9023as01.dat

Unofficial File parts/s/u9023as01.dat

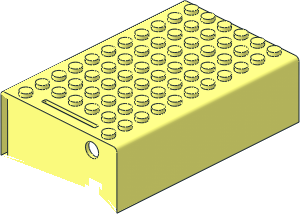

~Electric 4.5V Battery Box 7 x 11 x 3 Type 3 Lid - Common

File Header:

0 ~Electric  4.5V Battery Box  7 x 11 x  3 Type 3 Lid - Common
0 Name: s\u9023as01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-05-06 [Blechtaler] Subfiled without lower hole from u9023s01.dat

Show contents

0 // Front
1 16 -66 4 -110 -4 0 0 0 0 -4 0 1 0 1-4chrd.dat
1 16 66 4 -110 4 0 0 0 0 -4 0 1 0 1-4chrd.dat
1 16 40 14 -110 8 0 0 0 0 8 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 40 14 -110 8 0 0 0 0 8 0 4 0 4-4cylo.dat
1 16 40 14 -106 8 0 0 0 0 8 0 -1 0 4-4ndis.dat
3 16 -70 64 -110 32 54 -110 32 46 -110
3 16 -70 4 -110 32 22 -110 32 14 -110
4 16 -70 4 -110 32 14 -110 32 6 -110 -66 0 -110
3 16 48 6 -110 66 0 -110 40 6 -110
4 16 32 6 -110 40 6 -110 66 0 -110 -66 0 -110
4 16 66 0 -110 48 6 -110 48 14 -110 70 4 -110
3 16 70 4 -110 48 14 -110 48 22 -110
3 16 70 64 -110 48 46 -110 48 54 -110
3 16 66 64 -106 48 54 -106 48 46 -106
4 16 48 22 -106 66 4 -106 66 64 -106 48 46 -106
3 16 66 4 -106 48 22 -106 48 14 -106
3 16 66 4 -106 48 14 -106 48 6 -106
3 16 66 4 -106 48 6 -106 40 6 -106
4 16 66 4 -106 40 6 -106 32 6 -106 -66 4 -106
4 16 40 22 -106 48 22 -106 48 46 -106 40 46 -106
4 16 32 22 -106 40 22 -106 40 46 -106 32 46 -106
3 16 -66 4 -106 32 6 -106 32 14 -106
3 16 -66 4 -106 32 14 -106 32 22 -106
4 16 -66 64 -106 -66 4 -106 32 22 -106 32 46 -106
3 16 32 46 -106 32 54 -106 -66 64 -106

0 // Back
1 16 -66 4 110 -4 0 0 0 0 -4 0 -1 0 1-4chrd.dat
1 16 66 4 110 4 0 0 0 0 -4 0 -1 0 1-4chrd.dat
4 16 70 4 110 -70 4 110 -66 0 110 66 0 110
1 16 0 34 110 0 0 70 30 0 0 0 -1 0 rect1.dat

0 // Top
4 16 -32 0 -99 -32 0 -94 -66 0 110 -66 0 -110
4 16 66 0 -110 66 0 110 32 0 -94 32 0 -99
4 16 32 0 -99 -32 0 -99 -66 0 -110 66 0 -110
4 16 -32 0 -94 32 0 -94 66 0 110 -66 0 110
1 16 66 4 110 0 0 4 -4 0 0 0 -220 0 1-4cylo.dat
1 16 -66 4 -110 0 0 -4 -4 0 0 0 220 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -96.5 0 0 32 0 4 0 2.5 0 0 box4.dat
2 24 -66 0 -110 66 0 -110
2 24 -66 0 110 66 0 110
2 24 66 4 -106 -66 4 -106
4 16 -32 4 -99 32 4 -99 66 4 -106 -66 4 -106
4 16 32 4 -94 66 4 106 66 4 -106 32 4 -99
4 16 -66 4 -106 -66 4 106 -32 4 -94 -32 4 -99
4 16 -32 4 -94 -66 4 106 66 4 106 32 4 -94

0 // Top studs
1 16 0 0 50 0 0 1 0 1 0 -1 0 0 stug-6x6.dat
1 16 0 0 -50 0 0 1 0 1 0 -1 0 0 stug-4x4.dat
1 16 -50 0 -60 0 0 1 0 1 0 -1 0 0 stug-1x5.dat
1 16 50 0 -60 0 0 1 0 1 0 -1 0 0 stug-1x5.dat

0 // Bottom
4 16 70 64 110 66 64 106 -66 64 106 -70 64 110
4 16 -70 64 110 -66 64 106 -66 64 -106 -70 64 -110
4 16 70 64 -110 66 64 -106 66 64 106 70 64 110
1 16 -70 34 0 0 1 0 0 0 30 110 0 0 rect3.dat
1 16 70 34 0 0 -1 0 0 0 30 110 0 0 rect3.dat

0 // Inside
0 BFC INVERTNEXT
1 16 0 34 -106 0 0 -66 -30 0 0 0 212 0 box3u2p.dat
1 16 0 56 36 -3 0 0 0 -1 0 0 0 3 2-4ndis.dat
1 16 0 4 36 5 0 0 0 52 0 0 0 -5 2-4cylo.dat
1 16 0 56 36 1 0 0 0 -1 0 0 0 -1 2-4ring3.dat
1 16 0 56 36 1 0 0 0 -1 0 0 0 -1 2-4ring4.dat

3 16 -3 56 39 -3 56 36 -4 56 36
3 16 3 56 36 3 56 39 4 56 36
4 16 -4 56 36 -5 56 36 -5 56 39.5 -3 56 39
4 16 3 56 39 5 56 39.5 5 56 36 4 56 36
3 16 16 56 43.5 16 56 39.5 5 56 39.5
4 16 -16 56 43.5 0 56 39 -3 56 39 -5 56 39.5
4 16 5 56 39.5 3 56 39 0 56 39 16 56 43.5
3 16 -16 56 43.5 16 56 43.5 0 56 39
3 16 -5 56 39.5 -16 56 39.5 -16 56 43.5

4 16 -16 56 43.5 -66 4 43.5 66 4 43.5 16 56 43.5
3 16 -66 4 43.5 -16 56 43.5 -26 56 43.5
3 16 -66 4 43.5 -26 56 43.5 -44 56 43.5
3 16 -66 4 43.5 -44 56 43.5 -63 56 43.5
3 16 -66 4 43.5 -63 56 43.5 -66 56 43.5
3 16 16 56 43.5 66 4 43.5 26 56 43.5
3 16 26 56 43.5 66 4 43.5 44 56 43.5
3 16 44 56 43.5 66 4 43.5 63 56 43.5
3 16 63 56 43.5 66 4 43.5 66 56 43.5

3 16 5 4 39.5 5 56 39.5 16 56 39.5
3 16 5 4 39.5 16 56 39.5 26 56 39.5
4 16 26 56 39.5 44 56 39.5 66 4 39.5 5 4 39.5
3 16 66 4 39.5 44 56 39.5 63 56 39.5
3 16 66 4 39.5 63 56 39.5 66 56 39.5
3 16 -5 56 39.5 -5 4 39.5 -16 56 39.5
3 16 -16 56 39.5 -5 4 39.5 -26 56 39.5
4 16 -66 4 39.5 -44 56 39.5 -26 56 39.5 -5 4 39.5
3 16 -44 56 39.5 -66 4 39.5 -63 56 39.5
3 16 -63 56 39.5 -66 4 39.5 -66 56 39.5

0 BFC INVERTNEXT
1 16 0 48 36 3 0 0 0 8 0 0 0 -3 4-4cylo.dat
1 16 0 48 36 1 0 0 0 -1 0 0 0 -1 4-4ring2.dat
0 BFC INVERTNEXT
1 16 0 40 36 2 0 0 0 8 0 0 0 -2 4-4cylc.dat
2 24 66 4 43.5 -66 4 43.5
2 24 66 4 39.5 5 4 39.5
2 24 -66 4 39.5 -5 4 39.5
2 24 66 4 39.5 66 56 39.5
2 24 -66 4 39.5 -66 56 39.5
2 24 66 4 43.5 66 56 43.5
2 24 -66 4 43.5 -66 56 43.5
2 24 16 56 39.5 16 56 43.5
2 24 -16 56 39.5 -16 56 43.5
2 24 -16 56 43.5 16 56 43.5
1 16 64.5 56 41.5 1.5 0 0 0 -1 0 0 0 2 rect.dat
1 16 -64.5 56 41.5 1.5 0 0 0 -1 0 0 0 2 rect.dat
2 24 5 56 39.5 16 56 39.5
2 24 -5 56 39.5 -16 56 39.5
0 BFC INVERTNEXT
1 16 35 60 41.5 0 0 9 0 -4 0 -2 0 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 -35 60 41.5 0 0 9 0 -4 0 -2 0 0 box3u2p.dat
1 16 53.5 56 41.5 0 0 9.5 0 4 0 2 0 0 box4-7a.dat
1 16 21 56 41.5 0 0 -5 0 4 0 -2 0 0 box4-7a.dat
1 16 -53.5 56 41.5 0 0 -9.5 0 4 0 -2 0 0 box4-7a.dat
1 16 -21 56 41.5 0 0 5 0 4 0 2 0 0 box4-7a.dat
1 16 5 30 37.75 0 -1 0 26 0 0 0 0 1.75 rect3.dat
1 16 -5 30 37.75 0 1 0 26 0 0 0 0 1.75 rect3.dat
1 16 0 4 -86.8 1 0 0 0 3 0 0 0 1 box5.dat

1 16 66 44 -87.8 -4 0 0 0 0 18 0 2.8 0 1-4cylo.dat
1 16 66 44 -87.8 -4 0 0 0 0 18 0 1 0 1-4disc.dat
1 16 66 44 -85 -4 0 0 0 0 18 0 -1 0 1-4disc.dat
1 16 66 24 -86.4 0 -4 0 20 0 0 0 0 1.4 box3u5p.dat
1 16 66 38 -94.6 -4 0 0 0 0 18 0 2.8 0 1-4cylo.dat
1 16 66 38 -94.6 -4 0 0 0 0 18 0 1 0 1-4disc.dat
1 16 66 38 -91.8 -4 0 0 0 0 18 0 -1 0 1-4disc.dat
1 16 66 21 -93.2 0 -4 0 17 0 0 0 0 1.4 box3u5p.dat
1 16 -66 44 -85 4 0 0 0 0 18 0 -2.8 0 1-4cylo.dat
1 16 -66 44 -85 4 0 0 0 0 18 0 -1 0 1-4disc.dat
1 16 -66 44 -87.8 4 0 0 0 0 18 0 1 0 1-4disc.dat
1 16 -66 24 -86.4 0 4 0 20 0 0 0 0 -1.4 box3u5p.dat
1 16 -66 38 -91.8 4 0 0 0 0 18 0 -2.8 0 1-4cylo.dat
1 16 -66 38 -91.8 4 0 0 0 0 18 0 -1 0 1-4disc.dat
1 16 -66 38 -94.6 4 0 0 0 0 18 0 1 0 1-4disc.dat
1 16 -66 21 -93.2 0 4 0 17 0 0 0 0 -1.4 box3u5p.dat
1 16 -66 15 -56 0 2 0 11 0 0 0 0 -1 box3u5p.dat
1 16 -66 26 -55 2 0 0 0 0 18 0 -2 0 1-4cylo.dat
1 16 -66 26 -55 2 0 0 0 0 18 0 -1 0 1-4disc.dat
1 16 -66 26 -57 2 0 0 0 0 18 0 1 0 1-4disc.dat
1 16 -66 15 -6 0 2 0 11 0 0 0 0 -1 box3u5p.dat
1 16 -66 26 -5 2 0 0 0 0 18 0 -2 0 1-4cylo.dat
1 16 -66 26 -5 2 0 0 0 0 18 0 -1 0 1-4disc.dat
1 16 -66 26 -7 2 0 0 0 0 18 0 1 0 1-4disc.dat
1 16 66 15 -6 0 -2 0 11 0 0 0 0 1 box3u5p.dat
1 16 66 26 -7 -2 0 0 0 0 18 0 2 0 1-4cylo.dat
1 16 66 26 -7 -2 0 0 0 0 18 0 1 0 1-4disc.dat
1 16 66 26 -5 -2 0 0 0 0 18 0 -1 0 1-4disc.dat
1 16 66 15 -56 0 -2 0 11 0 0 0 0 1 box3u5p.dat
1 16 66 26 -57 -2 0 0 0 0 18 0 2 0 1-4cylo.dat
1 16 66 26 -57 -2 0 0 0 0 18 0 1 0 1-4disc.dat
1 16 66 26 -55 -2 0 0 0 0 18 0 -1 0 1-4disc.dat
1 16 66 35 -6 0 1 0 0 0 9 1 0 0 recte3.dat
1 16 66 35 -56 0 1 0 0 0 9 1 0 0 recte3.dat
1 16 66 53 -86.4 0 1 0 0 0 9 1.4 0 0 recte3.dat
1 16 66 47 -93.2 0 1 0 0 0 9 1.4 0 0 recte3.dat
1 16 -66 35 -6 0 -1 0 0 0 9 -1 0 0 recte3.dat
1 16 -66 35 -56 0 -1 0 0 0 9 -1 0 0 recte3.dat
1 16 -66 53 -86.4 0 -1 0 0 0 9 -1.4 0 0 recte3.dat
1 16 -66 47 -93.2 0 -1 0 0 0 9 -1.4 0 0 recte3.dat

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-05-06 16:58:42

new variant of u9023 (only difference is the lower hole, its closed...)
