Official File parts/6806.dat
Part Attributes:
File Header:

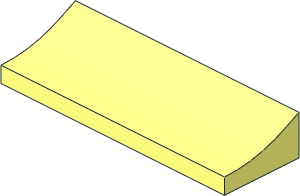

0 Arch 2 x 6 x 0.833 Inverted
0 Name: 6806.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS spoiler
0 !HISTORY 2025-03-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-03-01 [GeraldLasser] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
4 16 56 0 -16 56 0 16 60 0 20 60 0 -20
4 16 -60 0 20 60 0 20 56 0 16 -56 0 16
4 16 -56 0 16 -56 0 -16 -60 0 -20 -60 0 20
4 16 56 0 -16 60 0 -20 -60 0 -20 -56 0 -16
1 16 0 -2.5 -16 0 0 -56 2.5 0 0 0 -1 0 rect.dat
1 16 0 -7.125 16 56 0 0 0 0 -7.125 0 1 0 rect.dat
3 16 56 -5.6 -8 56 0 -16 56 -5 -16
4 16 56 -10.5 8 56 0 16 56 0 -16 56 -5.6 -8
3 16 56 -14.25 16 56 0 16 56 -10.5 8
3 16 -56 0 -16 -56 -5.6 -8 -56 -5 -16
4 16 -56 0 -16 -56 0 16 -56 -10.5 8 -56 -5.6 -8
3 16 -56 0 16 -56 -14.25 16 -56 -10.5 8
2 24 60 0 -20 60 0 20
2 24 -60 0 -20 -60 0 20
2 24 56 0 16 56 0 -16
2 24 -56 0 16 -56 0 -16
2 24 56 -5 -16 56 -5.6 -8
2 24 56 -5.6 -8 56 -10.5 8
2 24 56 -10.5 8 56 -14.25 16
2 24 -56 -14.25 16 -56 -10.5 8
2 24 -56 -10.5 8 -56 -5.6 -8
2 24 -56 -5.6 -8 -56 -5 -16
1 16 0 -5.6 0 1 0 0 0 -1.4 0 0 0 1 stud4a.dat
1 16 0 -5.6 0 0 0 1 0 2.45 0 -1 0 0 stud4s.dat
1 16 20 -5.6 0 1 0 0 0 -1.4 0 0 0 1 stud4a.dat
1 16 20 -5.6 0 0 0 1 0 2.45 0 -1 0 0 stud4s.dat
1 16 -20 -5.6 0 1 0 0 0 -1.4 0 0 0 1 stud4a.dat
1 16 -20 -5.6 0 0 0 1 0 2.45 0 -1 0 0 stud4s.dat
1 16 40 -5.6 0 1 0 0 0 -1.4 0 0 0 1 stud4a.dat
1 16 40 -5.6 0 0 0 1 0 2.45 0 -1 0 0 stud4s.dat
1 16 -40 -5.6 0 1 0 0 0 -1.4 0 0 0 1 stud4a.dat
1 16 -40 -5.6 0 0 0 1 0 2.45 0 -1 0 0 stud4s.dat
4 16 56 -5.6 -8 56 -5 -16 -56 -5 -16 -56 -5.6 -8
4 16 56 -5.6 -8 -56 -5.6 -8 -56 -10.5 8 56 -10.5 8
4 16 56 -14.25 16 56 -10.5 8 -56 -10.5 8 -56 -14.25 16
5 24 -56 -10.5 8 56 -10.5 8 -56 -14.25 16 56 -5.6 -8
5 24 -56 -5.6 -8 56 -5.6 -8 56 -5 -16 -56 -10.5 8
