Official File parts/30159b.dat
Part Attributes:
File Header:

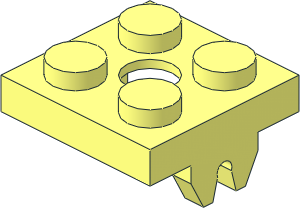

0 Magnet Holder Plate 2 x 2 Bottom
0 Name: 30159b.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Part UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Usage of this part with magnet
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 30159b.dat
0 !HELP 1 16 0 12.75 0 1 0 0 0 0 1 0 1 0 2959bc01.dat
0 BFC CERTIFY CCW
0 !KEYWORDS Adventurers, BrickLink 30159, Insectoids, Rebrickable 30159
0 !KEYWORDS rock raiders, UCS Imperial Star Destroyer
0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06
Show contents
0 // Arm Subfiles
1 16 17.5 8 0 -1 0 0 0 -1 0 0 0 1 s\30159bs01.dat
1 16 -17.5 8 0 1 0 0 0 -1 0 0 0 1 s\30159bs01.dat
0 // Top Plate Outer Geometry
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug-2x2.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
3 16 -20 0 20 -6 0 6 0 0 6
4 16 -20 0 20 0 0 6 6 0 6 20 0 20
3 16 0 0 -6 -6 0 -6 -20 0 -20
4 16 -20 0 -20 20 0 -20 6 0 -6 0 0 -6
3 16 20 0 20 6 0 6 6 0 0
4 16 20 0 20 6 0 0 6 0 -6 20 0 -20
3 16 -6 0 0 -6 0 6 -20 0 20
4 16 -6 0 -6 -6 0 0 -20 0 20 -20 0 -20
1 16 0 0 0 20 0 0 0 8 0 0 0 20 box4o4a.dat
0 // Top Plate Bottom Edges
4 16 20 8 20 16 8 16 -16 8 16 -20 8 20
4 16 -20 8 20 -16 8 16 -16 8 9 -20 8 9
4 16 -20 8 -9 -16 8 -9 -16 8 -16 -20 8 -20
4 16 -20 8 -20 -16 8 -16 16 8 -16 20 8 -20
4 16 20 8 -20 16 8 -16 16 8 -9 20 8 -9
4 16 20 8 9 16 8 9 16 8 16 20 8 20
0 // Cavity Bottom
0 BFC INVERTNEXT
1 16 0 0 0 6 0 0 0 2 0 0 0 6 4-4cylo.dat
1 16 0 2 0 6 0 0 0 -1 0 0 0 6 4-4ndis.dat
3 16 -2 2 14 0 2 6 -6 2 6
3 16 6 2 0 13 2 -2 6 2 -6
3 16 2 2 -14 0 2 -6 6 2 -6
3 16 -6 2 -6 -13 2 -2 -6 2 0
4 16 16 2 16 16 2 9 15 2 9 2 2 16
4 16 15 2 2 13 2 2 6 2 6 15 2 9
4 16 2 2 16 15 2 9 6 2 6 2 2 14
4 16 0 2 6 -2 2 14 2 2 14 6 2 6
4 16 -15 2 9 -16 2 9 -16 2 16 -2 2 16
4 16 -2 2 16 -2 2 14 -6 2 6 -15 2 9
4 16 -6 2 6 -13 2 2 -15 2 2 -15 2 9
4 16 -13 2 -2 -13 2 2 -6 2 6 -6 2 0
4 16 13 2 -2 6 2 0 6 2 6 13 2 2
4 16 -16 2 -16 -16 2 -9 -15 2 -9 -2 2 -16
4 16 -15 2 -2 -13 2 -2 -6 2 -6 -15 2 -9
4 16 -2 2 -16 -15 2 -9 -6 2 -6 -2 2 -14
4 16 0 2 -6 2 2 -14 -2 2 -14 -6 2 -6
4 16 15 2 -9 16 2 -9 16 2 -16 2 2 -16
4 16 2 2 -16 2 2 -14 6 2 -6 15 2 -9
4 16 6 2 -6 13 2 -2 15 2 -2 15 2 -9
0 // Cavity Walls
1 16 15.5 5 -9 .5 0 0 0 0 -3 0 1 0 rect3.dat
1 16 15.5 5 9 -.5 0 0 0 0 -3 0 -1 0 rect3.dat
1 16 -15.5 5 9 -.5 0 0 0 0 -3 0 -1 0 rect3.dat
1 16 -15.5 5 -9 .5 0 0 0 0 -3 0 1 0 rect3.dat
1 16 -16 5 12.5 0 -1 0 3 0 0 0 0 3.5 rect3.dat
1 16 16 5 12.5 0 1 0 -3 0 0 0 0 3.5 rect3.dat
1 16 16 5 -12.5 0 1 0 3 0 0 0 0 -3.5 rect3.dat
1 16 -16 5 -12.5 0 -1 0 -3 0 0 0 0 -3.5 rect3.dat
4 16 -16 8 16 -2 3 16 -2 2 16 -16 2 16
4 16 2 2 16 2 3 16 16 8 16 16 2 16
4 16 16 8 16 2 3 16 -2 3 16 -16 8 16
4 16 -15 2 9 -15 2 2 -15 3 2 -15 8 9
4 16 -15 8 9 -15 3 2 -15 3 -2 -15 8 -9
4 16 -15 3 -2 -15 2 -2 -15 2 -9 -15 8 -9
4 16 16 8 -16 2 3 -16 2 2 -16 16 2 -16
4 16 -2 2 -16 -2 3 -16 -16 8 -16 -16 2 -16
4 16 -16 8 -16 -2 3 -16 2 3 -16 16 8 -16
4 16 15 2 -9 15 2 -2 15 3 -2 15 8 -9
4 16 15 8 -9 15 3 -2 15 3 2 15 8 9
4 16 15 3 2 15 2 2 15 2 9 15 8 9
0 // Magnet Support Blocks
1 16 0 2 -15 2 0 0 0 1 0 0 0 1 box4-1.dat
1 16 0 2 15 2 0 0 0 1 0 0 0 -1 box4-1.dat
1 16 -14 2 0 0 0 1 0 1 0 -2 0 0 box4-1.dat
1 16 14 2 0 0 0 -1 0 1 0 -2 0 0 box4-1.dat
0 // Edge Lines
2 24 -20 8 -20 20 8 -20
2 24 15 2 2 15 2 9
2 24 -16 8 16 16 8 16
2 24 20 8 20 -20 8 20
2 24 2 2 -16 16 2 -16
2 24 16 2 16 2 2 16
2 24 16 8 -16 -16 8 -16
2 24 -2 2 16 -16 2 16
2 24 15 2 -9 15 2 -2
2 24 -15 2 -2 -15 2 -9
2 24 -15 2 9 -15 2 2
2 24 -16 2 -16 -2 2 -16
2 24 -20 8 -9 -20 8 -20
2 24 -20 8 9 -20 8 20
2 24 20 8 20 20 8 9
2 24 20 8 -9 20 8 -20
2 24 -16 8 -9 -20 8 -9
2 24 20 8 -9 16 8 -9
2 24 16 8 9 20 8 9
2 24 -20 8 9 -16 8 9
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-05-08 23:02:08
2025-05-08 23:04:22
Note that the assembly for Set 6969 (if aligned fully straight) will create a collison. This is however present on the real model as well. Due to the slight rotation of the magnets this is usually not noticed.
2025-05-18 12:33:29
* T-junk on top:
2 4 -6 0 6 -6 0 0
2 4 6 0 6 6 0 -6
2 4 6 0 0 6 0 6
2 4 -6 0 0 -6 0 -6
2 4 -6 0 6 6 0 6
2 4 6 0 -6 6 0 0
2 4 6 0 -6 -6 0 -6
2 4 -6 0 -6 0 0 -6
2 4 0 0 -6 6 0 -6
2 4 -6 0 -6 -6 0 6
2 4 6 0 6 0 0 6
2 4 0 0 6 -6 0 6
2 4 -6 0 6 -6 0 0
2 4 6 0 6 6 0 -6
2 4 6 0 0 6 0 6
2 4 -6 0 0 -6 0 -6
2 4 -6 0 6 6 0 6
2 4 6 0 -6 6 0 0
2 4 6 0 -6 -6 0 -6
2 4 -6 0 -6 0 0 -6
2 4 0 0 -6 6 0 -6
2 4 -6 0 -6 -6 0 6
2 4 6 0 6 0 0 6
2 4 0 0 6 -6 0 6
*removed T-junc on top plate
*re-oriented the arm sub-files to match the other holders
*AND - arms got 1 LDU longer (meaning magnets are now 1 LDU more away from the plate)
Explanation:
Due to some concerns raised (https://library.ldraw.org/parts/24291) I remeasured everything with an "empty magnet" (only the plastic ring) to avoid issues with magnet-to-ring offset and the coarser magnet (the actual magnetic part) tolerances.
The result confirmed the values for 2609a, b and c (so no changes there), but I discovered a little mistake for this part (30159), namely the 1 LDU difference. It also solved an issue with the model's proportions looking somewhat off when compared to the real one (as well as some issues with the side vehicles on Set 6969).
Sorry for any caused confusion :(
*re-oriented the arm sub-files to match the other holders
*AND - arms got 1 LDU longer (meaning magnets are now 1 LDU more away from the plate)
Explanation:
Due to some concerns raised (https://library.ldraw.org/parts/24291) I remeasured everything with an "empty magnet" (only the plastic ring) to avoid issues with magnet-to-ring offset and the coarser magnet (the actual magnetic part) tolerances.
The result confirmed the values for 2609a, b and c (so no changes there), but I discovered a little mistake for this part (30159), namely the 1 LDU difference. It also solved an issue with the model's proportions looking somewhat off when compared to the real one (as well as some issues with the side vehicles on Set 6969).
Sorry for any caused confusion :(
* Stud logo orientation:
https://rebrickable.com/media/parts/photos/19/30159-19-1a1c127d-9067-43d3-ab85-a86c85ea03e2.jpg
https://rebrickable.com/media/parts/photos/19/30159-19-1a1c127d-9067-43d3-ab85-a86c85ea03e2.jpg
Good spot!
2025-05-21 11:58:32
2025-05-21 16:45:49
2025-06-21 07:26:35
2025-06-26 01:28:26
Release 2025-06
