Unofficial File parts/s/31925s01.dat
File Header:

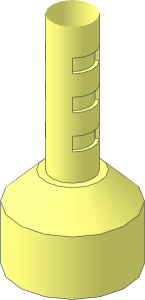

0 ~Duplo Utensil Base
0 Name: s\31925s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-05-09 [WUIt] Subparted from 31925 by Philo
Show contents
0 // copied from 31925
1 16 0 -24 0 0 0 -2 0 1 0 2 0 0 4-4ring3.dat
1 16 0 -24 0 0 0 -8 0 -1 0 8 0 0 4-4edge.dat
1 16 0 -16 0 0 0 -1 0 -4 0 -1 0 0 stud28.dat
1 16 0 -16 0 0 0 -8 0 -8 0 8 0 0 4-4con1.dat
0 BFC INVERTNEXT
1 16 0 -14 0 0 0 -7 0 -6 0 7 0 0 4-4con1.dat
1 16 0 -20 0 0 0 -7 0 -1 0 7 0 0 4-4edge.dat
1 16 0 -20 0 0 0 -7 0 -1 0 7 0 0 4-4disc.dat
2 24 12 -14.8671 -4.9707 12 -14.003 -6.75
2 24 12 -14.003 -6.75 9.375 -14.6357 -9.375
2 24 4.9707 -14.8671 -12 6.75 -14.003 -12
2 24 6.75 -14.003 -12 9.375 -14.6357 -9.375
2 24 12 -15.7143 0 12 -14.8671 4.9707
2 24 12 -15.7143 0 12 -14.8671 -4.9707
2 24 -6.75 -14.003 -12 -4.9707 -14.8671 -12
2 24 4.9707 -14.8671 -12 0 -15.7143 -12
2 24 -4.9707 -14.8671 -12 0 -15.7143 -12
2 24 4.9707 -14.8671 12 6.75 -14.003 12
2 24 9.375 -14.6357 9.375 6.75 -14.003 12
2 24 12 -14.003 6.75 12 -14.8671 4.9707
2 24 9.375 -14.6357 9.375 12 -14.003 6.75
2 24 4.9707 -14.8671 12 0 -15.7143 12
2 24 -9.375 -14.6357 9.375 -12 -14.003 6.75
2 24 -9.375 -14.6357 9.375 -6.75 -14.003 12
2 24 -4.9707 -14.8671 12 0 -15.7143 12
2 24 -6.75 -14.003 12 -4.9707 -14.8671 12
2 24 -9.375 -14.6357 -9.375 -6.75 -14.003 -12
2 24 -12 -14.003 -6.75 -9.375 -14.6357 -9.375
2 24 -12 -14.003 6.75 -12 -14.8671 4.9707
2 24 -12 -15.7143 0 -12 -14.8671 -4.9707
2 24 -12 -15.7143 0 -12 -14.8671 4.9707
2 24 -12 -14.8671 -4.9707 -12 -14.003 -6.75
1 16 0 -24 0 0 0 -6 0 -1 0 6 0 0 4-4edge.dat
1 16 0 -24 0 0 0 -6 0 -8 0 6 0 0 4-4cyli.dat
1 16 0 -36 0 0 0 -6 0 -6 0 6 0 0 4-4cyli.dat
1 16 0 -56 0 0 0 -6 0 -8 0 6 0 0 4-4cyli.dat
1 16 0 -46 0 0 0 -6 0 -6 0 6 0 0 4-4cyli.dat
0 // new grooves
1 16 0 -54 0 1 0 0 0 2 0 0 0 1 s\31925s02.dat
1 16 0 -54 0 1 0 0 0 2 0 0 0 -1 s\31925s02.dat
1 16 0 -54 0 -1 0 0 0 2 0 0 0 1 s\31925s02.dat
1 16 0 -54 0 -1 0 0 0 2 0 0 0 -1 s\31925s02.dat
1 16 0 -34 0 1 0 0 0 2 0 0 0 1 s\31925s02.dat
1 16 0 -34 0 1 0 0 0 2 0 0 0 -1 s\31925s02.dat
1 16 0 -34 0 -1 0 0 0 2 0 0 0 1 s\31925s02.dat
1 16 0 -34 0 -1 0 0 0 2 0 0 0 -1 s\31925s02.dat
1 16 0 -44 0 1 0 0 0 2 0 0 0 1 s\31925s02.dat
1 16 0 -44 0 1 0 0 0 2 0 0 0 -1 s\31925s02.dat
1 16 0 -44 0 -1 0 0 0 2 0 0 0 1 s\31925s02.dat
1 16 0 -44 0 -1 0 0 0 2 0 0 0 -1 s\31925s02.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Fixed coplanarity warnings and subfiled base for reuse.
2025-05-10 18:28:30
hm, rotating/squishing partial cyl prims is normally a bad idea...
would it work better by using unrotated (but still squished) 3-16 cylo prims instead of the rotated 3-8 prims?
would it work better by using unrotated (but still squished) 3-16 cylo prims instead of the rotated 3-8 prims?
2025-05-10 21:41:14
could use something like that:
1 16 0 -36 0 0 0 6 0 4 0 6 0 0 1-16cyli.dat
1 16 0 -36 0 0 0 6 0 4 0 -6 0 0 1-16cyli.dat
1 16 0 -32 0 6 0 0 0 1 0 0 0 6 3-16chrde.dat
1 16 0 -32 0 6 0 0 0 1 0 0 0 -6 3-16chrde.dat
1 16 0 -36 0 6 0 0 0 -1 0 0 0 6 3-16chrde.dat
1 16 0 -36 0 6 0 0 0 -1 0 0 0 -6 3-16chrde.dat
1 16 1.1481 -36 0 3 0 0 0 4 0 0 0 6 3-16cylo.dat
1 16 1.1481 -36 0 3 0 0 0 4 0 0 0 -6 3-16cylo.dat
(needs filling triangles and condlines)
also could be subfiled
-> this solution has no vertex mismatches/gaps from rotated cylos
1 16 0 -36 0 0 0 6 0 4 0 6 0 0 1-16cyli.dat
1 16 0 -36 0 0 0 6 0 4 0 -6 0 0 1-16cyli.dat
1 16 0 -32 0 6 0 0 0 1 0 0 0 6 3-16chrde.dat
1 16 0 -32 0 6 0 0 0 1 0 0 0 -6 3-16chrde.dat
1 16 0 -36 0 6 0 0 0 -1 0 0 0 6 3-16chrde.dat
1 16 0 -36 0 6 0 0 0 -1 0 0 0 -6 3-16chrde.dat
1 16 1.1481 -36 0 3 0 0 0 4 0 0 0 6 3-16cylo.dat
1 16 1.1481 -36 0 3 0 0 0 4 0 0 0 -6 3-16cylo.dat
(needs filling triangles and condlines)
also could be subfiled
-> this solution has no vertex mismatches/gaps from rotated cylos
2025-05-10 21:55:27
You should really use non-rotated prims e.g.
1 1 0 -52 0 0 0 6 0 -4 0 6 0 0 1-16cyli.dat
1 1 .9567 -52 0 3.5 0 0 0 -4 0 0 0 6 3-16cyli.dat
to save code, you could make it half or a quarter
1 1 0 -52 0 0 0 6 0 -4 0 6 0 0 1-16cyli.dat
1 1 .9567 -52 0 3.5 0 0 0 -4 0 0 0 6 3-16cyli.dat
to save code, you could make it half or a quarter
2025-05-10 22:07:54
i would rather use one indent (half) and use that 6 tines
Please excuse the original author. I didn't change his design. It was an official part and approved not too long ago.
I have now remodeled the grooves and subfiled as requested. There may be future use cases where the grooves or the handle might be reused.
I have now remodeled the grooves and subfiled as requested. There may be future use cases where the grooves or the handle might be reused.
2025-05-11 10:54:03
oh yes, there's always the chance that new ideas pop up when parts are remodeled and put on the tracker again :-)
It is a good idea to suppart it this way in order to cater for parts tat use this handle design as well.
It is a good idea to suppart it this way in order to cater for parts tat use this handle design as well.
2025-05-11 14:40:49
This handle with bottom stud can be reused in hand sign 41759 and seaweed 43852.
