Official File parts/7329.dat
Part Attributes:
File Header:

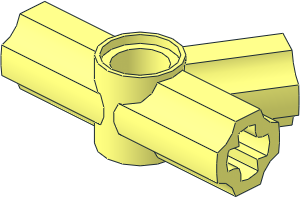

0 Technic Angle Connector 3-Way 60 Degree + 120 Degrees Y-Shaped
0 Name: 7329.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 connhole.dat
1 16 0 10 0 -9 0 0 0 -20 0 0 0 9 4-4cylo.dat
1 16 30 0 0 0 -20 0 -1 0 0 0 0 1 axl3hol8.dat
1 16 30 0 0 0 -1 0 -1 0 0 0 0 1 axl3hol9.dat
1 16 30 0 0 0 -1 0 -1 0 0 0 0 1 axl3hol2.dat
1 16 10 0 0 0 -1 0 -1 0 0 0 0 1 axl3hol9.dat
1 16 10 0 0 0 -1 0 -1 0 0 0 0 1 axl3hol2.dat
1 16 10 0 0 0 -1 0 -6 0 0 0 0 6 4-4disc.dat
1 16 30 0 0 0 -1 0 -1 0 0 0 0 1 axl3ho10.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\6611s02.dat
1 16 0 0 0 0.5 0 0.86603 0 1 0 0.86603 0 -0.5 s\6611s02.dat
1 16 15 0 25.9808 0 -10 -0.86603 -1 0 0 0 -17.32051 0.5 axl3hol8.dat
1 16 15 0 25.9808 0 -1 -0.86603 -1 0 0 0 0 0.5 axl3hol9.dat
1 16 15 0 25.9808 0 -1 -0.86603 -1 0 0 0 0 0.5 axl3hol2.dat
1 16 15 0 25.9808 0 -1 -0.86603 -1 0 0 0 0 0.5 axl3ho10.dat
2 24 7.6298 -6.1799 4.4051 7.5708 -6.2622 4.371
2 24 8.3151 -8.4985 3.4443 7.673 -6.1799 4.4051
2 24 7.6498 -6.1799 4.4397 7.0544 -8.4993 5.3307
2 24 1.0938 -8.5 8.7825 3.4443 -8.5 8.3151
2 24 0.0983 -6.1799 8.9805 1.0938 -8.4993 8.7825
2 24 6.3639 -8.5 6.3639 7.0544 -8.5 5.3306
2 24 3.4443 -8.5 8.3151 6.3639 -8.5 6.3639
2 24 8.3152 -8.5 -3.444 9 -8.5 0
2 24 8.3152 -8.5 3.444 9 -8.5 0
2 24 15.1102 -1.1543 8.7237 15.11 1.1543 8.724
2 24 7.5708 6.2622 4.371 7.6298 6.1799 4.4051
2 24 7.673 6.1799 4.4051 8.3151 8.4985 3.4443
2 24 7.0544 8.4993 5.3307 7.6498 6.1799 4.4397
2 24 3.4443 8.5 8.3151 1.0938 8.5 8.7825
2 24 1.0938 8.4993 8.7825 0.0983 6.1799 8.9805
2 24 7.0544 8.5 5.3306 6.3639 8.5 6.3639
2 24 6.3639 8.5 6.3639 3.4443 8.5 8.3151
2 24 9 8.5 0 8.3152 8.5 -3.444
2 24 9 8.5 0 8.3152 8.5 3.444
2 24 8.3151 -8.4993 -3.4443 7.6734 -6.1803 -4.4046
2 24 6.3639 -4.3288 -6.3639 3.4443 -3.5203 -8.3151
2 24 6.4869 -4.4051 -6.1799 6.3639 -4.3288 -6.3639
2 24 7.6734 -6.1803 -4.4046 6.4869 -4.4051 -6.1799
2 24 7.6734 6.1803 -4.4046 8.3151 8.4993 -3.4443
2 24 3.4443 3.5203 -8.3151 6.3639 4.3288 -6.3639
2 24 6.3639 4.3288 -6.3639 6.4869 4.4051 -6.1799
2 24 6.4869 4.4051 -6.1799 7.6734 6.1803 -4.4046
2 24 3.4443 3.5203 -8.3151 2.5195 3.444 -8.499
2 24 2.5182 -3.4442 -8.4993 3.4443 -3.5203 -8.3151
2 24 2.5182 -3.4442 -8.4993 1.3882 -1.1543 -8.724
2 24 1.3895 1.1549 -8.7237 2.5195 3.444 -8.499
2 24 1.3895 1.1549 -8.7237 1.3882 -1.1543 -8.724
1 16 5 0 8.6603 0 -1 -0.86603 -1 0 0 0 0 0.5 axl3hol9.dat
1 16 5 0 8.6603 0 -1 -0.86603 -1 0 0 0 0 0.5 axl3hol2.dat
1 16 5 0 8.6603 0 -1 -5.19615 -6 0 0 0 0 3 4-4disc.dat
1 16 -30 0 0 0 20 0 1 0 0 0 0 1 axl3hol8.dat
1 16 -30 0 0 0 1 0 1 0 0 0 0 1 axl3hol9.dat
1 16 -30 0 0 0 1 0 1 0 0 0 0 1 axl3hol2.dat
1 16 -10 0 0 0 1 0 1 0 0 0 0 1 axl3hol9.dat
1 16 -10 0 0 0 1 0 1 0 0 0 0 1 axl3hol2.dat
1 16 -10 0 0 0 1 0 6 0 0 0 0 6 4-4disc.dat
1 16 -30 0 0 0 1 0 1 0 0 0 0 1 axl3ho10.dat
2 24 -7.6298 6.1799 4.4051 -7.5708 6.2622 4.371
2 24 -8.3151 8.4985 3.4443 -7.673 6.1799 4.4051
2 24 -8.3152 8.5 -3.444 -9 8.5 0
2 24 -8.3152 8.5 3.444 -9 8.5 0
2 24 -7.5708 -6.2622 4.371 -7.6298 -6.1799 4.4051
2 24 -7.673 -6.1799 4.4051 -8.3151 -8.4985 3.4443
2 24 -9 -8.5 0 -8.3152 -8.5 -3.444
2 24 -9 -8.5 0 -8.3152 -8.5 3.444
2 24 -8.3151 8.4993 -3.4443 -7.6734 6.1803 -4.4046
2 24 -6.3639 4.3288 -6.3639 -3.4443 3.5203 -8.3151
2 24 -6.4869 4.4051 -6.1799 -6.3639 4.3288 -6.3639
2 24 -7.6734 6.1803 -4.4046 -6.4869 4.4051 -6.1799
2 24 -7.6734 -6.1803 -4.4046 -8.3151 -8.4993 -3.4443
2 24 -3.4443 -3.5203 -8.3151 -6.3639 -4.3288 -6.3639
2 24 -6.3639 -4.3288 -6.3639 -6.4869 -4.4051 -6.1799
2 24 -6.4869 -4.4051 -6.1799 -7.6734 -6.1803 -4.4046
2 24 -3.4443 -3.5203 -8.3151 -2.5195 -3.444 -8.499
2 24 -2.5182 3.4442 -8.4993 -3.4443 3.5203 -8.3151
2 24 -2.5182 3.4442 -8.4993 -1.3882 1.1543 -8.724
2 24 -1.3895 -1.1549 -8.7237 -2.5195 -3.444 -8.499
2 24 -1.3895 -1.1549 -8.7237 -1.3882 1.1543 -8.724
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\6611s03.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\6611s03.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 -1 s\6611s03.dat
1 16 0 0 0 0.5 0 0.86603 0 1 0 0.86603 0 -0.5 s\6611s03.dat
2 24 0 -6.0849 9 -2.1914 -4.4051 8.5642
2 24 -4.9071 -3.444 8.4993 -4.4231 -3.7914 7.661
2 24 -3.4443 -4.0071 8.3151 -4.4231 -3.7914 7.661
2 24 -3.4443 -4.0071 8.3151 -2.1914 -4.4051 8.5642
2 24 -6.3639 -4.3288 6.3639 -6.4869 -4.4051 6.1799
2 24 -6.3639 -4.3288 6.3639 -4.4231 -3.7914 7.661
2 24 -6.4869 -4.4051 6.1799 -7.6734 -6.1803 4.4046
2 24 0 -6.0849 9 0.0983 -6.1799 8.9805
2 24 -2.1914 4.4051 8.5642 0 6.0849 9
2 24 -4.4231 3.7914 7.661 -4.9071 3.444 8.4993
2 24 -4.4231 3.7914 7.661 -3.4443 4.0071 8.3151
2 24 -2.1914 4.4051 8.5642 -3.4443 4.0071 8.3151
2 24 -6.4869 4.4051 6.1799 -6.3639 4.3288 6.3639
2 24 -4.4231 3.7914 7.661 -6.3639 4.3288 6.3639
2 24 -7.6734 6.1803 4.4046 -6.4869 4.4051 6.1799
2 24 0.0983 6.1799 8.9805 0 6.0849 9
2 24 -5.0369 1.1549 8.7237 -4.9073 3.444 8.499
2 24 -5.0365 -1.1543 8.724 -5.037 1.1543 8.7237
2 24 -4.9068 -3.444 8.4993 -5.0366 -1.1549 8.7239
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-05-10 14:56:24
could need some rounding
Rounded...
2025-05-16 07:52:41
2025-05-16 08:23:43
2025-05-17 10:53:14
could use 6611s03 a 4th time
2025-05-17 19:38:52
Indded, 6611s03 could be used at
1 9 0 0 0 1 0 0 0 -1 0 0 0 1 s\6611s03.dat
1 9 0 0 0 1 0 0 0 -1 0 0 0 1 s\6611s03.dat
reused s03 once more
2025-05-23 07:03:19
2025-05-23 16:55:36
2025-05-28 03:04:37
2025-05-28 03:31:43
Release 2025-05
