Unofficial File parts/69234.dat
Part Attributes:
File Header:

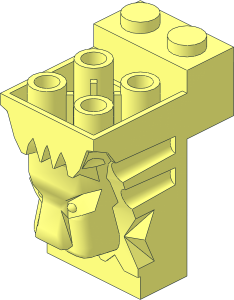

0 Brick 3 x 2 x 3 with Lion Head Carving and Cutout with Solid Studs
0 Name: 69234.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Subpart
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30274s01.dat
0 // Primitives
1 16 0 0 20 0 0 1 0 1 0 -1 0 0 stug-2x1.dat
1 16 -5.898 24 -4.102 .707 1.555 0 0 0 -16 .707 -1.555 0 box4-2p.dat
1 16 5.898 24 -4.102 -.707 -1.555 0 0 0 -16 .707 -1.555 0 box4-2p.dat
1 16 -5.898 30 -15.898 0 1.555 .707 22 0 0 0 1.555 -.707 box3u5p.dat
1 16 5.898 30 -15.898 0 -1.555 -.707 22 0 0 0 1.555 -.707 box3u5p.dat
0 // Faces
4 16 -5.191 8 -16.605 -3.636 8 -15.05 -5.05 8 -13.636 -6.605 8 -15.191
4 16 5.05 8 -13.636 3.636 8 -15.05 5.191 8 -16.605 6.605 8 -15.191
0 // Edges
2 24 -5.7574 8 -4.2426 -5.191 8 -3.395
2 24 -5.7574 8 -4.2426 -6.605 8 -4.809
2 24 5.7574 8 -4.2426 5.191 8 -3.395
2 24 5.7574 8 -4.2426 6.605 8 -4.809
2 24 -5.7574 8 -15.7574 -6.605 8 -15.191
2 24 -5.7574 8 -15.7574 -5.191 8 -16.605
2 24 5.7574 8 -15.7574 6.605 8 -15.191
2 24 5.7574 8 -15.7574 5.191 8 -16.605
2 24 -6.605 51.1011 -15.191 -5.05 51.2955 -13.636
2 24 -5.05 51.2955 -13.636 -3.636 51.1187 -15.05
2 24 -3.636 51.1187 -15.05 -5.191 50.9244 -16.605
2 24 6.605 51.1011 -15.191 5.05 51.2955 -13.636
2 24 5.05 51.2955 -13.636 3.636 51.1187 -15.05
2 24 3.636 51.1187 -15.05 5.191 50.9244 -16.605
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-05-25 09:52:33
2025-05-25 10:10:24
note the id associated is for a variant with soild studs removing a connection point
2025-07-08 22:36:41
so this should not be a alias
Agreed.
Asides the studs, there are also changes to the front of lion's mane made. And the front hollow studs seem different. Do the added reinforcements need to be modelled?
Asides the studs, there are also changes to the front of lion's mane made. And the front hollow studs seem different. Do the added reinforcements need to be modelled?
yes, should be a numbered variant instead of an alias -> subfile everything but the upper two studs and add solid studs here and hollow ones in the original.
while the sub is on the tracker, it could be reworked -> nose misses a condlines, inner stud extension tubes have holes around...
while the sub is on the tracker, it could be reworked -> nose misses a condlines, inner stud extension tubes have holes around...
2025-08-19 14:54:39
bump
2025-09-08 23:29:45
2025-09-09 18:06:31
Header Edits
description:
Brick 3 x 2 x 3 with Lion's Head Carving and Cutout with Solid Studs
to
Brick 3 x 2 x 3 with Lion Head Carving and Cutout with Solid Studs
