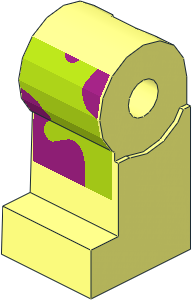

0 Minifig Leg Right with Magenta Flowers on Lime Shorts Pattern
0 Name: 3816cpx5.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Move down 12 units to align with hips
0 !HELP Move at z=1.25 relative to stud grid
0 !HELP 1 16 0 0 1.25 1 0 0 0 1 0 0 0 1 3817cpx5.dat
0 !HELP 1 16 0 28 0 1 0 0 0 1 0 0 0 1 stug-1x2.dat
0 BFC CERTIFY CCW
0 !CATEGORY Minifig
0 !KEYWORDS Bricklink 970c90pb02, Patrick Star, set 3816, Set 3818, Set 3827
0 !KEYWORDS Set 3830, Set 3832, Set 4982, Set Set 3833, SpongeBob SquarePantsShow file code:
