Unofficial File parts/s/45522s01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

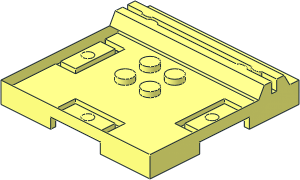

0 ~Plate 6 x 6 x 0.667 with 4 Studs and Card-holder without Text
0 Name: s\45522s01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2005-12-28 [PTadmin] Official Update 2005-01
0 !HISTORY 2007-09-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2020-05-25 [PTadmin] Update description
0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
0 !HISTORY 2025-05-24 [KnightOfTarenta] Completele rework, original by John Riley [jriley]Show file code:
0 // Top Studs
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug-2x2.dat
0 // Anti-Studs Bottom
1 16 50 4 0 -1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 4 -50 0 0 1 0 -1 0 1 0 0 stud3.dat
1 16 -50 4 0 1 0 0 0 -1 0 0 0 -1 stud3.dat
0 BFC INVERTNEXT
1 16 50 8 0 6 0 0 0 -4 0 0 0 16 box5.dat
0 BFC INVERTNEXT
1 16 0 8 -50 0 0 16 0 -4 0 6 0 0 box5.dat
0 BFC INVERTNEXT
1 16 -50 8 0 6 0 0 0 -4 0 0 0 16 box5.dat
0 // Card Holder Prongs
1 16 -36 -8 38 -4 0 0 0 8 0 0 0 1.9 2-4cylo.dat
1 16 36 -8 38 4 0 0 0 8 0 0 0 1.9 2-4cylo.dat
1 16 -44 -8 42 -4 0 0 0 8 0 0 0 -1.9 2-4cylo.dat
1 16 44 -8 42 4 0 0 0 8 0 0 0 -1.9 2-4cylo.dat
1 16 44 -8 42 4 0 0 0 1 0 0 0 -1.9 2-4chrd.dat
1 16 36 -8 38 4 0 0 0 1 0 0 0 1.9 2-4chrd.dat
1 16 -44 -8 42 -4 0 0 0 1 0 0 0 -1.9 2-4chrd.dat
1 16 -36 -8 38 -4 0 0 0 1 0 0 0 1.9 2-4chrd.dat
1 16 44 0 42 4 0 0 0 1 0 0 0 -1.9 2-4ndis.dat
1 16 36 0 38 4 0 0 0 1 0 0 0 1.9 2-4ndis.dat
1 16 -44 0 42 -4 0 0 0 1 0 0 0 -1.9 2-4ndis.dat
1 16 -36 0 38 -4 0 0 0 1 0 0 0 1.9 2-4ndis.dat
0 // Main Geometry
0 BFC INVERTNEXT
1 16 56 4 34 0 -112 0 -7.28 0 0 0 0 -4.186 tri3u1.dat
0 BFC INVERTNEXT
1 16 56 4 46 0 -112 0 -7.28 0 0 0 0 4.186 tri3u1.dat
1 16 0 -3.28 40 56 0 0 0 7.28 0 0 0 6 box3u10p.dat
0 BFC INVERTNEXT
1 16 0 16 58 0 0 20 0 -8 0 2 0 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 8 0 0 0 40 0 -4 0 20 0 0 box3u8p.dat
1 16 0 0 56.25 0 0 -60 0 1 0 3.75 0 0 rect.dat
1 16 -58 12 20 2 0 0 0 0 -4 0 1 0 rect.dat
1 16 58 12 20 -2 0 0 0 0 4 0 1 0 rect.dat
1 16 58 12 -20 -2 0 0 0 0 -4 0 -1 0 rect.dat
1 16 -58 12 -20 0 0 -2 4 0 0 0 -1 0 rect.dat
1 16 0 4 53.093 -56 0 0 0 -1 0 0 0 2.907 rect2p.dat
1 16 -48 6 20 8 0 0 0 0 2 0 -1 0 rect.dat
1 16 48 6 20 8 0 0 0 0 2 0 -1 0 rect.dat
1 16 20 12 -58 0 1 0 0 0 -4 -2 0 0 rect.dat
1 16 -20 12 -58 0 -1 0 -4 0 0 0 0 -2 rect.dat
1 16 54 -4 42 6 0 0 0 0 -4 0 1 0 rect.dat
1 16 -54 -4 42 6 0 0 0 0 -4 0 1 0 rect.dat
1 16 0 -4 42 0 0 40 4 0 0 0 1 0 rect3.dat
1 16 50 -4 38 0 0 -10 4 0 0 0 -1 0 rect.dat
1 16 0 -4 38 -32 0 0 0 0 -4 0 -1 0 rect2a.dat
1 16 -50 -4 38 0 0 -10 4 0 0 0 -1 0 rect3.dat
1 16 48 6 -20 0 0 8 2 0 0 0 1 0 rect.dat
1 16 20 6 -48 0 -1 0 2 0 0 0 0 8 rect.dat
1 16 0 6 -40 0 0 -20 2 0 0 0 -1 0 rect3.dat
1 16 -20 6 -48 0 1 0 2 0 0 0 0 -8 rect3.dat
1 16 -48 6 -20 0 0 -8 -2 0 0 0 1 0 rect.dat
1 16 0 0 38.95 0 0 32 0 1 0 -.95 0 0 rect1.dat
3 16 -56 16 56 -56 4 56 -56 4 50.186
3 16 56 4 50.186 56 4 56 56 16 56
3 16 60 0 60 60 0 52.5 60 16 60
3 16 60 0 42 60 0 38 60 16 20
3 16 -60 0 52.5 -60 0 60 -60 16 60
3 16 -56 4 34 -56 16 20 -56 16 56
3 16 -56 4 29.814 -56 4 20 -56 8 20
3 16 -60 -8 42 -60 -8 48 -60 0 42
3 16 -40 4 -20 -56 4 -56 -56 4 -20
3 16 -40 4 20 -56 4 20 -56 4 29.814
3 16 56 4 -20 56 4 -56 40 4 -20
3 16 56 4 29.814 56 4 20 40 4 20
3 16 44 8 16 40 8 20 56 8 20
3 16 40 8 -20 44 8 -16 56 8 -20
3 16 56 4 -56 56 4 -20 56 8 -20
3 16 20 16 -56 20 8 -56 56 16 -56
3 16 60 -8 42 60 -8 48 48 -8 42
3 16 48 -8 42 60 -8 48 40 -8 42
3 16 -60 -8 42 -48 -8 42 -60 -8 48
3 16 -40 -8 42 40 -8 42 60 -8 48
3 16 40 -8 38 60 -8 32 60 -8 38
3 16 -60 -8 32 -40 -8 38 -60 -8 38
3 16 60 -8 32 32 -8 38 -32 -8 38
3 16 -56 16 -20 -56 8 -20 -56 16 -56
3 16 -56 4 -56 -20 4 -56 -20 8 -56
3 16 -56 8 20 -40 8 20 -44 8 16
3 16 -56 8 -20 -44 8 -16 -40 8 -20
3 16 -20 8 -40 -16 8 -44 -20 8 -56
3 16 16 8 -44 20 8 -40 20 8 -56
3 16 32 -8 38 60 -8 32 40 -8 38
3 16 -40 0 38 -48 0 40.1 -60 0 38
3 16 40 0 38 44 0 40.1 40 0 39.9
3 16 60 -8 42 60 0 42 60 0 52.5
3 16 60 0 52.5 60 -8 48 60 -8 42
3 16 60 -8 38 60 -8 32 60 0 27.5
3 16 60 0 27.5 60 0 38 60 -8 38
3 16 -60 -8 38 -60 0 38 -60 0 27.5
3 16 -60 0 27.5 -60 -8 32 -60 -8 38
3 16 -60 0 42 -60 -8 48 -60 0 52.5
3 16 -60 0 52.5 -60 16 60 -60 0 42
3 16 -56 16 56 -56 4 50.186 -56 4 46
3 16 -56 16 56 -56 4 46 -56 4 34
3 16 -56 8 20 -56 16 20 -56 4 34
3 16 -56 4 34 -56 4 29.814 -56 8 20
3 16 56 8 20 56 4 20 56 4 29.814
3 16 56 4 29.814 56 16 20 56 8 20
3 16 56 4 34 56 16 20 56 4 29.814
3 16 56 4 50.186 56 16 56 56 4 46
4 16 60 -8 48 60 0 52.5 -60 0 52.5 -60 -8 48
4 16 -60 -8 32 -60 0 27.5 60 0 27.5 60 -8 32
4 16 -44 0 40.1 -40 0 39.9 -36 0 39.9 -40 0 40.1
4 16 -40 0 40.1 -36 0 39.9 -32 0 39.9 -40 0 42
4 16 32 0 39.9 40 0 42 -40 0 42 -32 0 39.9
4 16 -40 0 39.9 -44 0 40.1 -48 0 40.1 -40 0 38
4 16 48 0 40.1 44 0 40.1 40 0 38 60 0 38
4 16 44 0 40.1 40 0 40.1 36 0 39.9 40 0 39.9
4 16 32 0 39.9 36 0 39.9 40 0 40.1 40 0 42
4 16 -60 0 60 -20 8 60 -20 16 60 -60 16 60
4 16 -60 0 60 60 0 60 20 8 60 -20 8 60
4 16 20 16 60 20 8 60 60 0 60 60 16 60
4 16 -56 16 56 -56 16 20 -60 16 20 -60 16 60
4 16 -20 16 56 -56 16 56 -60 16 60 -20 16 60
4 16 60 16 20 56 16 20 56 16 56 60 16 60
4 16 20 16 56 20 16 60 60 16 60 56 16 56
4 16 60 16 20 60 16 60 60 0 52.5 60 0 42
4 16 60 0 38 60 0 27.5 60 8 20 60 16 20
4 16 60 8 20 60 0 27.5 60 0 -60 60 8 -20
4 16 60 16 -20 60 8 -20 60 0 -60 60 16 -60
4 16 -60 0 -60 -60 8 -20 -60 16 -20 -60 16 -60
4 16 -60 8 20 -60 8 -20 -60 0 -60 -60 0 27.5
4 16 -60 8 20 -60 0 27.5 -60 0 38 -60 16 20
4 16 -60 0 38 -60 0 42 -60 16 60 -60 16 20
4 16 20 16 56 56 16 56 56 4 56 20 8 56
4 16 20 8 56 56 4 56 -56 4 56 -20 8 56
4 16 -56 4 56 -56 16 56 -20 16 56 -20 8 56
4 16 56 16 56 56 16 20 56 4 34 56 4 46
4 16 60 8 -20 56 8 -16 56 8 16 60 8 20
4 16 44 8 -16 56 8 -16 60 8 -20 56 8 -20
4 16 20 16 -56 56 16 -56 60 16 -60 20 16 -60
4 16 60 16 -60 56 16 -56 56 16 -20 60 16 -20
4 16 60 0 -60 20 8 -60 20 16 -60 60 16 -60
4 16 60 0 -60 -60 0 -60 -20 8 -60 20 8 -60
4 16 -20 16 -60 -20 8 -60 -60 0 -60 -60 16 -60
4 16 -60 0 38 -48 0 40.1 -48 0 42 -60 0 42
4 16 48 0 42 48 0 40.1 60 0 38 60 0 42
4 16 -60 16 -60 -56 16 -56 -20 16 -56 -20 16 -60
4 16 -60 16 -60 -60 16 -20 -56 16 -20 -56 16 -56
4 16 -44 8 16 -56 8 16 -60 8 20 -56 8 20
4 16 -60 8 20 -56 8 16 -56 8 -16 -60 8 -20
4 16 -20 4 -56 -56 4 -56 -40 4 -20 -20 4 -40
4 16 40 4 -20 56 4 -56 20 4 -56 20 4 -40
4 16 20 4 -40 -20 4 -40 -40 4 -20 40 4 -20
4 16 -40 4 20 -56 4 29.814 56 4 29.814 40 4 20
4 16 60 8 20 56 8 16 44 8 16 56 8 20
4 16 44 8 16 44 8 -16 40 8 -20 40 8 20
4 16 56 4 -56 56 8 -20 56 16 -20 56 16 -56
4 16 20 4 -56 56 4 -56 56 16 -56 20 8 -56
4 16 -16 8 -44 -16 8 -56 -20 8 -60 -20 8 -56
4 16 16 8 -44 20 8 -56 20 8 -60 16 8 -56
4 16 -16 8 -56 16 8 -56 20 8 -60 -20 8 -60
4 16 -48 -8 42 -40 -8 42 60 -8 48 -60 -8 48
4 16 60 -8 32 -32 -8 38 -40 -8 38 -60 -8 32
4 16 -56 4 -20 -56 4 -56 -56 16 -56 -56 8 -20
4 16 -56 4 -56 -20 8 -56 -20 16 -56 -56 16 -56
4 16 -60 8 -20 -56 8 -16 -44 8 -16 -56 8 -20
4 16 -44 8 -16 -44 8 16 -40 8 20 -40 8 -20
4 16 20 8 -40 16 8 -44 -16 8 -44 -20 8 -40
2 24 -56 16 56 -56 4 56
2 24 -56 4 56 -56 4 50.186
2 24 56 4 56 56 16 56
2 24 56 4 56 56 4 50.186
2 24 -60 -8 48 60 -8 48
2 24 -60 -8 48 -60 0 52.5
2 24 60 -8 48 60 0 52.5
2 24 60 -8 32 -60 -8 32
2 24 60 -8 32 60 0 27.5
2 24 -60 -8 32 -60 0 27.5
2 24 60 0 -60 60 0 27.5
2 24 60 0 27.5 -60 0 27.5
2 24 -60 0 27.5 -60 0 -60
2 24 -60 0 -60 60 0 -60
2 24 -60 0 60 -60 16 60
2 24 60 16 60 20 16 60
2 24 -20 16 60 -60 16 60
2 24 -60 16 -60 -60 16 -20
2 24 -60 16 20 -60 16 60
2 24 -60 8 -20 -60 8 20
2 24 -60 0 38 -60 0 42
2 24 -56 4 -56 -56 4 -20
2 24 -56 4 20 -56 4 29.814
2 24 60 0 60 60 16 60
2 24 -60 0 -60 -60 16 -60
2 24 -56 4 -56 -56 16 -56
2 24 -56 16 -56 -56 16 -20
2 24 -56 16 20 -56 16 56
2 24 56 16 56 20 16 56
2 24 -20 16 56 -56 16 56
2 24 -56 4 20 -56 16 20
2 24 -20 8 -60 -20 8 -40
2 24 60 8 20 40 8 20
2 24 -40 8 20 -60 8 20
2 24 20 8 -60 20 8 -40
2 24 60 8 -20 40 8 -20
2 24 -40 8 -20 -60 8 -20
2 24 -56 4 -20 -56 16 -20
2 24 -60 -8 32 -60 -8 38
2 24 -60 -8 42 -60 -8 48
2 24 56 16 -56 56 16 -20
2 24 56 16 20 56 16 56
2 24 56 16 -56 20 16 -56
2 24 -20 16 -56 -56 16 -56
2 24 60 16 -60 60 16 -20
2 24 60 16 20 60 16 60
2 24 60 16 -60 20 16 -60
2 24 -20 16 -60 -60 16 -60
2 24 60 0 38 60 0 42
2 24 56 4 -20 56 16 -20
2 24 20 4 -56 20 16 -56
2 24 60 8 -20 60 8 20
2 24 56 4 -56 56 4 -20
2 24 56 4 20 56 4 29.814
2 24 20 8 -60 -20 8 -60
2 24 56 4 -56 20 4 -56
2 24 -20 4 -56 -56 4 -56
2 24 60 0 -60 60 16 -60
2 24 56 4 20 56 16 20
2 24 -20 4 -56 -20 16 -56
2 24 60 -8 32 60 -8 38
2 24 60 -8 42 60 -8 48
2 24 56 4 -56 56 16 -56
2 24 56 4 34 56 4 46
2 24 -56 4 46 -56 4 34Status
