Unofficial File parts/s/42236s01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

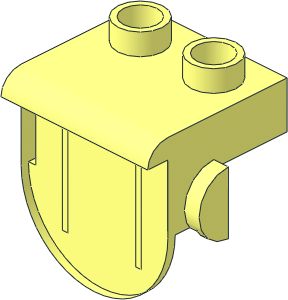

0 ~Duplo Plate 1 x 2 with Overhang - without Front Face
0 Name: s\42236s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2024-12-21 [WUIt] Added missing sides, corrected z-dimension of large reinforcement, removed T-junctions, subfiled for symmetryShow file code:
1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-1x2.dat
2 24 -40 10 -56 40 10 -56
2 24 -36 10 -53 36 10 -53
2 24 -40 24 20 40 24 20
1 16 0 12 -12.5 40 0 0 0 -12 0 0 0 32.5 box2-7.dat
0 BFC INVERTNEXT
1 16 0 14 -12.5 36 0 0 0 -10 0 0 0 28.5 box2-5.dat
1 16 0 6 -45 36 0 0 0 0 -4 0 1 0 rect3.dat
2 24 36 45 -41 36 4 -41
2 24 -36 4 -41 -36 45 -41
4 16 -36 45 -41 -36 4 -41 36 4 -41 36 45 -41
4 16 -36 10 -53 36 10 -53 40 10 -56 -40 10 -56
4 16 -40 24 20 40 24 20 36 24 16 -36 24 16
1 16 40 10 -45 0 -80 0 -10 0 0 0 0 -11 1-4cylo.dat
0 BFC INVERTNEXT
1 16 36 10 -45 0 -72 0 -8 0 0 0 0 -8 1-4cylo.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\42236s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\42236s02.dat
1 16 0 45 -45 -40 0 0 0 0 40 0 4 0 48\2-4cylo.dat
3 16 36 45 -41 0 85 -41 -36 45 -41Status
Awaiting Admin Review (CCN)
Current Votes:
Takeshi Takahashi [RainbowDolphin]
Rene Rechthaler [Blechtaler]
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Magnus Forsberg [MagFors]
initially submitted the part.
2025-05-27 16:08:05
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2025-05-27 16:34:35
Peter Blomberg [WUIt]
edited the part header.
2025-07-29 18:35:23
Peter Blomberg [WUIt]
made the following comment.
2025-09-20 11:26:05
Bump
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-09-20 18:11:00
Improved primitive matching as suggested
Rene Rechthaler [Blechtaler]
made the following comment.
2025-09-20 21:14:01
why the 2-4chrd? generates minor t-junk to the side walls...
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-09-21 10:25:03
Removed one more T-junction
Rene Rechthaler [Blechtaler]
posted a vote of Certify
2025-09-21 11:05:34
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2025-09-21 13:16:30
description:
~Duplo Plate 1 x 2 with Overhang - Halfto
~Duplo Plate 1 x 2 with Overhang - without Front FaceReplaced "-Half" in description with "-without Front Face"
