Unofficial File parts/u9044b.dat
Part Attributes:
File Header:

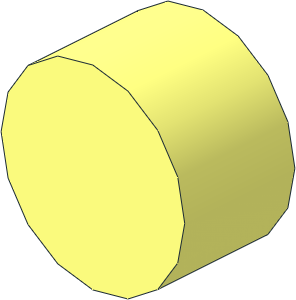

0 ~Magnet Cylindrical 6mm (15LDU)
0 Name: u9044b.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CMDLINE -c493
0 !HISTORY 2025-05-29 [Blechtaler] Rework for correct magnet size
Show contents
1 16 0 0 -7.5 12.5 0 0 0 0 12.5 0 15 0 4-4cylc.dat
1 16 0 0 7.5 12.5 0 0 0 0 12.5 0 -1 0 4-4disc.dat
Status:
Needs More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
corrected diameter (is now the same as 70023b)
2025-06-09 09:04:39
499.dat should get corrected...
this magnet got corrected from D13 to D12.5, you can use a 2.5x ring5 now
also magnet cup length has two variants: L6,6mm=16,5LDU and L7,6mm=19LDU (outside)
magnet cup bottom is always 1mm=2,5LDU
this magnet got corrected from D13 to D12.5, you can use a 2.5x ring5 now
also magnet cup length has two variants: L6,6mm=16,5LDU and L7,6mm=19LDU (outside)
magnet cup bottom is always 1mm=2,5LDU
